Aaeon UP Xtreme Quick Start Manual

What's in your kit?
1

Prepare your bootable USB drive

Please refer to https://wiki.up-community.org/Setup for instructions on how to prepare the bootable USB drive.
2

Connect hardware

Development workstation
a. Insert the USB drive before connecting the 12-60V DC adapter. Upon receiving power, the board will turn on automatically.
b. The board is set to automatically try to boot from the inserted USB drive.
c. You do not need to make changes to the BIOS settings to install the operating system.
For more info on the BIOS and how to change the BIOS password, see https://wiki.up-community.org
Caution: this is a high-performance board and may get hot during operation.
www.up-board.org /www.up-shop.org / www.up-community.org
The Powerful, Industrial, AI-Proof and expandable UP Xtreme is
an ultra-low voltage SBC powered by Intel® 8th Core CPU.

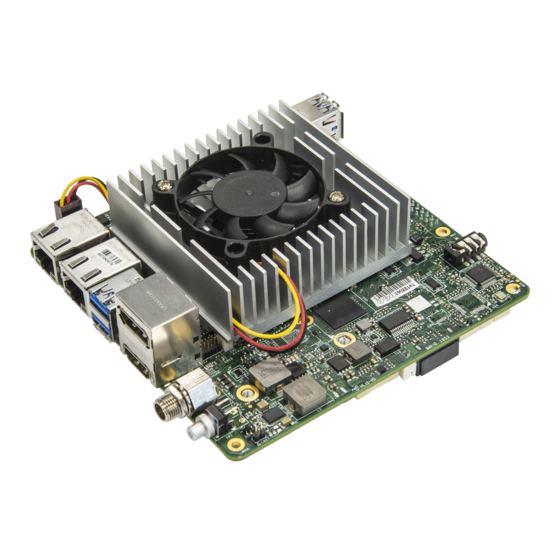

1x UP Xtreme board
1x active heatsink (attached)
1x RTC battery (attached)
Local router/network*
*Ethernet or WiFi

Quick Start Guide

You will need the following, not included:
• 12-60V Power adapter and power cord
• USB drive for OS installation
• A monitor with either HDMI or DisplayPort
• USB keyboard and mouse
• Ethernet cable or WiFi (purchased separately)
Mouse
ee
Monitor
UP Xtreme
Keyboard
