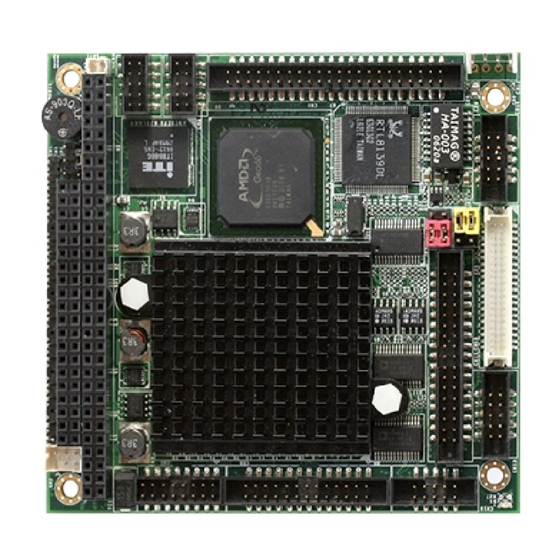

P C / 1 0 4 C P U M o d u l e
P F M - 5 4 0 I R e v . B
PFM-540I Rev.B
®
TM
AMD
Geode
LX 800 Processor
®
AMD
LX 800 + CS5536
®
Intel
82551ER/IT for 10/100Mbps
18/24-bit TFT LCD Panel
4 COM, 4USB
PFM-540I Rev.B Manual 3
rd
Ed.
December 22, 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFM-540I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aaeon PFM-540I

Summary of Contents for Aaeon PFM-540I

  • Page 1 P F M - 5 4 0 I R e v . B PFM-540I Rev.B ® Geode LX 800 Processor ® LX 800 + CS5536 ® Intel 82551ER/IT for 10/100Mbps 18/24-bit TFT LCD Panel 4 COM, 4USB PFM-540I Rev.B Manual 3 December 22, 2014...

  • Page 2: Copyright Notice

    AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
  • Page 3 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B Acknowledgments All other products’ name or trademarks are properties of their respective owners. Award is a trademark of Award Software International, Inc.

  • Page 4: Packing List

    44-pin IDE Cable x 1 Quick Installation Guide Utility CD PFM-540I Rev.B Note: The PFM-540I Rev.B WiTAS series include the full cable kit, because the special cables can be used in rigid environment. If any of these items should be missing or damaged, please...
  • Page 5 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B Contents Chapter 1 General Information 1.1 Introduction..............1-2 1.2 Features ..............1-3 1.3 Specifications ............
  • Page 6 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 2.18 IDE Connector (CN9) ..........2-14 2.19 COM1 Connector (CN10)........2-15 2.20 COM3 Connector (CN11)........2-16 2.21 Power Connector (CN12)........
  • Page 7 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B Appendix B I/O Information B.1 I/O Address Map ............B-2 B.2 Memory Address Map..........B-2 B.3 IRQ Mapping Chart ..........B-3 B.4 DMA Channel Assignments........B-3 Appendix C Mating Connector...
  • Page 8 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B Chapter General Information 1- 1 Chapter 1 General Information...

  • Page 9: Introduction

    PFM-540I Rev.B adopts an AMD Geode LX 800 processor that is more cost effective compared to other PC/104 CPU modules on the market. This model supports DDR 333 SODIMM Memory up to 1GB (DDR 400 optional).

  • Page 10: Features

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 1.2 Features AMD Geode LX 800 (500MHz) Processor Onboard DDR SDRAM, Max. 1GB for DDR333 and 512MB for DDR400 18/24-bit TFT LCD panel CFD Type I, ATA-33...

  • Page 11: Specifications

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 1.3 Specifications System Processor AMD Geode LX 800 (500MHz) Processor System Memory 200-pin Onboard DDR SDRAM SODIMM x 1, Max.
  • Page 12 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B Operating Temperature 32˚F~ 140˚F (0˚C ~ 60˚C); -4˚F~ 158˚F (-20˚C ~ 70˚C) (for WiTAS series products) Display Chipset...
  • Page 13 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B Chapter Quick Installation Guide Notice: The Quick Installation Guide is derived from Chapter 2 of user manual. For other chapters further installation...

  • Page 14: Safety Precautions

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 2.1 Safety Precautions Always completely disconnect the power cord from your board whenever you are working on it.

  • Page 15: Location Of Connectors And Jumpers

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 2.2 Location of Connectors and Jumpers Component Side 2- 3 Chapter 2 Quick Installation Guide...
  • Page 16 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B Solder Side 2 - 4 Chapter 2 Quick Installation Guide...

  • Page 17: Mechanical Drawing

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 2.3 Mechanical Drawing Component Side 2- 5 Chapter 2 Quick Installation Guide...
  • Page 18 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B Solder Side 2 - 6 Chapter 2 Quick Installation Guide...

  • Page 19: List Of Jumpers

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 2.4 List of Jumpers The board has a number of jumpers that allow you to configure your system to suit your application.

  • Page 20: List Of Connectors

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 2.5 List of Connectors The board has a number of connectors that allow you to configure your system to suit your application.

  • Page 21: Setting Jumpers

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B BAT1 Battery Connector CFD1 Type1 Compact Flash Slot SODIMM1 DDR1 SODIMM Slot 2.6 Setting Jumpers You configure your card to match the needs of your application by setting jumpers.

  • Page 22: Cfd Master/ Slave Selection (Jp1)

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 2.7 CFD Master/Slave Selection (JP1) Function Slave Master (Default) 2.8 RS-232 Ring/5V Selection (JP2) Function COM1 Ring (Default)

  • Page 23: Front Panel Connector (Cn1)

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 2.10 Front Panel Connector (CN1) Signal Power LED(+) Power LED(-) Speaker(+) Speaker(-) IDE LED(+) IDE LED(-) Reset(+)

  • Page 24: Ps2 Keyboard/Mouse Connector (Cn2)

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 2.11 PS2 Keyboard/Mouse Connector (CN2) Signal Signal KB_DATA KB_CLK MS_DATA MS_CLK 2.12 Optional Power Connector (CN3) Signal -12V 2.13 USB (3-4) Connector (CN4)

  • Page 25: Vga Display Connector (Cn5)

    DDCCLK 2.15 USB (1-2) Connector (CN6) Signal Signal USBD1- USBD1+ USBD2+ USBD2- 2.16 PC/104 Connector (CN7) As standard. Note: PFM-540I does not support ISA card with DMA or Master mode in PC/104 interface. 2- 13 Chapter 2 Quick Installation Guide...

  • Page 26: Lpt Port Connector (Cn8)

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 2.17 LPT Port Connector (CN8) Signal Signal #STROBE #AFD DATA0 #ERROR DATA1 #INIT DATA2 #SLIN...

  • Page 27: Com1 Connector (Cn10)

    DETECT ADDR0 ADDR2 #CS0 #CS1 HDDLED Note: The IDE interface on PFM-540I only supports two IDE devices. If you use a CF card, there is only one IDE device usable. 2.19 COM1 Connector (CN10) Signal Signal 2- 15 Chapter 2 Quick Installation Guide...

  • Page 28: Com3 Connector (Cn11)

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B RI/5V 2.20 COM3 Connector (CN11) Signal Signal 2.21 Power Connector (CN12) Signal +12V 2.22 COM 2 Connector (CN13) Signal...

  • Page 29: Ethernet Connector (Cn14)

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B RI/5V 2.23 Ethernet Connector (CN14) Signal Signal CHASSIS_GND CHASSIS_GND 2.24 LCD Connector (CN15) 24-bit TTL Signal Signal...
  • Page 30 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B GREEN6 GREEN7 RED0 RED1 RED2 RED3 RED4 RED5 RED6 RED7 CLOCK VSYNC HSYNC ENAVEE 18-bit TTL...

  • Page 31: Com4 Connector (Cn16)

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B RED0 RED1 RED2 RED3 RED4 RED5 CLOCK VSYNC HSYNC ENAVEE 2.25 COM4 Connector (CN16) Signal Signal 2.26 Battery Connector (BAT1)
  • Page 32 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B supported as long as the configuration requirements are met. Devices Max Memory Max GLIU GLCP 4C00000Fh GLMC...
  • Page 33 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B Below Table for China RoHS Requirements 产品中有毒有害物质或元素名称及含量 AAEON Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅...

  • Page 34: Bios Setup

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B Chapter Award BIOS Setup Chapter 3 Award BIOS Setup 3-1...

  • Page 35: System Test And Initialization

    3. The CMOS memory has lost power and the configuration information has been erased. The PFM-540I Rev.B CMOS memory has an integral lithium battery backup for data retention. However, you will need to replace the complete unit when it finally runs down.

  • Page 36: Award Bios Setup

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 3.2 Award BIOS Setup Awards BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration.
  • Page 37 Exit Without Saving Abandon all CMOS value changes and exit setup. You can refer to the “ AAEON BIOS Item Description.pdf” file in the CD for the meaning of each setting in this chapter. Chapter 3 Award BIOS Setup 3-4...
  • Page 38 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B Chapter Driver Installation 4 - 1 Chapter 4 Driver Installation...

  • Page 39: Software Drivers

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 4.1 Software Drivers This chapter describes the operation and installation of the display drivers supplied on the Supporting CD-ROM that are shipped with your product.

  • Page 40: Necessary To Know

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 4.2 Necessary to Know The instructions in this manual assume that you understand elementary concepts of MS-DOS and the IBM Personal Computer.

  • Page 41: Installing Vga Driver

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 4.3 Installing VGA Driver Win XP / Win XPe VGA Place the Driver CD-ROM into your CD-ROM drive and follow the steps below to install.

  • Page 42: Installing Aes Driver

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 4.4 Installing AES Driver Win XP / Win XPe Geode LX AES Crypto Place the Driver CD-ROM into your CD-ROM drive and follow the steps below to install.

  • Page 43: Installing Pci To Isa Bridge Driver

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 4.5 Installing PCI to ISA Bridge Driver Win XP / Win XPe System Place the Driver CD-ROM into your CD-ROM drive and follow the steps below to install.

  • Page 44: Installing Ethernet Driver

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B 4.6 Installing Ethernet Driver Place the Driver CD-ROM into your CD-ROM drive and follow the steps below to install.

  • Page 45: Watchdog Timer

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B Appendix Programming the Watchdog Timer Appendix A Programming the Watchdog Timer A-1...

  • Page 46: A.1 Programming

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B A.1 Programming PFM-540I Rev.B utilizes SCH3114-NU chipset as its watchdog timer controller. The SCH311X WDT ( Watch Dog Timer ) has a programmable time-out ranging from 1 to 255 minutes with one minute resolution, or 1 to 255 second resolution.
  • Page 47 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B Appendix A Programming the Watchdog Timer A-3...
  • Page 48 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B The following is a sample code to set WDT for 3 seconds. ;Runtime register I/O base address SUPERIO_GPIO_PORT EQU 800h...
  • Page 49 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B Appendix I/O Information Appendix B I/O Information B-1...

  • Page 50: B.1 I/O Address Map

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B B.1 I/O Address Map B.2 1 MB Memory Address Map Appendix B I/O Information B-2...

  • Page 51: B.3 Irq Mapping Chart

    P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B B.3 IRQ Mapping Chart B.4 DMA Channel Assignments Appendix B I/O Information B-3...
  • Page 52 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B Appendi Mating Connecotor C - 1 Appendix C Mating Connector...

  • Page 53: C.1 List Of Mating Connectors And Cables

    P F M - 5 4 0 I R e v . B C.1 List of Mating Connectors and Cables The table notes mating connectors and available cables. Connector Function Mating Connector Available Cable AAEON Cable Label Vendor Model no Front Neltron 2226A-XX...
  • Page 54 P C / 1 0 4 C P U M o d u l e P F M - 5 4 0 I R e v . B CN16 COM4 Keentop 1014 Serial Port Cable 1701100207 Connector Series BAT1 Battery DF14-MS-1 Connector .25C...
