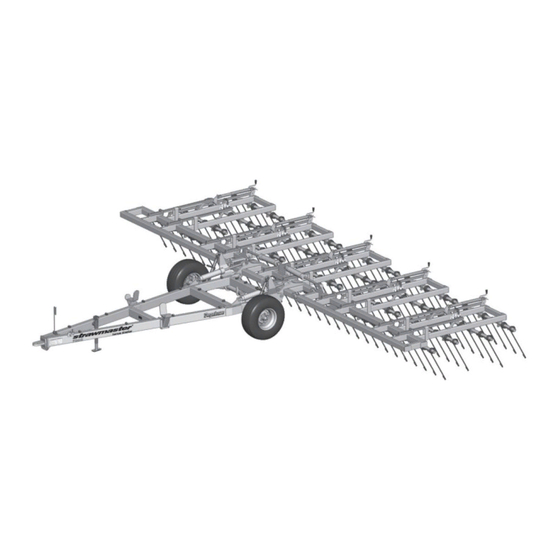

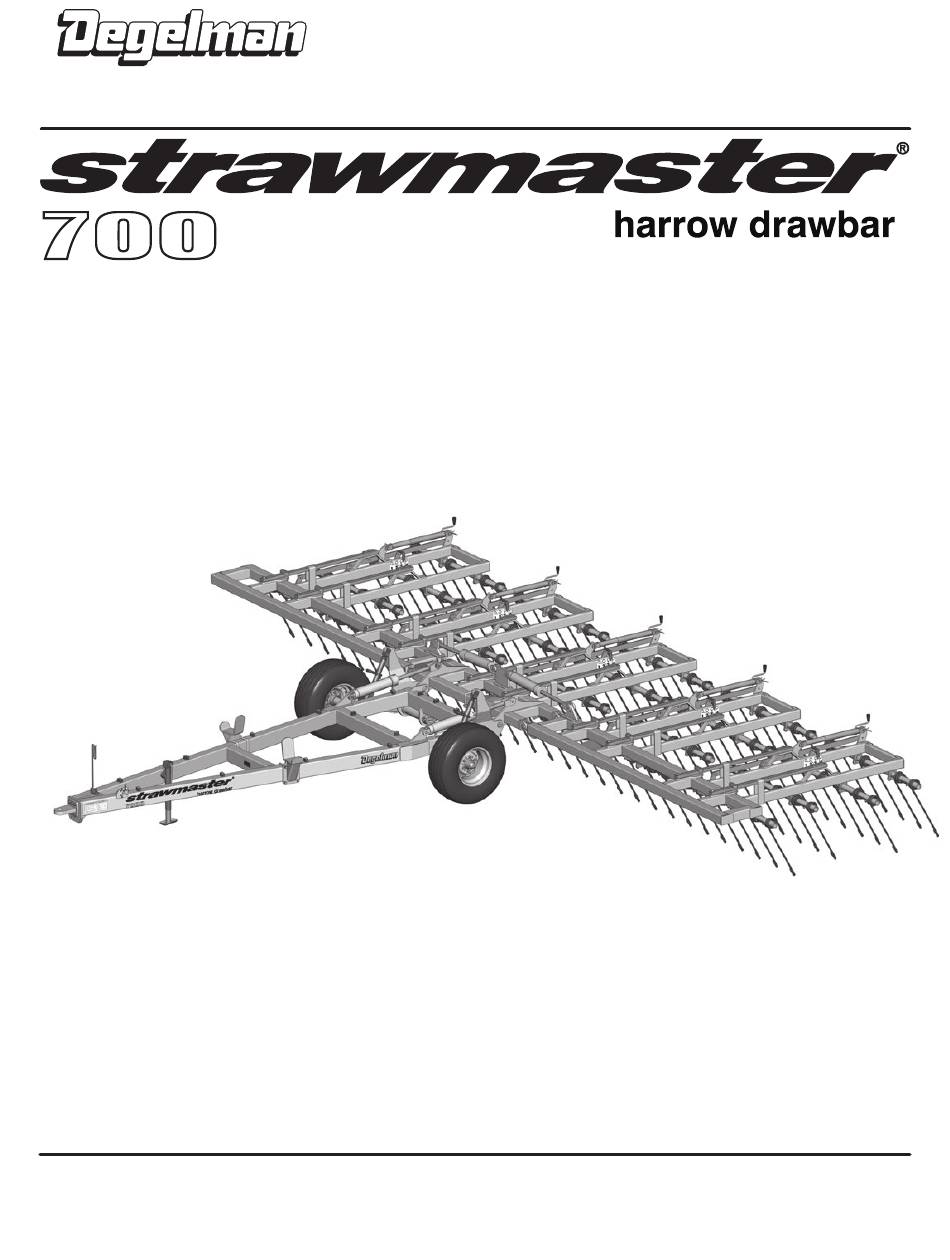

OPERATOR MANUAL
& PARTS CATALOG
STRAWMASTER
142781 v1.2
700 NARROW
®
22' & 30'
Advertisement
Table of Contents
Related Manuals for Degelman STRAWMASTER 700 Series
Summary of Contents for Degelman STRAWMASTER 700 Series
- Page 1 OPERATOR MANUAL & PARTS CATALOG 142781 v1.2 STRAWMASTER 700 NARROW D E G E L M A N I N D U S T R I E S ® B O X 8 3 0 - 2 7 2 I N D U S T R I A L D R I V E , 22’...
-
Page 3: Table Of Contents
TABLE OF CONTENTS - OPERATORS SECTION Introduction Safety Safety Information Operation Overview / Preparation Hook-Up Convert to Field Position Suggested Tine Angle Settings Height Adjustment Transporting Service & Maintenance Service Repair Storage Troubleshooting TABLE OF CONTENTS - PARTS SECTION Warranty IMPORTANT: D E G E L M A N I N D U S T R I E S... -
Page 5: Introduction
Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your Degelman Dealer if you need assistance, information, or additional copies of the manual. OPERATOR ORIENTATION - The directions left, right, front and rear, as mentioned throughout the manual, are as seen from the tractor drivers’... -
Page 6: Safety
Safety Why is SAFETY important to YOU? 3 BIG Reasons: •Accidents Can Disable and Kill •Accidents Are Costly •Accidents Can Be Avoided SAFETY ALERT SYMBOL The Safety Alert Symbol means: he Safety Alert Symbol identifies important safety ® messages applied to the Strawmaster and in this ATTENTION! manual. - Page 7 GENERAL SAFETY YOU are responsible for the safe operation and 1. Read and understand the Operator’s ® maintenance of your Degelman Strawmaster Manual and all safety signs before YOU must ensure that you and anyone else who operating, maintaining or adjusting ®...
- Page 8 Safety OPERATING SAFETY MAINTENANCE SAFETY 1. Read and understand the Operator’s Manual 1. Review the Operator’s Manual and all safety and all safety signs before using. items before working with, maintaining or ® operating the Strawmaster 2. Stop tractor engine, set park brake, remove ignition key and wait for all moving parts to 2.
- Page 9 Safety HYDRAULIC SAFETY TRANSPORT SAFETY 1. Always place all tractor hydraulic controls in 1. Read and understand ALL the information in the neutral before dismounting. Operator’s Manual regarding procedures and ® SAFETY when operating the Strawmaster 2. Make sure that all components in the hydraulic the field/yard or on the road.
-
Page 10: Operation
Operation TO THE NEW OPERATOR OR OWNER BRIEF OVERVIEW OF OPERATION ® The Degelman Strawmaster is designed for • Operating speed will depend on tractor effective straw management, weed control, horsepower, environmental conditions and each herbicide application, raking flax residue and particular operation. - Page 11 Operation BREAK-IN PRE-OPERATION CHECKLIST Although there are no operational restrictions on It is important for both personal safety and ® trawmaster maintaining the good mechanical condition of the S when it is new, there are some the machine that this pre-operational checklist be mechanical checks that must be done to ensure followed.
-
Page 12: Hook-Up
Operation - Hook-Up HOOK-UP / UNHOOKING ® The Strawmaster should always be parked on a level, dry area that is free of debris and foreign objects. Follow this procedure to hook-up: 1. Clear the area of bystanders and remove foreign objects from the machine and working area. -
Page 13: Convert To Field Position
Operation - Convert to Field Position TO CONVERT TO FIELD POSITION IMPORTANT Ensure there is lots of room behind and to the sides. 1. Disengage the hydraulic transport lock. 3. Extend the Wing Fold Cylinders to completely open both wing sections. 2. -
Page 14: Suggested Tine Angle Settings
Operation - Suggested Tine Angle Settings REMEMBER WHEN OPERATING: The following lists suggested tine angle settings. Since there are no standard angles for running the tines, • straw should be dry. the operator may adjust the tine angles as required to •... -
Page 15: Height Adjustment
Operation - Height Adjustment If trailer height is set correctly it will If trailer is too high... If trailer is too low... be even with harrows and... Front & back tines apply equal pressure Front tines not applying pressure Front tines applying too much pressure NOTE: Stawmasters can have either manual or hydraulic adjustment. -
Page 16: Transporting
Operation TO CONVERT TO TRANSPORT POSITION TRANSPORT 4. Engage the transport lock by closing the Follow this procedure when preparing to transport: hydralic valve. IMPORTANT Clear the area of bystanders, especially small children, before converting into transport configuration. 1. Retract the “Auto-Fold Cylinders” to raise the harrow sections to about 3/4 of the way up. -
Page 17: Service & Maintenance
Service & Maintenance SERVICE Maintenance Checklist GREASING Use an SAE multipurpose grease with extreme Dailly - 8 Hours pressure (EP) performance. Also acceptable is an • Hydraulic Fluid Leaks SAE multipurpose lithium base grease. • Damaged Hoses 1. Use only a hand-held grease gun for all greasing. - Page 18 Service & Maintenance TORQUE TORQUE SPECIFICATIONS HARDWARE/HOSE SPECIFICATIONS Unless otherwise stated: CHECKING BOLT TORQUE all hardware • Hardware - Hex, Plated GR5 UNC or P8.8 (metric) The tables shown below give correct torque values • Hydraulic Hoses - 3/8 & 1/2, ends come with for various bolts and capscrews.
-
Page 19: Repair
Service & Maintenance WHEEL HUB REPAIR COMMON WHEEL AND IMPORTANT Be sure to block up unit HUB COMPONENTS securely before removing tires. Spindle Dust Seal Inner Cone DISASSEMBLY Inner Cup 1. Carefully pry off dust cap. Outer Cup 2. Remove cotter pin from nut. Outer Cone Washer 3. - Page 20 Service & Maintenance Service & Maintenance HYDRAULIC CYLINDER REPAIR 5. Take the plastic removal ring from the seal kit: PREPARATION Types of Cylinders a) Straighten the ring and remove any kinks or When cylinder repair (Wire Ring / Threaded Head) excessive curl to make installation easier and is required, clean off prevent it from falling out.
- Page 21 Service & Maintenance Service & Maintenance REPAIRING A THREADED HEAD CYLINDER REPAIRING A THREADED HEAD CYLINDER Set Screw Style Locking Ring Style Barrel Barrel Set Screw Locking Gland Ring Lock Piston U-Cup Wear Dual Seal Seal Piston Ring O-Rings Seal Wiper Piston Seals Seal...
- Page 22 Service & Maintenance - Tine Replacement TINE REPLACEMENT Note: Tines must be replaced when worn down DISASSEMBLY: to 16 in. or less in length. Tines may be replaced Follow this procedure one pipe row at a time so while the machine is in transport position, or field pipes do not get mixed up, or number each pipe position.
-
Page 23: Storage
142383 - Caution, 6 Points (1) down time at the beginning of next season. 142833 - Valve, Lock (1) 142009 - Degelman, 3-3/4” x 16-1/4” (3) Since the unit can be used in extremely adverse conditions during the season, the machine should be... -
Page 24: Troubleshooting
Troubleshooting TROUBLESHOOTING In the following section, we have listed some of the problems, causes and solutions that you may encounter. If you encounter a problem that is difficult to solve, even after having read through this troubleshooting section, please call your local dealer or distributor. Before you call, have this manual and the serial number from your unit ready. -
Page 25: Table Of Contents - Parts Section
Parts Section - Table of Contents General Overview Trailer Components Trailer Wheel Components Center Frame Components & Cylinder Wing Frame & Harrow Sections Harrow Section Components Hydraulic Hose Routing Light Kit Components Warranty 6’ Harrow Section 6’ Harrow Section 6’ Harrow Section 6’... - Page 26 123092 - Cylinder, Auto-fold - 3-1/2 x 16 x 1-1/2 (2) 117110 - Wear bushing (2) ( Cylinder detail pg. 24 ) 243415 - Trailer (1) 142009 - Decal, Degelman - 3-3/4x 16-1/4 (2) 4.5” 132030 - Jack, Sidewind - 5,000 lbs (1)
- Page 27 Trailer Wheel Components TRAILER WHEEL COMPONENTS 142009 - Decal, Degelman - 3-3/4x 16-1/4 (1) 132016 - Ratchet jack (2) c/w 132032 - Pin, 2-1/8 lg (2) 118829 - Hair pin (4) 243500 - Pin, wire lock (1) 243375 - Rachet jack handle (1) (Jack handle storage location.)
- Page 28 Center Frame Components CENTER FRAME ASSEMBLY 123092 - Cylinder, Wing-fold - 3-1/2” x 16”x 1-1/2” (2) 243435 - Center Frame Assembly (1) 117110 - Wear bushing (2) 117087 - Wear bushing (2) 118402 - Nut, 1/4” (2) 118533 - Lock washer, 1/4” (2) 118555 - Flat washer, 1/4”...
- Page 29 Wing Frame & Harrow Sections WING FRAME ASSEMBLIES 30’ (9.0m) Strawmaster 700 Model 243450 - Wing Frame Assembly, 12ft - RH (shown) (1) 243451 - Wing Frame Assembly, 12ft - LH (opposite) (1) 117087 - Wear bushing (1) 117087 - Wear 142556 - Decal, Red bushing (1) Reflector - 2”...
- Page 30 Harrow Section Components TYPICAL HARROW-FRAME MOUNTING COMPONENTS 118083 - Bolt, 3/4” x 7-1/2” (1) 118094 - Bolt, 5/8” x 4” (2) 118516 - Flat washer, 3/4” (1) 650250 - Cast Shank Bolt Bar (1) (Note: Flat side faces up.) 118422 - Lock nut, 3/4”...
- Page 31 Harrow Section Components 8’ Harrow Section 8’ HARROW SECTION - PIPES 244280 - Pipe, 17-1/2” offset (1) 244281 - Pipe, 23-1/4” offset (1) 244282 - Pipe, 14-3/4” offset (1) 244283 - Pipe, 20-1/2” offset (1) 6’ Harrow Section 6’ HARROW SECTION - PIPES 244265 - Pipe, 17-1/2”...
- Page 32 Harrow Sections & Components HYDRAULIC FITTINGS/COMPONENTS 141581 - Quick Coupler-m, 3/4 ORB (2) 141515 - Connector, 3/4 - JIC-m x ORB (4) 141527 - Tee, 3/4 - ORB x JIC-m x JIC-m (2) 141504 - 90° Elbow, 3/4 - JIC-m x ORB (2) 141518 - 90°...
- Page 33 Auto-Fold Cylinder Hydraulic Hose Routing HYDRAULIC FITTINGS/COMPONENTS 141581 - Quick Coupler-m, 3/4 ORB (2) 141515 - Connector, 3/4 - JIC-m x ORB (2) 141501 - Tee, 3/4 JIC-m (2) 141504 - 90° Elbow, 3/4 - JIC-m x ORB (4) 141518 - 90° Elbow, 3/4 - JIC-m x JIC-f-sw (2) 122668 - Orifice, 3/4-16 UNF (2) WING FOLD CYLINDER HOSE ROUTING 123092 - Cylinder, 3-1/2”...
- Page 34 Light Kit Components Electrical Layout & Components Wiring Assembly - 22’ & 30’ 244153 - Wiring Harness (1) (4-wire light with brake function) 7 Pole 7 POLE PLUG Plug WHITE Ground BROWN Tail/Running YELLOW Left High FL GREEN Right High FL Brake (viewed from back of plug) Connectors-LH...
-
Page 35: Warranty
Re-torque of fastening hardware, Hydraulic fluid purities, drive train alignments, and clutch operation) 3. If parts not made or supplied by Degelman have been used in the connection with the unit, if, in the sole judgement of Degelman such use affects its performance, safety, stability or reliability. -
Page 36: B O X
It is the retail customer’s responsibility to deliver the product to the authorized Degelman dealer, from whom he purchased it, for service or replacement of defective parts, which are covered by warranty. Repairs to be submitted for warranty consideration must be made within forty-five days of failure.
