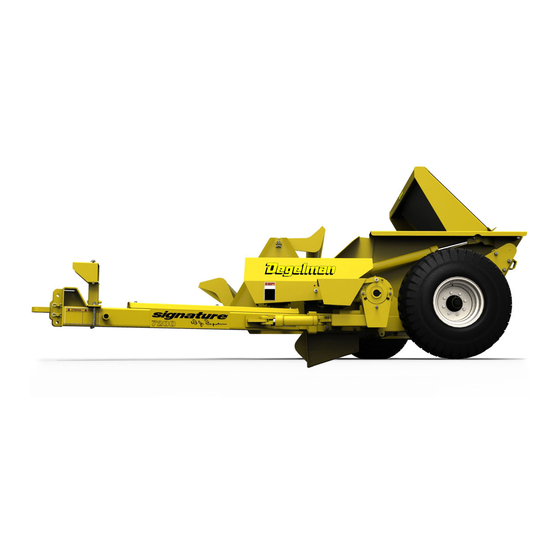

Summary of Contents for Degelman signature 6000

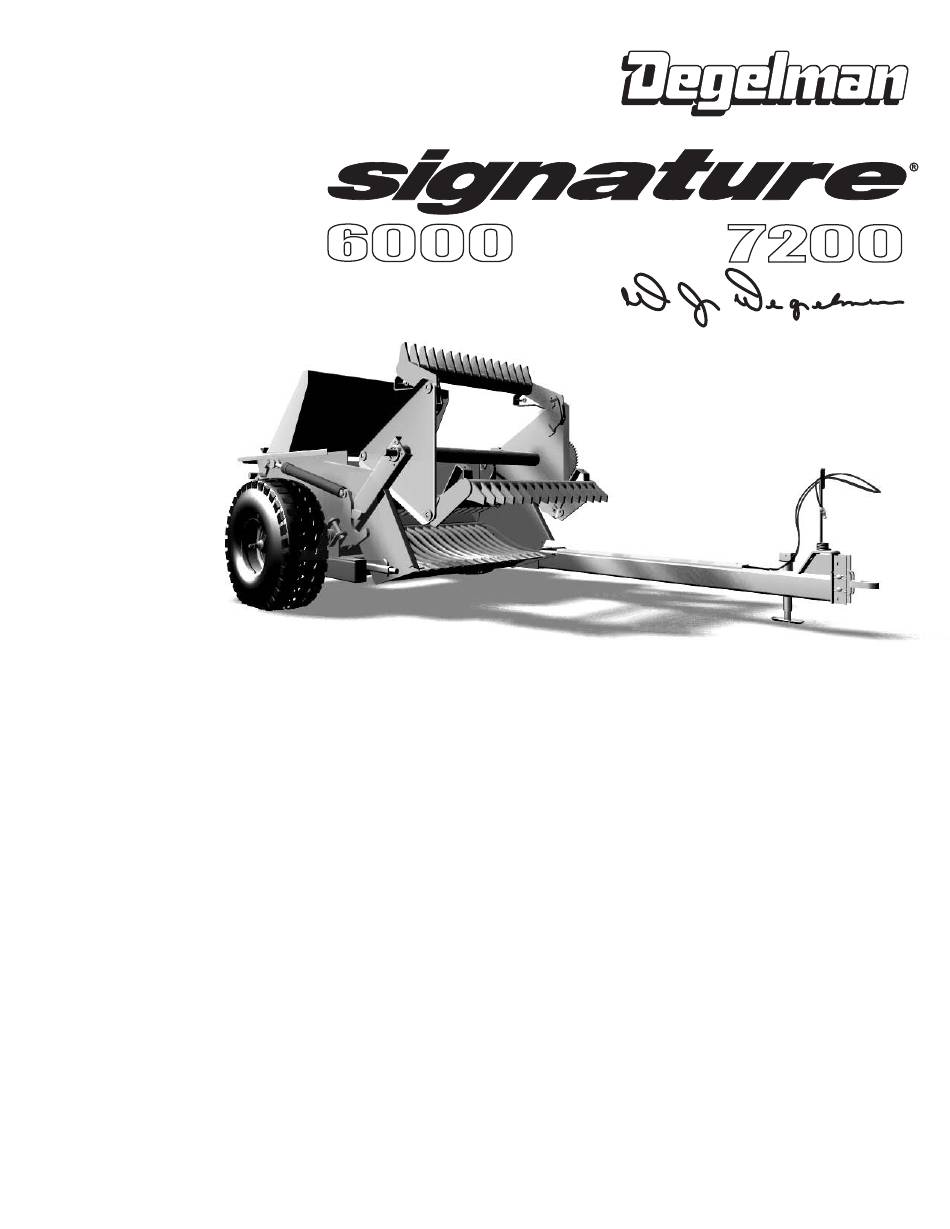

  • Page 1 MANUAL 142584...
  • Page 3 You should 306 543-4447 543-2140 fx be aware of agricultural & industrial safety especially related to heavy equipment. If you degelman@degelman.com are not familiar with safety procedures then you should get training. www.degelman.com Improper use will result in maiming or death.
  • Page 4 142584 37, 38-41 Frame hitchpole & wheel To holes in bottom Hydraulic hitch Comes with hitchpole, discard for PTO PTO hitch 1 241501 6000 Frame 241602 7200 2 241529 6000 Hitchpole 241672 7200 3 118627 Bolt 1 x 9 drilled 4 241542 Hose clip bent 5 118701...
  • Page 5 142584 7 241670 Transport pin 8 3/4 8 118817 Hair pin 3 3/4 9 241533 Hitch hydraulic 241218 Hitch PTO 10 121944 Pin 4 5/16 11 118882 Hair pin 2 3/4 12 132005 Sidewind jack 13 241631 Hose guard 14 118177 Bolt 5/16 x 3/4 15 118530 Lock washer 5/16...
  • Page 6 142584 Base unit Two right hand holes not used...
  • Page 7 1 241081 6000 Hopper box 142584 241621 7200 14 241133 6000 Hose guard 2 241130 LH pivot plate 241630 7200 Hose guard 241128 15 118177 Bolt 5/16 x 3/4 3 118024 Bolt 5/8 x 1 1/2 16 118530 Lock washer 5/16 4 118508 Lock washer 5/8 17 118538...
  • Page 8 142584 Grill...
  • Page 9 142584 241062 6000 Grill 241611 7200 6000 1 241065 Tooth 15,19 7200 2 240927 Cast tip 15,19 3 118857 Roll pin 15,19 4 117134 Bearing unit INA or 117018 Bearing unit NTN c/w... 5 117136 Locking collar INA or 117016 Locking collar NTN 6 118358 Setscrew allen 3/8...
  • Page 10 241097 Reel & paddle 6000 241099 Reel & shaft 241106 Paddle 142584 118801 Square hd 1 x 2 3/4 EFF 118838 Cotter pin 1/4 x 1 1/2 Reel & paddle 143005 Spring 6000 118241 Eyebolt 3/4 x 5 1/4 118422 Lock nut 3/4 122046 Sprocket #80...
  • Page 11 142584...
  • Page 12 142584 Reel & paddle 7200...
  • Page 13 142584 7200 - #80 Chain Models (Serial #'s up to 23066, 23074 & 23075) 7200 - #100 Chain Models (Serial #'s 23067 to 23073, & above 23096) 241634 Reel & paddle 7200 (#80 Chain Model) 241764 Reel & paddle 7200 (#100 Chain Model) 241636 Reel &...
  • Page 14 142584 Rockguard 241145 6000 Rockguard 241675 7200 241146 6000 Frame 241676 7200 240497 6000 Rubber flap 241680 7200 240495 6000 Bolt bar 241681 7200 240496 6000 Angle bolt bar 241679 7200 118136 Bolt 3/8 x 1 1/2 12/14 Qty for 6000 & 7200 118503 Lock washer 3/8 12/14...
  • Page 15 142584...
  • Page 16 142584 Hydraulics 122732 3 x 31 x 1 1/2 Cylinder Hopper box dump 122751 Barrel Common to all 122558 Lock ring models; hydraulic & 122556 Open cap PTO drive 118441 Locknut 7/8 UNF Unitorq. 122563 Piston 122759 Rod & clevis 122755 Clevis pin 118796...
  • Page 17 142584 Ports face down Quick Connector coupler 141504 El 3/4 m JIC x ORB 141501 Tee 3/4 JIC m 141514 Nipple m 3/4 JIC x 1/2 NPT 141576 Quik coupler 1/2 NPT 126522 Hose 3/8 x 36 126552 Hose 3/8 x 144 (6000) 126531 Hose 3/8 x 156 (7200) 126643...
  • Page 18 142584 Hose blocks 1, 2, 4, 5, 6, 7 1, 2, 3 1, 2, 4, 5, 6, 7 1, 2, 4, 6, 7 Common to both (Dump cyl) 1, 2, 3 1, 2, 4, 5, 6, 7 1, 2, 4, 6, 7 1, 2, 4, 5, 6, 7 1, 2, 4, 5, 6, 7 Common to both...
  • Page 19 142584 1, 2, 4, 6, 7 PTO drive 1, 2, 4, 6, 7 Additional qty needed for PTO Dump cylinders: common to both drive systems 3, 4 or 10 780279 Top plate 3/8 hose clamp 780278 Hose clamp 3/8 1 or 8 118144 Bolt 5/16 x 1 1/2 118928...

  • Page 20: Pto Drive

    142584 PTO drive 1 240541 Chain tightener, #80 Chain 241770 Chain tightener, #100 Chain c/w... 2 143027 Tension spring 3 240544 Frame, #80 241772 Frame, #100 4 122001 Idler sprocket, #80 122006 Idler sprocket, #100 5 240548 Thd rod 3/4 x 4 1/2, #80 241780 Bolt 1 x 5 1/2 - Grooved, #100 6 222041...
  • Page 21 142584 6000 - #80 Chain All Models Gearbox 7200 - #80 Chain Models (Serial #'s up to 23066, 23074 & 23075) 119053 Small output cap 7200 - #100 Chain Models Gasket Bolt 3/8 x 1 1/4 (Serial #'s 23067 to 23073, & above 23096) 119179 Pinion seal carrier 119012...
  • Page 22 142584 PTO drive 119400 Drive shaft c/w..119403 Yoke/splined shaft 119129 Cross & bearing 119262 Grease fitting 119408 Slider tube 118336 Grease fitting 119405 Outer guard 119404 Repair kit 119406 Inner guard 119407 Repair kit Friction clutch Adjusting choices: Non-adjusting...

  • Page 23: Friction Clutch

    142584 Friction clutch 119402 Clutch, adjusting c/w... 119278 Yoke/plate 119608 Hub plate Bronze bushing 119280 Friction disc 118112 Bolt 1/2 x 3 118420 Lock nut 1/2 Adjusting 119282 Pressure plate 119283 Compression spring 119284 Spring guide washer 118139 Bolt 3/8 x 4 118417 Lock nut 3/8 Non-adjusting...
  • Page 24 Every 50 hrs 142584 PTO DRIVE Bearing stand 1 117023 Bearing unit c/w..117010 Pillow block casting 117090 Bearing insert 117024 Lock collar 2 241227 Bearing stand top 3 118014 Bolt 1/2 x 2 4 118512 Flat washer 1/2 5 118504 Lock washer1/2 6 118405 Nut 1/2...
  • Page 25 142584 Slider shaft Four grease points Every 50 hrs 119855 Slider shaft 119850 Bar half - Outer slider 119857 Outer shield 119856 Yoke & shaft 119129 Cross & bearing 119331 Yoke 119357 Spring lock, repair kit 119262 Grease fitting 119428 Repair kit, nylon 119852 Tube half - Inner slider...
  • Page 26 Decals and reflectors, general 142009 Degelman decal 16 1/4 142356 Caution decal 10 pts safety 142280 Reflector tape red 2x6 142357 Warning missing shield decal 142584 142360 Warning jammed paddle PTO shields 142156 Slow moving vehicle 142365 Important grill prep decal...
  • Page 27 Hydraulic drive 142584 mounting Hyd motor shield 226632 Ross hydraulic motor 240548 Threaded rod 3/4 x 4 1/2 c/w... 118435 Jam nut 3/4 118491 Slotted nut 1 UNF 226600 143111 Flexible hose holder 226617 Shaft 118024 Bolt 5/8 x 1 1/2 226627 Seal kit 118514...
  • Page 28 Two places; Bolt 1/2 x 4 Lock nut 1/2 142584 Make sure transport pin is engaged in transport position. Keeps grill from dropping Sixteen places; Wheel bolt 9/16 x 2.14 Jam nut 9/16 Mount wheels to hub with valve stems on the outside.
  • Page 29 142584 • Fasten rockguard to box General assembly- • Run hoses for dump for both hydrualic cylinders & PTO drives • Move hitchpole into field position and back to ensure there is enough play in hoses Four places: Bolt 1/2 x 1 1/2 Lock washer 1/2 Nut 1/2 Rockguard...
  • Page 30 Four places: Capscrew 1/2 x 2 142584 Dbl hex lock nut 1/2 Hydraulic Drive motor installation • Bolt motor mount Ports to motor Ports on same side as • Slip sprocket over large bushing spindle Slotted nut 1 Cotter pin 1/2 •...
  • Page 31 Shims 142584 • Align the two sprockets with a straight edge • Fit the edges of the shims between bushing & lugs • Note how many shims go to the left and the right Straight edge • Reinstall motor mount with shims •...
  • Page 32 142584 Hydraulic Drive 1/4 slack motor installation • Wrap chain around sprockets • Join ends with connector link (the offset link is used to add additional length) • Turn the large sprocket until there is the least amount of slack on the chain (A large sprocket will have minor Chain...
  • Page 33 142584 Brkt & shield bushings • Loosely bolt on shield brkt's slotted holes onto Two places: Bolt 1/2 x 1 1/2 reel support frame Flat washer 1/2 Lock washer 1/2 • Fit brkt & shield's bushings and bolt • Align holes on Bolt 1/2 x 1 shield &...
  • Page 34 142584 PTO Drive installation • Attach gearbox holder to frame Gearbox holder Four places: Bolt 3/4 x 2 Lock washer 3/4 Nut 3/4 • Attach gearbox & Bearing bearing to holder • Clean out shaft Gearbox hole throughly Big plate and lube on outside •...
  • Page 35 142584 Lock collar • Tap shaft and key into gearbox • Slip lock collar on Shaft & key Sprocket tapered bushing & • Continue through step key bearing • Slip sprocket, tapered bushing & stepped key over end of shaft •...
  • Page 36 142584 Tapered Bearing bushing lock collar • Align the two PTO Drive sprockets with a installation straight edge • Tighten the bolts on the tapered bushing to fix the position • Tighten bearing lock collar Straight edge • Install chain tightener Pin 5 5/16 Hair pin 2 3/4...
  • Page 37 142584 • Run chain around sprockets & through chain tightener • Join with connector link • Adjust chain tightener nut on eyebolt to allow 1/2" slack TORQUE all hardware Nut on eyebolt 1/2" of play...
  • Page 38 142584 • Fill with gearbox oil SAE #90 level with PTO Drive lower port installation • Replace port plugs • Install relief vent and top port reducer plug Lower port • Attach pillow block bearing & Two places: Bolt 1/2 x 2 holder Flat washer 1/2 (2) Lock washer 1/2...
  • Page 39 142584 • Fasten clutch to gearbox shaft Bolt 1/2 x 3 Lock nut 1/2 TORQUE all hardware • Install crossjoint into yoke of small slider shaft Wire • Fasten bolt and washer to hold, tie and twist wire through bolt Bolt Washer Bolt 1/2 x 1/4 drilled...
  • Page 40 142584 PTO Drive installation Bolt 1/2 x 1 1/4 Lock washer 1/2 Flat washer 1/2 Bushing • Install gearbox shield • Install driveline shield Bolt 5/8 x 1 1/2 Take flexible holder Lock washer 5/8 off hitchpole, bolt Flat washer 5/8 Nut 5/8 onto shield 3/8 hose clamp...
  • Page 41 142584 • Loosely bolt on shield brkt's onto reel support frame • Fit brkt & shield's bushings and bolt • Align holes on shield & frame & install bolt • Tighten shield brkt Two places: Bolt 1/2 x 1 1/2 Flat washer 1/2 Lock washer 1/2 Brkt &...
  • Page 42 Safety WHILE OPERATING • Stay well back from machine when KILLED, INJURED operating. Rocks can come flying out 142584 of box or SAFE? You are responsible for your own YOUR CHOICE safety. If you don’t know basic • Turn to the left when turning. Turning agriculture &...
  • Page 43 HAZARDS High pressure 142584 fluid Rotating WEAR PROTECTIVE GEAR part DO NOT TEST FOR LEAKS WITH HAND Jammed paddle KEEP SHIELDS ON USE POLE TO PRY OUT STUCK ROCKS Thrown rock Rotating part P T O Rotating • KEEP CLEAR OF MACHINE ESPECIALLY driveline IN FRONT...

  • Page 44: Torque Settings

    TORQUE TORQUE SETTINGS Grade Imperial 142584 Size all hardware ft lb Record your serial number & model 5/16 7/16 9/16 6000 or Hydraulic or Metric thread specs 7200 M Thread pitch All hardware; Hex head, Plated , Gr.5 UNC Metric Hoses;...

  • Page 45: Service And Maintenance

    Service & Maintenance 142584 8 hr Check & tighten PTO driveline Check Hopper box pivots Lube Roller chain 25 hr Gearbox oil level Chain tightener Roller chain Annually Reel flange bearings Chain tightener Wheel bearings Nipple underneath Pillow block bearings Hopper box pivot nipple Nipple at...
  • Page 46 OPERATIONS P T O TRACTOR DRAWBAR & HOOKUP 142584 • Locate the drawbar in the central position to prevent swinging Your tractor • Use a drawbar pin with a mechanical MINIMUM TRACTOR 70 hp; retainer such as a Klick pin 100 hp for hilly conditions •...
  • Page 47 142584 Hitchpole into field position Put grill in field position • Take out hitchpole transport pin • Swing hitchpole into field position • Retract dump cylinders to • Replace pin take weight off grill • Move red transport pin forward •...

  • Page 48: Reel Speed

    REEL SPEED OPERATIONS The purpose of the reel is to sweep the rocks from the front of the grill into the hopper box. The spring loaded paddles should keep the grill framework clear of rocks. There is a danger that the paddles will 142584 catch the rocks and throw them forward if the reel speed is too fast.
  • Page 49 The rock picker can 142584 pick rocks from 1 3/4 to 24" JAMMING Small rocks and debris can get stuck between the grill, paddle or frame jamming the reel. Unplugging • Lower grill to ground • Stop tractor engine • Place controls in neutral •...

  • Page 50: Warranty

    WARRANTY Degelman Industries Warrants this product to the original owner for a period of one (1) year parts and labour and two (2) years parts from the date of purchase. All matters related to the warranty of our products must be handled through the authorized selling dealer.
