Summary of Contents for Omron STC-LBS132POE-SWIR

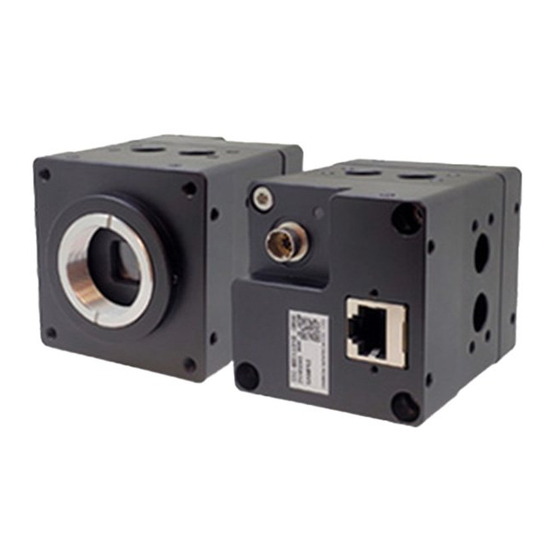

- Page 1 No.21S102-02 GigE Vision SWIR CMOS PoE Camera STC-LBS132POE-SWIR SWIR (1.3M / Product Specifications and User’s Guide STC-LBS132POE-SWIR 1/71 Product Specifications and User’s Guide...
-
Page 2: Table Of Contents
7.2.6.1 External Trigger Signal Delay (Positive polarity trigger signal) ........... 22 7.2.6.2 External Trigger Signal Delay (Negative polarity trigger signal)..........22 7.2.6.3 Measured External Trigger Signal Delay through Opt-Isolated Port (Line 0) ......23 STC-LBS132POE-SWIR 2/71 Product Specifications and User’s Guide... - Page 3 Loading Camera Settings ....................... 36 Loading Camera Settings when Camera Power is on ..............36 Camera Settings Initialization ......................36 11.2 Frame rate ..........................37 11.3 Gain ............................37 Analog Gain ............................. 37 STC-LBS132POE-SWIR 3/71 Product Specifications and User’s Guide...
- Page 4 11.16 LUT Control .......................... 50 11.17 Defective pixel correction ....................51 11.18 Counter And Timer Control ....................52 11.19 Event Control ........................53 11.20 Chunk Control ........................54 11.21 Action Control ........................54 11.22 IEEE1588 ..........................55 STC-LBS132POE-SWIR 4/71 Product Specifications and User’s Guide...
- Page 5 12.11 EventControl ........................65 12.12 UserSetControl ........................65 12.13 ChunkDataControl....................... 66 12.14 ActionControl ........................66 12.15 File AccessControl ......................67 12.16 TestControl .......................... 67 12.17 TransportLayerControl ....................... 68 13 Revision History ....................70 STC-LBS132POE-SWIR 5/71 Product Specifications and User’s Guide...
- Page 6 Do not use with out of power voltage range Do not wrong wiring. that is specified in the specifications for this This will cause of fire or malfunction. camera. This will cause of fire, electrification or malfunction. STC-LBS132POE-SWIR 6/71 Product Specifications and User’s Guide...
- Page 7 Caution Do not disassemble or repair the camera. It is turn off the camera when maintaining or This will cause of fire, electrification or inspecting the camera. malfunction. This will cause of electrification. STC-LBS132POE-SWIR 7/71 Product Specifications and User’s Guide...
- Page 8 In EU, it is necessary to dispose of accordance with WEEE directive. [Security Measures, Anti-virus protection] Warning Install the latest commercial-quality antivirus software on the computer connected to the control system and maintain to keep the software up-to-date. STC-LBS132POE-SWIR 8/71 Product Specifications and User’s Guide...
-
Page 9: Product Precautions
Japanese government. When this product is to be taken outside of countries after imported from Japan, please confirm export and trade control laws of country and adopt the required procedures. STC-LBS132POE-SWIR 9/71 Product Specifications and User’s Guide... -
Page 10: Warranty
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. STC-LBS132POE-SWIR 10/71 Product Specifications and User’s Guide... -
Page 11: Specifications
No.21S102-02 Specifications Electronic Specifications Product STC-LBS132POE-SWIR Image Sensor 1/2” 1.3M Progressive SWIR CMOS (SONY: IMX990) Shutter Type Global Shutter Active Picture Elements 1,280 (H) x 1,024 (V) Cell Size 5.0 (H) x 5.0 (V) µm Scanning Mode Full scanning (Full resolution) / ROI... - Page 12 Please adjust incident light with adjusting lens iris or other way to avoid strong light is not incident on the image sensor of camera. STC-LBS132POE-SWIR 12/71 Product Specifications and User’s Guide...
-
Page 13: Spectral Sensitivity Characteristics
Spectral Sensitivity Characteristics Acquisition image samples Wafer White pin Blue pin Red pin With visible light with 1450nm light with visible light with 1450nm light Salt Sugar Baking soda with visible light with 1450nm light STC-LBS132POE-SWIR 13/71 Product Specifications and User’s Guide... -
Page 14: Mechanical Specifications
No.21S102-02 Mechanical Specifications Model Number STC-LBS132POE-SWIR Dimensions 58 (W) x 58 (H) x 85 (D) mm (*1) Optical Filter No Optical Filter Optical Center Accuracy Positional accuracy in Horizontal and Vertical directions: +/- 0.4 mm Rotational accuracy of Horizontal and Vertical: +/- 1.5 deg. -
Page 15: Connector Specifications
Yellow light: Blinking 1 Gbps Transferring 100 Mbps Transferring Please use a 1 Gbps supported NIC, Network Switcher and Ethernet cable. Check the setting of NIC and Network Switcher being used is “1 Gbps transferring”. STC-LBS132POE-SWIR 15/71 Product Specifications and User’s Guide... -
Page 16: Power/Io Connector
7) Line 0 8) Line 2 9) User Output 1 10) User Output 2 11) Timer 0 Active 12) Software Signal 0 13) Software Signal 1 14) Logic Block 0 15) Pulse Per Second STC-LBS132POE-SWIR 16/71 Product Specifications and User’s Guide... - Page 17 Selected signal for “Software Signal 1” at “Software Signal Control” is out. 14) Logic Block 0 “Logic Block 0” signal is out. 15) Pulse Per Second “Pulse / second” signal (50% Duty, 1 Hz interval) is out. STC-LBS132POE-SWIR 17/71 Product Specifications and User’s Guide...
-
Page 18: Opto-Isolated Input
Opto-isolated input The camera has current limiting circuit on camera. The current limiting resistor does not necessary. Opto-isolated output It is necessary to have current limit control to keep less than 50 mA. STC-LBS132POE-SWIR 18/71 Product Specifications and User’s Guide... -
Page 19: Open Collector Gpio
The camera inside circuit may get damage if accidentally uses as output without current limiting resistor. For safety, please add current limiting resistor even use as input. a) Open Collector GPIO uses as output b) Open Collector GIPO uses as input STC-LBS132POE-SWIR 19/71 Product Specifications and User’s Guide... -
Page 20: Input And Output Signal Timing (Hardware Trigger)
Line0, 2 FramTriggerInternal SensorReadOut Timer0 Parameter “ TimerDelay ” on GenICam Parameter “ TimerDuration ” on GenICam (*1) Please refers “External Hardware Trigger Input Delay” for more details about “External hardware trigger delay” STC-LBS132POE-SWIR 20/71 Product Specifications and User’s Guide... -
Page 21: Input And Output Signal Timing (Software Trigger)
Parameter “ TriggerDelay ” on GenICam Trigger delay Exposure Parameter “ ExposureTime ” on GenICam Image out Output signals FrameTriggerWait ExposureActive FramTriggerInternal SensorReadOut Timer0 Parameter “ TimerDelay ” on GenICam Parameter “ TimerDuration ” on GenICam STC-LBS132POE-SWIR 21/71 Product Specifications and User’s Guide... -
Page 22: External Hardware Trigger Input Delay
7.2.6.1 External Trigger Signal Delay (Positive polarity trigger signal) External Trigger Signal External Trigger Signal with camera internal delay Tdelay 7.2.6.2 External Trigger Signal Delay (Negative polarity trigger signal) External Trigger Signal External Trigger Signal with camera internal delay Tdelay STC-LBS132POE-SWIR 22/71 Product Specifications and User’s Guide... -
Page 23: Measured External Trigger Signal Delay Through Opt-Isolated Port (Line 0)
2 μseconds 2 μseconds +24 V 61 μseconds 65 μseconds Note. Please use this measured delay as reference. The delay time may fluctuate depending on photo coupler variation, pull-up voltage and pull-up resister. STC-LBS132POE-SWIR 23/71 Product Specifications and User’s Guide... -
Page 24: Measured External Trigger Signal Delay Through Open Collector Gpio Port (Line 2)
+24 V 2.2 μseconds 2 μseconds +24 V 0.8 μseconds 2 μseconds Note. Please use this measured delay as reference. The delay time may fluctuate depending on transistor variation, pull-up voltage and pull-up resister. STC-LBS132POE-SWIR 24/71 Product Specifications and User’s Guide... -
Page 25: Dimensions
No.21S102-02 Dimensions Unit: mm STC-LBS132POE-SWIR 25/71 Product Specifications and User’s Guide... -
Page 26: Sensor Information
No.21S102-02 Sensor Information Pixel Transferring Image Pixel1 of Pixel2 of Data Data Pixel (m) of Data: mth pixel being transferred STC-LBS132POE-SWIR 26/71 Product Specifications and User’s Guide... -
Page 27: 10 Camera Operational Modes
No.21S102-02 10 Camera Operational Modes 10.1 Normal Mode Timing Exposure Time Expose Image out * The exposure time for each line is same. STC-LBS132POE-SWIR 27/71 Product Specifications and User’s Guide... -
Page 28: Pulse Width Trigger Mode
The expose period is low states of trigger signal. Timing Trigger signal (Positive polarity) Expose Image out Note: The exposure time is active pulse duration of trigger signal. Please refers “Exposure Timing” for more details. STC-LBS132POE-SWIR 28/71 Product Specifications and User’s Guide... -
Page 29: Exposure Timing With Positive Polarity Trigger Signal
Note 2: Please refers “External Hardware Trigger Input Delay” for more details about “External hardware trigger delay”. Note 3: Please refers “External Hardware Trigger Input Delay” for shortest active pulse duration of trigger signal. STC-LBS132POE-SWIR 29/71 Product Specifications and User’s Guide... -
Page 30: Exposure Timing With Negative Polarity Trigger Signal
Note 2: Please refers “External Hardware Trigger Input Delay” for more details about “External hardware trigger delay”. Note 3: Please refers “External Hardware Trigger Input Delay” for shortest active pulse duration of trigger signal. STC-LBS132POE-SWIR 30/71 Product Specifications and User’s Guide... -
Page 31: Edge Preset Trigger Mode
The exposure duration time is based on preset exposure setting stored by camera setting communication. Timing Trigger signal (Positive polarity) Expose Image out Note: The exposure time is “Exposure Time” on GenICam setting. STC-LBS132POE-SWIR 31/71 Product Specifications and User’s Guide... -
Page 32: Exposure Timing With Positive Polarity Trigger Signal
“LineDebounceTime” setting time. Please input trigger signal has more than “LineDebounceTime” time active pulse width trigger signal. Note 2: Please refers “External Hardware Trigger Input Delay” for more details about “External hardware trigger delay”. STC-LBS132POE-SWIR 32/71 Product Specifications and User’s Guide... -
Page 33: Exposure Timing With The Negative Polarity Trigger Signal
“LineDebounceTime” setting time. Please input trigger signal has more than “LineDebounceTime” time active pulse width trigger signal. Note 2: Please refers “External Hardware Trigger Input Delay” for more details about “External hardware trigger delay”. STC-LBS132POE-SWIR 33/71 Product Specifications and User’s Guide... -
Page 34: Edge Preset Trigger Mode (Trigger Input While Image Is Out)
However, if the trigger signal input while exposing with previous trigger signal or output image, trigger signal is disregard. Timing Trigger signal (Positive polarity) Expose Image out Note: The exposure time is “Exposure Time” on GenICam setting. STC-LBS132POE-SWIR 34/71 Product Specifications and User’s Guide... -
Page 35: 11 Camera Functions
ROM that is selected at Settings “UserSetSelector”. Caution: Default Selector “UserSetSave” CANNOT execute when “Default” was selected at “UserSetSelector” UserSetSelector Setting Procedure 1. Selects “UserSetX” at “UserSetSelector” 2. Execute “UserSetSave” STC-LBS132POE-SWIR 35/71 Product Specifications and User’s Guide... -
Page 36: Loading Camera Settings
Set “UserSetX” or “Default” at “UserSetDefault” Camera Settings Initialization Please follow the procedure in below for camera settings put back to factory default settings. Setting Procedure Selects “Default” at “UserSetSelector”. Executes “UserSetLoad”. Select “UserSetX” at “UserSetSelector”. Executes “UserSetSave”. STC-LBS132POE-SWIR 36/71 Product Specifications and User’s Guide... -
Page 37: Frame Rate
GainSelector IEnumeration Type Selects control gain DigitalAll: Digital Gain DigitalGain IFloat Type Digital Gain Range: 0 to 255 Default: 0 Digital Gain Formula Gain (x times) = 1 + (“Digital Gain” / 128) STC-LBS132POE-SWIR 37/71 Product Specifications and User’s Guide... -
Page 38: Exposure Time
The lower limit of signal is clamped at this setting level. The signal does not lower than this. GenICam Parameters BlackLevel IFloat Type Black Level Range: 12bits output: 0 to 240 10bits output: 0 to 60 8bits output: 0 to 15 Default: 0 STC-LBS132POE-SWIR 38/71 Product Specifications and User’s Guide... -
Page 39: Alc (Auto Light Control)
Default: 1 * Sets 10 on Region 4 only Sets the weight for each weight area. AutoLuminancePeak IInteger Type Importance ratio for the brightness peak at ALC control. Range: 0 to 255 Default: 0 STC-LBS132POE-SWIR 39/71 Product Specifications and User’s Guide... -
Page 40: Alc Control Method
The brightness of image maintains to “AutoLuminanceTarget” with AGC and auto shutter functions. If AGC and auto shutter are ON for ALC control, auto shutter function maintains brightness first. The AGC function maintains brightness if brightness cannot maintain to “AutoLuminanceTarget” with auto shutter. STC-LBS132POE-SWIR 40/71 Product Specifications and User’s Guide... -
Page 41: Bloomingreductionmode
Range: 0 to 148 Default: 0 This cannot be set greater than “GainAutoLimitMax” GainAutoLimitMax IFloat Type Maximum gain for AGC [GainSelector] Range: 0 to 148 Default: 148 This cannot be set smaller than “GainAutoLimitMin” STC-LBS132POE-SWIR 41/71 Product Specifications and User’s Guide... -
Page 42: Auto Shutter
3. Sets “GainAutoLimitMin” and “GainAutoLimitMax” when using AGC function. 4. Sets “Continuous” for “ExposureAuto” when using auto shutter function. 5. Sets “ExposureAutoLimitMin” and “ExposureAutoLimitMax” when using auto shutter function. 6. Sets “Auto Luminance Target”. STC-LBS132POE-SWIR 42/71 Product Specifications and User’s Guide... -
Page 43: Black Level Correction
In this case, please adjust digital gain to saturate image. Please adjust digital gain while checking image quality. 11.8 Gamma correction The gamma correction is changeable. GenICam Parameters Gamma IFloat Type Gamma correction Range: 0 to 4.0 Default: 1.0 STC-LBS132POE-SWIR 43/71 Product Specifications and User’s Guide... -
Page 44: Roi (Region Of Interest)
Default: 0 Adjustable steps: 8 The ROI region settings are below: OffsetY Height ROI region OffsetX Width Width / Height setting range STC-LBS132POE-SWIR Width Setting range: 8 to 1,280 pixels Default: 1,280 pixels Setting steps 8 pixels Height Setting range:... -
Page 45: Pixel Format
Sets binning on vertical direction Selection: 1: Disable Binning, 2: x2 Binning Default: Disable Binning (*1) Binning cannot change horizontal only or vertical only. Selection applies for horizontal and vertical. (*2) Binning and decimation cannot use simultaneously. STC-LBS132POE-SWIR 45/71 Product Specifications and User’s Guide... -
Page 46: Decimation
(*1) Decimation cannot change horizontal only or vertical only. Selection applies for horizontal and vertical. (*2) Binning and decimation cannot use simultaneously. (*3) It is necessary to change exposure time (to shorten exposure time), to increase frame rate when using Decimation. STC-LBS132POE-SWIR 46/71 Product Specifications and User’s Guide... -
Page 47: Trigger
Trigger Delay Timing Generator Software Signal 0 Software Signal 1 Sensor Logic Block 0 “ AND ” “ OR ” Trigger Source The trigger signal is selectable by GenICam commands. TriggerSource: select trigger type STC-LBS132POE-SWIR 47/71 Product Specifications and User’s Guide... -
Page 48: Image Flip
FFC correction result is displaying “Success” is displaying when DSNU correction is correctly done. “Failure” is displaying when power is off or error occurred while proceeding DSNU correction. In this case, please do DSNU correction process again. STC-LBS132POE-SWIR 48/71 Product Specifications and User’s Guide... -
Page 49: Ffc Function Procedure
PRNU (FFCSelect:Gain, FFCEnable:True) * Note5: The image may not saturate when proceeding DSNU correction and enabling DSNU. In this case, please adjust digital gain to saturate image. Please adjust digital gain while checking image quality. STC-LBS132POE-SWIR 49/71 Product Specifications and User’s Guide... -
Page 50: Lut Control
Range: 0 to 4,095 LUT Value IInteger Type The output value for input value that specifies by index Range: 0 to 4,095 4095 4095 LUT Index e.g. LUT usage (low brightness level enhancement) STC-LBS132POE-SWIR 50/71 Product Specifications and User’s Guide... -
Page 51: Defective Pixel Correction
Horizontal position for selected index for process defective pixel correction Range: 0 to 1,279 Default: 0 PixelCorrectionY IInteger Type Vertical position for selected index for process defective pixel correction Range: 0 to 1,023 Default: 0 STC-LBS132POE-SWIR 51/71 Product Specifications and User’s Guide... -
Page 52: Counter And Timer Control
Reference signal selection to reset counter Source CounterReset IEnumeration Type Polarity of reference signal to reset counter Activation CounterReset ICommand Type Reset switch Activate as switch when selecting “Software” at “CounterResetSource” CounterValue IInteger Type Returns number of counter STC-LBS132POE-SWIR 52/71 Product Specifications and User’s Guide... -
Page 53: E.g. Event Control
“Line 0 Input Rising Edge”, “Line 0 Input Falling Edge”, “Line 2 Input Rising Edge” and “Line 2 Input Falling Edge” Event Notification IEnumeration Type Event notification ON / OFF selection On: Enable event notification Off: Disable event notification STC-LBS132POE-SWIR 53/71 Product Specifications and User’s Guide... -
Page 54: Chunk Control
ActionGroupMask IInteger Type Select camera to apply action command Logical AND of Group Mask of camera and Group Mask of action command is 1 for any bit of 32bits, camera executes action command. STC-LBS132POE-SWIR 54/71 Product Specifications and User’s Guide... -
Page 55: Ieee1588
Defined delay between master device and slave device by comparing these messages. If time difference between master device and slave device is occurred, adjust internal clock of slave device to synchronize to master device. Synchronize clock regularly to correcting time drift. STC-LBS132POE-SWIR 55/71 Product Specifications and User’s Guide... - Page 56 Timestamp, action command will be scheduled automatically and each camera start exposing at same time. Action Control setting is required when action command generating. IEEE1588 PTP supported Switching HUB M: Master S: Slave e.g. PTP configuration STC-LBS132POE-SWIR 56/71 Product Specifications and User’s Guide...
-
Page 57: 12 Genicam Command
Sub minor version of the Transport Layer of the device. DeviceMaxThroughput Maximum bandwidth of the data that can be streamed out of the device. DeviceLinkSelector Selects which Link of the device to control. STC-LBS132POE-SWIR 57/71 Product Specifications and User’s Guide... - Page 58 Resets the current value of the device timestamp counter. TimestampLatch Latches the current timestamp counter into Timestamp Latch Value. TimestampLatchValue Returns the latched value of the timestamp counter. DeviceUserMemory Read / Write the user data from / to the non-volatile memory. STC-LBS132POE-SWIR 58/71 Product Specifications and User’s Guide...
-
Page 59: Imageformatcontrol
Selects which test pattern generator is controlled by the Test Pattern feature. TestPattern Selects the type of test pattern that is generated by the device as [TestPatternGeneratorSelector] image source. TestPatternInputValue Test Pattern Input Value [TestPatternGeneratorSelector] STC-LBS132POE-SWIR 59/71 Product Specifications and User’s Guide... -
Page 60: Acquisitioncontrol
Sets the automatic exposure mode when Exposure Mode is Timed. ExposureAutoLimitMin Determine the lower limit of exposure time when Exposure Auto is set to Continuous. ExposureAutoLimitMax Determine the upper limit of exposure time when Exposure Auto is set to Continuous. STC-LBS132POE-SWIR 60/71 Product Specifications and User’s Guide... -
Page 61: Analogcontrol
Controls the analog black level as an absolute physical value. DigitalGainOffsetMode Digital Gain Offset Mode is enabled. AnalogGainOffsetMode AnalogGainOffsetMode is enabled. BlackLevelCorrection Black Level Correction Mode is enabled. Gamma Controls the gamma correction of pixel intensity. STC-LBS132POE-SWIR 61/71 Product Specifications and User’s Guide... -
Page 62: Lutcontrol
Selects which Correction is controlled by the FFC features. FFCEnable [FFCSelector] Activates the selected FFC. FFCType [FFCSelector] Returns the FFC type. FFCAuto [FFCSelector] Sets the automatic FFC mode. FFCValueStatus [FFCSelector] Returns the FFC Value Status. STC-LBS132POE-SWIR 62/71 Product Specifications and User’s Guide... -
Page 63: Digitaliocontrol
Selects if the selected Logic Block Input source signal is inverted. [LogicBlockSelector] [LogicBlockInputSelector] 12.9 SoftwareSignalControl Name Description SoftwareSignalSelector Selects which Software Signal features to control. SoftwareSignalPulse Generates a pulse signal that can be used as a software trigger. [SoftwareSignalSelector] STC-LBS132POE-SWIR 63/71 Product Specifications and User’s Guide... -
Page 64: Counterandtimercontrol
Selects the source of the trigger to start the Timer. TimerTriggerActivation [TimerSelector] Selects the activation mode of the trigger to start the Timer. TimerValue [TimerSelector] Reads or writes the current value (in microseconds) of the selected Timer. STC-LBS132POE-SWIR 64/71 Product Specifications and User’s Guide... -
Page 65: Eventcontrol
Save the User Set specified by User Set Selector to the non-volatile memory of the device. UserSetDefault Selects the feature User Set to load and make active by default when the device is reset. STC-LBS132POE-SWIR 65/71 Product Specifications and User’s Guide... -
Page 66: Chunkdatacontrol
Provides the mask that the device will use to validate the action on reception of the action protocol message. ActionGroupKey [ActionSelector] Provides the key that the device will use to validate the action on reception of the action protocol message. STC-LBS132POE-SWIR 66/71 Product Specifications and User’s Guide... -
Page 67: File Accesscontrol
Represents the file operation result. [FileSelector] [FileOperationSelector] FileSize [FileSelector] Represents the size of the selected file in bytes. 12.16 TestControl Name Description TestPendingAck Tests the device's pending acknowledge feature. TestEventGenerate Generates a Test Event. STC-LBS132POE-SWIR 67/71 Product Specifications and User’s Guide... -
Page 68: Transportlayercontrol
Controls the Persistent subnet mask associated with the Persistent IP [GevInterfaceSelector] address on this logical link. GevPersistentDefaultGateway Controls the persistent default gateway for this logical link. [GevInterfaceSelector] GevGVCPExtendedStatusCodesSelector Selects the GigE Vision version to control extended status codes for. STC-LBS132POE-SWIR 68/71 Product Specifications and User’s Guide... - Page 69 Controls the destination IP address of the selected stream channel to which a GVSP transmitter must send data stream or the destination IP address from which a GVSP receiver may receive data stream. GevSCSP [GevStreamChannelSelector] Indicates the source port of the stream channel. STC-LBS132POE-SWIR 69/71 Product Specifications and User’s Guide...
-
Page 70: 13 Revision History
Note: Product specifications would be changed without notification. GigE Vision is trademark of A3 (Association for Advancing Automation). GenICam is trademark of EMVA. Other company names and product names in this document are trademarks of their respective owners. STC-LBS132POE-SWIR 70/71 Product Specifications and User’s Guide... - Page 71 No.21S102-02 19F, Ebina Prime Tower 9-50, Chuo 2 chome Ebina-city, Kanagawa 243-0432 Japan TEL 81-46-236-6660 FAX 81-46-236-6661 URL https://www.sentech.co.jp/ STC-LBS132POE-SWIR 71/71 Product Specifications and User’s Guide...
