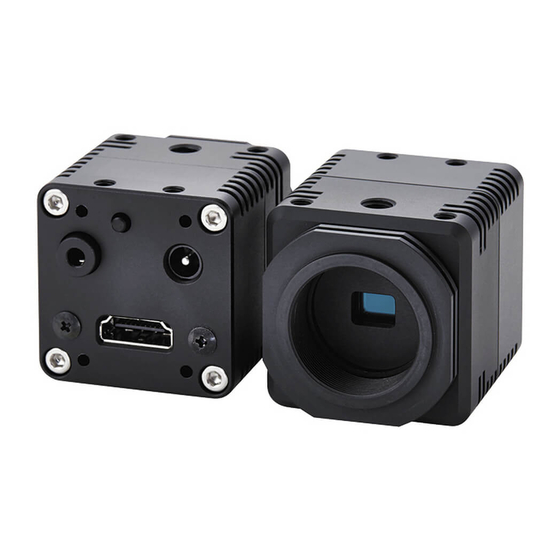

Omron STC-HD213DVN-B Product Specifications And User's Manual

16:9 format 1080p color cmos board camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
16:9 Format 1080p
STC-HD213 Series Color CMOS Board Camera
STC-HD213DVN-B
STC-HD213SDIN-B
Product Specifications and User's Guide
STC-HD213DVN-B / STC-HD213SDIN-B
Product Specifications and User's Guide
(DVI output / C mount / Board)
(SDI output / C mount / Board)
No. 20S125-04
1/91

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STC-HD213DVN-B and is the answer not in the manual?

Questions and answers

Related Manuals for Omron STC-HD213DVN-B

Summary of Contents for Omron STC-HD213DVN-B

  • Page 1 No. 20S125-04 16:9 Format 1080p STC-HD213 Series Color CMOS Board Camera STC-HD213DVN-B (DVI output / C mount / Board) STC-HD213SDIN-B (SDI output / C mount / Board) Product Specifications and User’s Guide STC-HD213DVN-B / STC-HD213SDIN-B 1/91 Product Specifications and User’s Guide...

  • Page 2: Table Of Contents

    Specifications ....................... 9 Electronic specifications ......................9 STC-HD213DVN-B ..........................9 STC-HD213SDIN-B .......................... 10 Spectral Sensitivity Characteristics ..................11 STC-HD213DVN-B / STC-HD213SDIN-B (without OPLF)..............11 IR cut filter with OPLF ........................11 Mechanical Specifications ..................... 12 STC-HD213DVN-B ........................... 12 STC-HD213SDIN-B .......................... 13 Environmental Specifications ....................
  • Page 3 Push button function list ........................ 73 The DSP register mapping list ....................75 OSCD (On Screen Character Display) Command ..............88 2 Byte Command ..........................88 2 Byte consecutive Command ....................... 89 Revisions History ....................90 STC-HD213DVN-B / STC-HD213SDIN-B 3/91 Product Specifications and User’s Guide...
  • Page 4 Do not use with out of power voltage range Do not wrong wiring. that is specified in the specifications for this This will cause of fire or malfunction. camera. This will cause of fire, electrification or malfunction. STC-HD213DVN-B / STC-HD213SDIN-B 4/91 Product Specifications and User’s Guide...
  • Page 5 Do not disassemble or repair the camera. It is turn off the camera when maintaining or This will cause of fire, electrification or inspecting the camera. malfunction. This will cause of electrification. STC-HD213DVN-B / STC-HD213SDIN-B 5/91 Product Specifications and User’s Guide...
  • Page 6 In EU, it is necessary to dispose of accordance with WEEE directive. [Security Measures, Anti-virus protection] Warning Install the latest commercial-quality antivirus software on the computer connected to the control system and maintain to keep the software up-to-date. STC-HD213DVN-B / STC-HD213SDIN-B 6/91 Product Specifications and User’s Guide...

  • Page 7: Product Precautions

    Exchange or repair the malfunction camera if the malfunction is occurred by our responsibility. “Warranty” mean is warranty for the delivered camera itself. Please accept the induction damage by the camera malfunction is not included. STC-HD213DVN-B / STC-HD213SDIN-B 7/91 Product Specifications and User’s Guide...

  • Page 8: Introduction

    (*1) The power supply conversion cable from DC jack to DC jack with cable lock. If cable lock mechanism for power supply cable is NOT necessary, CAB-CON-HD213 does not necessary. UA310-1210 CAB-CON-HD213 RC-HD133 JIG-USB-HD STC-HD213DVN-B / STC-HD213SDIN-B 8/91 Product Specifications and User’s Guide...

  • Page 9: Specifications

    Less than 2.1 W Default: Bold (*1) The longest exposure time is depending on video output mode. (*2) Twelve lines supports from 21Fxxxx serial number. (Four lines until 21Exxxx serial number) STC-HD213DVN-B / STC-HD213SDIN-B 9/91 Product Specifications and User’s Guide...

  • Page 10: Stc-Hd213Sdin-B

    Less than 2.1 W Default: Bold (*1) The longest exposure time is depending on video output mode (*2) Twelve lines supports from 21Fxxxx serial number. (Four lines until 21Exxxx serial number) STC-HD213DVN-B / STC-HD213SDIN-B 10/91 Product Specifications and User’s Guide...

  • Page 11: Spectral Sensitivity Characteristics

    No. 20S125-04 Spectral Sensitivity Characteristics STC-HD213DVN-B / STC-HD213SDIN-B (without OPLF) IR cut filter with OPLF STC-HD213DVN-B / STC-HD213SDIN-B 11/91 Product Specifications and User’s Guide...

  • Page 12: Mechanical Specifications

    (*2) Recommend lens: More than F2.8 (Close side) (*3) Please uses 2.1 mm plug for DC power plug. 762K (Switchcraft) or equivalent plug can be using for lock screw plug. Unit: mm STC-HD213DVN-B / STC-HD213SDIN-B 12/91 Product Specifications and User’s Guide...

  • Page 13: Stc-Hd213Sdin-B

    (*2) Recommend lens: More than F2.8 (Close side) (*3) Please uses 2.1 mm plug for DC power plug. 762K (Switchcraft) or equivalent plug can be using for lock screw plug. Unit: mm STC-HD213DVN-B / STC-HD213SDIN-B 13/91 Product Specifications and User’s Guide...

  • Page 14: Environmental Specifications

    No. 20S125-04 Environmental Specifications Model Number STC-HD213DVN-B / STC-HD213SDIN-B Operational Temperature / Humidity Environmental Temperature: 0 to +44 deg. C, Environmental Humidity: 20 to 85 %RH (No condensation) Storage Temperature / Humidity Environmental Temperature: -25 to +65 deg. C, Environmental Humidity: 20 to 85 %RH (No condensation) Vibration 20 Hz to 200 Hz to 20 Hz (5 min.

  • Page 15: Camera Instruction Guide

    White Balance can be set through push button. (*1) Single Push: Push to set White Balance Hold: Auto White Balance The location of Push button for each model (*1) This push button can be assigned another function through communication STC-HD213DVN-B / STC-HD213SDIN-B 15/91 Product Specifications and User’s Guide...

  • Page 16: Camera Setting Through External Switch (Remote Controller)

    The button from SW-A to SW-F can be assigned as follow functions. SW-A: Show OSD Menu SW-B: Up Cursor (Menu and Select Setting) SW-C: Left Cursor (Select Setting) SW-D: Execute SW-E: Right Cursor (Select Setting) SW-F: Down Cursor (Menu and Select Setting) STC-HD213DVN-B / STC-HD213SDIN-B 16/91 Product Specifications and User’s Guide...

  • Page 17: Menu On Screen With External Switch

    The brightness of image will be maintaining to keep target brightness of image (with LUMINANCE setting) with auto gain function. b) FIXED The fixed gain operation The fixed gain is adjustable with “GAIN”. STC-HD213DVN-B / STC-HD213SDIN-B 17/91 Product Specifications and User’s Guide...
  • Page 18 0 (1/50.1 sec.) to +561 (1/28,125.0 sec.) 7) GAMMA Sets the Gamma. It is necessary to set manual gamma setting via UART communication. Setting selection: MANUAL, 0.3, 0.45, 0.50, 0.60, 0.70, 0.80, 0.90 , 1.00 Default: MANUAL. STC-HD213DVN-B / STC-HD213SDIN-B 18/91 Product Specifications and User’s Guide...
  • Page 19 The SN ratio deteriorate for other than edge parts is prevented by cutting signal level that smaller than this setting. The image becomes soft image if this setting sets too large. Setting range: 00 to 63 Default: 02 STC-HD213DVN-B / STC-HD213SDIN-B 19/91 Product Specifications and User’s Guide...
  • Page 20 The line maker does not display if size (thickness) of line is “0” or position of line is “0000” even selecting “ON” at “LINE”. b) OFF The line markers do not display. STC-HD213DVN-B / STC-HD213SDIN-B 20/91 Product Specifications and User’s Guide...
  • Page 21 Setting selection: BLACK / WHITE / RED / GREEN / BLUE / CYAN / MAGENTA / YELLOW / USER0 / USER1 / USER2 / USER3 / USER4 / USER5 / USER6 / USER7 Default: BLACK STC-HD213DVN-B / STC-HD213SDIN-B 21/91 Product Specifications and User’s Guide...
  • Page 22 2-1) GRADE Sets the grade of shadow mask. Setting range: 0 (100% transparent, no shadow mask and image is visible) to 255 (Back shadow mask and image is invisible) Default: 0 STC-HD213DVN-B / STC-HD213SDIN-B 22/91 Product Specifications and User’s Guide...
  • Page 23 Vertical line 1 Vertical line 2 SHADOW H T LINE1 H POS Horizontal line 1 SHADOW H B LINE2 H POS Horizontal line 2 Shadow mask SHADOW V L SHADOW V R STC-HD213DVN-B / STC-HD213SDIN-B 23/91 Product Specifications and User’s Guide...
  • Page 24 Setting selection: BLACK / WHITE / RED / GREEN / BLUE / CYAN / MAGENTA / YELLOW / USER0 / USER1 / USER2 / USER3 / USER4 / USER5 / USER6 / USER7 Default: BLACK STC-HD213DVN-B / STC-HD213SDIN-B 24/91 Product Specifications and User’s Guide...
  • Page 25 No. 20S125-04 RADIUS COLOR H POS, V POS SIZE STC-HD213DVN-B / STC-HD213SDIN-B 25/91 Product Specifications and User’s Guide...
  • Page 26 OSD display with large size of character. b) SMALL OSD display with small size of character. 3) PROFILE Preset data (from PRESET0 to PRESET7) can be apply to camera. (Default: PRESET0) STC-HD213DVN-B / STC-HD213SDIN-B 26/91 Product Specifications and User’s Guide...
  • Page 27 This setting does not apply to test pattern outputs. a) STANDARD The normal image (no-flip). b) INVERSION The horizontal flipped image. c) V INVERSION The vertical flipped image. d) HV INVERSION The horizontal and vertical flip (180-degree rotate) image. STC-HD213DVN-B / STC-HD213SDIN-B 27/91 Product Specifications and User’s Guide...
  • Page 28 When selecting “LIMITED” at “OUPUT RANGE”, output image from camera is “16 to 235” gradation image. a) FULL “0 to 255” full gradation image output from camera. b) LIMITED “16 to 235” limited gradation image output from camera. STC-HD213DVN-B / STC-HD213SDIN-B 28/91 Product Specifications and User’s Guide...
  • Page 29 When selecting other than “executing” while “ARE YOU OK?” message is displaying, data reset process is cancelled. Note: All settings of camera including PROFILE data put back to facture default setting when execute RESET. STC-HD213DVN-B / STC-HD213SDIN-B 29/91 Product Specifications and User’s Guide...

  • Page 30: Control Software User's Guide

    Select the COM port number through Comm(C) => Port Setting Click Read All to read all of register values from camera. All of camera setting can be configurable through control software. STC-HD213DVN-B / STC-HD213SDIN-B 30/91 Product Specifications and User’s Guide...

  • Page 31: Button Description

    Mainly video control functions are in DSP register area. The communication settings and other functions as button setting are in uCOM register. DSP has the eight User presets and user can configure each DSP Preset for each application. STC-HD213DVN-B / STC-HD213SDIN-B 31/91 Product Specifications and User’s Guide...

  • Page 32: Functional Description

    4) ALC rapid control frame number Sets the number of frames for rapid ALC processing when power on camera or changes displaying mode. (ALC processing speed when power on camera or changes displaying mode) STC-HD213DVN-B / STC-HD213SDIN-B 32/91 Product Specifications and User’s Guide...
  • Page 33 The AEE process will be start when differences between “ALC target brightness” and current brightness becomes greater than “(AEE tolerance + AEE threshold)” 6) AEE speed The maximum amount of exposure time change for AEE control is limit by this setting. STC-HD213DVN-B / STC-HD213SDIN-B 33/91 Product Specifications and User’s Guide...
  • Page 34 The AGC process will be start when differences between “ALC target brightness” and current brightness becomes greater than “(AGC tolerance + AGC threshold)” 6) AGC speed The maximum amount of gain change for AGC control is limit by this setting. STC-HD213DVN-B / STC-HD213SDIN-B 34/91 Product Specifications and User’s Guide...
  • Page 35 Selects photometry mode for ALC control from “Average photometry” and “Weight photometry”. When selecting “Average photometry” same weight is applying for all nine frames. When selecting “Weight photometry”, individual weight is applying for each frame. STC-HD213DVN-B / STC-HD213SDIN-B 35/91 Product Specifications and User’s Guide...
  • Page 36 7) AWB rapid control frame number Sets the number of frames for rapid AWB processing when power on camera or changes displaying mode. (AWB processing speed when power on camera or changes displaying mode) STC-HD213DVN-B / STC-HD213SDIN-B 36/91 Product Specifications and User’s Guide...
  • Page 37 No. 20S125-04 AWB (Limited gain) STC-HD213DVN-B / STC-HD213SDIN-B 37/91 Product Specifications and User’s Guide...
  • Page 38 3) AWB R and B change limit Sets the control speed for no limit gain AWB process. The maximum amount of white balance gain change is limit by this setting. (There is no limit when setting “0”) STC-HD213DVN-B / STC-HD213SDIN-B 38/91 Product Specifications and User’s Guide...
  • Page 39 When selecting “Manual” gamma mode, gamma control with gamma control point settings. 2) Preset gamma Selects the preset gamma mode from “1.0”, “0.9”, “0.8”, “0.7”, “0.6”, “0.5”, “0.45”, “0.3” and “Through”. This setting is valid when selecting “Preset” at “Gamma mode”. STC-HD213DVN-B / STC-HD213SDIN-B 39/91 Product Specifications and User’s Guide...
  • Page 40 Manual Gamma 1) Gamma control point 0 to 9 It is necessary to adjust gamma control point with displaying “Gamma Curve”. These settings are valid when selecting “Manual” at “Gamma mode”. STC-HD213DVN-B / STC-HD213SDIN-B 40/91 Product Specifications and User’s Guide...
  • Page 41 4) Color/Black and white Selects the video output from “Color” and “Black and white”. When selecting “Color”, color video is output from camera. When selecting “Black and white”, monochrome video is output from camera. STC-HD213DVN-B / STC-HD213SDIN-B 41/91 Product Specifications and User’s Guide...
  • Page 42 Sets hue of color with “R-Y Hue” and “B-Y Hue”. High luminance chroma suppress 1) High luminance chroma suppress threshold and slope These settings are help to eliminate false color at high luminance part of video. STC-HD213DVN-B / STC-HD213SDIN-B 42/91 Product Specifications and User’s Guide...
  • Page 43 The SN ratio deteriorate for other than edge parts is prevented by cutting signal level that smaller than this setting. The image becomes soft image if this setting sets too large. STC-HD213DVN-B / STC-HD213SDIN-B 43/91 Product Specifications and User’s Guide...
  • Page 44 When selecting “Enable”, line markers, shadow mask and circle marker are displaying. It is necessary to set color, thickness (size) and displaying position for each marker and shadow mask. When selecting “Disable”, any markers including shadow mask do not display. STC-HD213DVN-B / STC-HD213SDIN-B 44/91 Product Specifications and User’s Guide...
  • Page 45 When selecting small value, thin horizontal line is displaying. When selecting great value, thick horizontal line is displaying. 5) Vertical line maker color (line1 to 6) Selects color for vertical line individually. STC-HD213DVN-B / STC-HD213SDIN-B 45/91 Product Specifications and User’s Guide...
  • Page 46 Sets border of shadow mask from bottom of image. 5) Vertical shadow mask left position Sets border of shadow mask from left of image. 6) Vertical shadow mask right position Sets border of shadow mask from right of image. STC-HD213DVN-B / STC-HD213SDIN-B 46/91 Product Specifications and User’s Guide...
  • Page 47 3) Circle marker radius Sets radius for circle marker. 4) Circle marker Horizontal position Sets horizontal center position for circle marker. 5) Circle marker Vertical position Sets vertical center position for circle marker. STC-HD213DVN-B / STC-HD213SDIN-B 47/91 Product Specifications and User’s Guide...
  • Page 48 4) Normal color mode shadow mask line color Selects color of boarder of shadow mask from “Black” or pseudo color. 5) Pseudo color threshold Sets threshold for banalization of pseudo image. STC-HD213DVN-B / STC-HD213SDIN-B 48/91 Product Specifications and User’s Guide...
  • Page 49 No. 20S125-04 6) Pseudo color slope Sets slope for banalization of pseudo image. STC-HD213DVN-B / STC-HD213SDIN-B 49/91 Product Specifications and User’s Guide...
  • Page 50 The settings for user defined color of makers are changeable. These are applying all DSP User Presets. Pseudo 1) User defined color 0 to 7 Sets R, G and B elements for user defined color individually. STC-HD213DVN-B / STC-HD213SDIN-B 50/91 Product Specifications and User’s Guide...
  • Page 51 Selects the button for cursor moves to left (selects next left selection) function on OSD. 7) Menu turn off Selects the button for return function on OSD. 8) Menu enter Selects the button for executes selected function on OSD. STC-HD213DVN-B / STC-HD213SDIN-B 51/91 Product Specifications and User’s Guide...
  • Page 52 No. 20S125-04 9) External switch Switch Circuit Diagram, 1.8K 3.3K 4.7K SW-A SW-B SW-C SW-D SW-E SW-F Example SW-A SW-B SW-D SW-C SW-E SW-F STC-HD213DVN-B / STC-HD213SDIN-B 52/91 Product Specifications and User’s Guide...
  • Page 53 Sets the minimum and maximum position of vertical line that can be controlling with push button function. 4) Vertical line Max. thickness (for push button) Sets the maximum thickness of vertical line that can be controlling with push button function. STC-HD213DVN-B / STC-HD213SDIN-B 53/91 Product Specifications and User’s Guide...
  • Page 54 Circle marker V center position (-) User Preset (+) User Preset reset User Preset 0 User Preset 1 User Preset 2 User Preset 3 User Preset 4 User Preset 5 User Preset 6 User Preset 7 STC-HD213DVN-B / STC-HD213SDIN-B 54/91 Product Specifications and User’s Guide...
  • Page 55 Sets vertical start position for displaying OSD menu 5) OSD RGB level Sets brightness level for displaying OSD menu. 6) OSD Edge level Sets edge enhancement level for displaying OSD menu STC-HD213DVN-B / STC-HD213SDIN-B 55/91 Product Specifications and User’s Guide...
  • Page 56 Selects the test parttan to check connecting monitor form “OFF (Video out)”, “Gray scale”, “Color bar” and “Color bar + Gray scale”. 2) DVI Output Range Selects DVI output range for DVI output models from “Limited” and “Full”. STC-HD213DVN-B / STC-HD213SDIN-B 56/91 Product Specifications and User’s Guide...
  • Page 57 When selecting “OFF”, receiving data from camera for writing command, does not include written data. When selecting “ON”, receiving data from camera for writing command, includes written data. 3) UART check sum Selects “Enable” or “Disable” for UART communication checksum. STC-HD213DVN-B / STC-HD213SDIN-B 57/91 Product Specifications and User’s Guide...
  • Page 58 When selecting “ON”, defective pixels are displaying highlighted on video. 3) Auto Detect When selecting “Auto Detect” button, defective pixel detection process is starting. * It is necessary to shading camera before starts defective pixel detection. STC-HD213DVN-B / STC-HD213SDIN-B 58/91 Product Specifications and User’s Guide...
  • Page 59 Displays X and Y coordinates of defective pixel that detected by auto detect function. 7) Sort Blemish Pixel Sorts X and Y coordinates of defective pixel as order of raster scanning (from upper left to lower bottom on image) automatically. STC-HD213DVN-B / STC-HD213SDIN-B 59/91 Product Specifications and User’s Guide...
  • Page 60 No. 20S125-04 uCOM: ReadOnly The version of firmware and FPGA of camera are displaying. Version Information OSD Cmd The OSD functionality can be check. STC-HD213DVN-B / STC-HD213SDIN-B 60/91 Product Specifications and User’s Guide...
  • Page 61 When selecting “Register” on each setting by left-click, each setting can be change on this table. Define the eight color table. The defined color can be used as Pseudo color and Line marker.. STC-HD213DVN-B / STC-HD213SDIN-B 61/91 Product Specifications and User’s Guide...

  • Page 62: The Communication Protocol Specifications

    The "Check sum" functions to verify integrity of communication transmission. The "Check sum" value should equal last (low) 8 bits of summary of ["Command" + "Direction" + "Data Length" + "Data"]. End of Frame. This value is always "0x03". STC-HD213DVN-B / STC-HD213SDIN-B 62/91 Product Specifications and User’s Guide...

  • Page 63: Camera Control Commands

    *An example of sending a command to read out all data (address 0000 to 03FF) from IC (IC slave address is 22) is as follows: (02, 4A, 00, 05, 22, 00, 00, 03, FF, 73, 03) STC-HD213DVN-B / STC-HD213SDIN-B 63/91 Product Specifications and User’s Guide...
  • Page 64 * The format for sending a command to camera to clear display and then to generate a display of [0123] on 3rd row of 1st column is as follows: (02, 50, 80, 0A, 08, 92, 18, 38, DC, 10, 11, 12, 13, FF, E5, 03) STC-HD213DVN-B / STC-HD213SDIN-B 64/91 Product Specifications and User’s Guide...

  • Page 65: Slave Address For Ics (8Bits) List

    Note.1: The camera disregards data, which is not start with STX (0x02). Note.2: The time out error is occurred when camera does not receive next data 3 seconds after receiving data. STC-HD213DVN-B / STC-HD213SDIN-B 65/91 Product Specifications and User’s Guide...

  • Page 66: The Ucom Register Mapping List

    Return data is excluding data of write command, and data length is 0. UART check sum 0: Disable 1: Enable * When selecting disable, camera process command even check sum of send command is not mach. STC-HD213DVN-B / STC-HD213SDIN-B 66/91 Product Specifications and User’s Guide...
  • Page 67 Selectable Parameters are same as Address 028 Menu: left Selectable Parameters are same as Address 028 Menu: return Selectable Parameters are same as Address 028 Menu: enter Selectable Parameters are same as Address 028 STC-HD213DVN-B / STC-HD213SDIN-B 67/91 Product Specifications and User’s Guide...
  • Page 68 * As for the detail of selectable function, please refer to Push button function list Horizontal line minimum position [little-endian] (to Push Button) Horizontal line maximum position [little-endian] (to Push Button) 1,920 Horizontal line minimum size (thickness) [little-endian] 1,920 (to Push Button) STC-HD213DVN-B / STC-HD213SDIN-B 68/91 Product Specifications and User’s Guide...
  • Page 69 056 – Reserved DVI output range (range of gradation of image) 0: Full (0 to 255) 1: Limited (16 to 235) * This setting is valid only STC-HD213DVN-B. 05D - Reserved STC-HD213DVN-B / STC-HD213SDIN-B 69/91 Product Specifications and User’s Guide...
  • Page 70 Threshold of detecting dead defective pixel (Black pixel) When detecting defective pixel, pixel has smaller pixel value than this setting, is detecting as hot defective pixel. 406 - Reserved STC-HD213DVN-B / STC-HD213SDIN-B 70/91 Product Specifications and User’s Guide...
  • Page 71 Defective pixel vertical position 004 Defective pixel horizontal position 005 Defective pixel vertical position 005 Defective pixel horizontal position 006 Defective pixel vertical position 006 Defective pixel horizontal position 007 Defective pixel vertical position 007 STC-HD213DVN-B / STC-HD213SDIN-B 71/91 Product Specifications and User’s Guide...
  • Page 72 900 - Defective pixel position 192 to 207 940 - Defective pixel position 208 to 223 980 - Defective pixel position 224 to 239 9C0 - Defective pixel position 240 to 255 STC-HD213DVN-B / STC-HD213SDIN-B 72/91 Product Specifications and User’s Guide...

  • Page 73: Push Button Function On Meru

    Expands height of shadow mask bottom to top. 0x1E Shadow mask Left (+) Expands height of shadow mask left to right. 0x1F Shadow mask Left (-) Contracts height of shadow mask left to left. STC-HD213DVN-B / STC-HD213SDIN-B 73/91 Product Specifications and User’s Guide...
  • Page 74 Loads settings of user preset 4 0x2E User Preset 5 Loads settings of user preset 5 0x2F User Preset 6 Loads settings of user preset 6 0x30 User Preset 7 Loads settings of user preset 7 STC-HD213DVN-B / STC-HD213SDIN-B 74/91 Product Specifications and User’s Guide...

  • Page 75: The Dsp Register Mapping List

    10: 512 frames Exposure time [little-endian] 0 to 561 AEE minimum exposure time [little-endian] 0 to 561 AEE middle exposure time [little-endian] 0 to 561 AEE maximum exposure time [little-endian] 0 to 561 STC-HD213DVN-B / STC-HD213SDIN-B 75/91 Product Specifications and User’s Guide...
  • Page 76 Setting Exposure time 19.96 [msec.] 1/50.1 [sec.] 9.99 [msec.] 1/100.1 [sec.] 8.32 [msec.] 1/120.2 [sec.] 5.01 [msec.] 1/199.5 [sec.] 3.98 [msec.] 1/251.1 [sec.] 1.99 [msec.] 1/502.2 [sec.] 35.6 [usec.] 1/28,125 [sec.] STC-HD213DVN-B / STC-HD213SDIN-B 76/91 Product Specifications and User’s Guide...
  • Page 77 Setting Exposure time 39.93 [msec.] 1/25.0 [sec.] 19.99 [msec.] 1/50.0 [sec.] 16.64 [msec.] 1/60.1 [sec.] 10.03 [msec.] 1/99.7 [sec.] 4.98 [msec.] 1/200.9 [sec.] 3.98 [msec.] 1/251.1 [sec.] 71.1 [usec.] 1/14,063 [sec.] STC-HD213DVN-B / STC-HD213SDIN-B 77/91 Product Specifications and User’s Guide...
  • Page 78 It is necessary to set minimum, middle and maximum AEE exposure time and AGC gain as below order. AEE minimum exposure time <= AEE middle exposure time <= AEE maximum exposure time AGC minimum gain <= AGC middle gain <= AGC maximum gain STC-HD213DVN-B / STC-HD213SDIN-B 78/91 Product Specifications and User’s Guide...
  • Page 79 0: 0 frame (no high speed process) 1: 1 frames 2: 2 frames 3: 4 frames 4: 8 frames 5: 16 frames 6: 32 frames 7: 64 frames 8: 128 frames 9: 256 frames 10: 512 frames STC-HD213DVN-B / STC-HD213SDIN-B 79/91 Product Specifications and User’s Guide...
  • Page 80 R gain for high color temperature reference point for - frame B gain for high color temperature reference point for + frame B gain for high color temperature reference point for - frame 050 - Reserved STC-HD213DVN-B / STC-HD213SDIN-B 80/91 Product Specifications and User’s Guide...
  • Page 81 Manual Gamma 2 [little-endian] * Two’s compliment Manual Gamma 3 [little-endian] * Two’s compliment Manual Gamma 4 [little-endian] * Two’s compliment Manual Gamma 5 [little-endian] * Two’s compliment Manual Gamma 6 [little-endian] * Two’s compliment STC-HD213DVN-B / STC-HD213SDIN-B 81/91 Product Specifications and User’s Guide...
  • Page 82 3 vertical frames) and giving weighting to this region on screen。 Average Photometry: This evaluation mode uses same weighting for all 9 frames Weight Photometry: The weighting for each of 9 frames can be specified. STC-HD213DVN-B / STC-HD213SDIN-B 82/91 Product Specifications and User’s Guide...
  • Page 83 Horizontal line 2 marker thickness (size) [little-endian] 0: Invisible to 1,080: Maximum Vertical line 2 marker position [little-endian] 0: Left to 1,920: Right Vertical line 2 marker thickness (size) [little-endian] 0: Invisible to 1,920: Maximum STC-HD213DVN-B / STC-HD213SDIN-B 83/91 Product Specifications and User’s Guide...
  • Page 84 Range: -128 to 127 Threshold for high brightness chroma suppression slope for high brightness chroma suppression Range: 0 to 8 Aperture horizontal gain Aperture vertical gain Aperture coring 14A - Reserved STC-HD213DVN-B / STC-HD213SDIN-B 84/91 Product Specifications and User’s Guide...
  • Page 85 User Defined Color 0 User Defined Color 1 User Defined Color 2 User Defined Color 3 User Defined Color 4 User Defined Color 5 User Defined Color 6 User Defined Color 7 STC-HD213DVN-B / STC-HD213SDIN-B 85/91 Product Specifications and User’s Guide...
  • Page 86 Horizontal line 5 marker thickness (size) [little-endian] 0: Invisible to 1,080: Maximum Vertical line 5 marker position [little-endian] 0: Left to 1,920: Right Vertical line 5 marker thickness (size) [little-endian] 0: Invisible to 1,920: Maximum STC-HD213DVN-B / STC-HD213SDIN-B 86/91 Product Specifications and User’s Guide...
  • Page 87 Horizontal line 6 marker thickness (size) [little-endian] 0: Invisible to 1,080: Maximum Vertical line 6 marker position [little-endian] 0: Left to 1,920: Right Vertical line 6 marker thickness (size) [little-endian] 0: Invisible to 1,920: Maximum 178- Reserved STC-HD213DVN-B / STC-HD213SDIN-B 87/91 Product Specifications and User’s Guide...

  • Page 88: Oscd (On Screen Character Display) Command

    (00: x1, 01: x2, 02: x3, 03: x4) SH1, SH0: Size on Horizontal (00: x1, 01: x2, 02: x3, 03: x4) AR3, AR2, AR1, AR0: Number of row (0 to 11) STC-HD213DVN-B / STC-HD213SDIN-B 88/91 Product Specifications and User’s Guide...

  • Page 89: Byte Consecutive Command

    C7 - C0 Character C7 - C0 Character “ < > & ‘ > fill ¥ < fill △ ▽ ・ ・・ ・・・ ～ ◆ × ÷ 2 byte control finish STC-HD213DVN-B / STC-HD213SDIN-B 89/91 Product Specifications and User’s Guide...

  • Page 90: Revisions History

    (from 4 to 12 lines, from 21Fxxxx serial number) Note: Product specifications would be changed without notification. Company names and product names in this document are trademarks of their respective owners. STC-HD213DVN-B / STC-HD213SDIN-B 90/91 Product Specifications and User’s Guide...
  • Page 91 No. 20S125-04 19F, Ebina Prime Tower 9-50, Chuo 2 chome Ebina-city, Kanagawa 243-0432 Japan TEL 81-46-236-6660 FAX 81-46-236-6661 URL http://www.sentech.co.jp/ STC-HD213DVN-B / STC-HD213SDIN-B 91/91 Product Specifications and User’s Guide...
