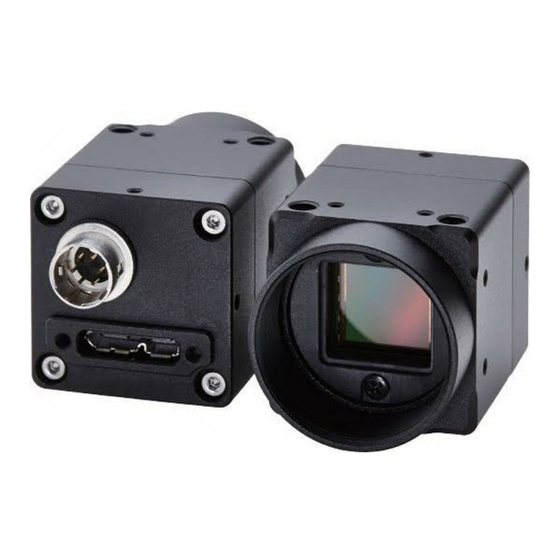

Usb3 vision monochrome / color cmos camera
Table of Contents

Advertisement

USB3 Vision
Monochrome / Color CMOS Camera
STC-MBCM200U3V
STC-MCCM200U3V
STC-MBCM200U3V-NIR
STC-MBCM401U3V
STC-MCCM401U3V
STC-MBCM401U3V-NIR
Product Specifications and User's Guide
STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR
STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use's Guide
(2M / Monochrome)
(2M / Color)
(2M / Near Infrared)
(4M / Monochrome)
(4M / Color)
(4M / Near Infrared)
No.13S076-08
1/62

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STC-MBCM200U3V and is the answer not in the manual?

Questions and answers

Summary of Contents for Omron STC-MBCM200U3V

  • Page 1 (2M / Color) STC-MBCM200U3V-NIR (2M / Near Infrared) STC-MBCM401U3V (4M / Monochrome) STC-MCCM401U3V (4M / Color) STC-MBCM401U3V-NIR (4M / Near Infrared) Product Specifications and User’s Guide STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 1/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 2: Table Of Contents

    Spectral Sensitivity Characteristics ..................17 4.2.1 STC-MBCM200U3V / STC-MBCM401U3V ................... 17 4.2.2 STC-MCCM200U3V / STC-MCCM401U3V ................... 17 4.2.3 STC-MBCM200U3V-NIR / STC-MBCM401U3V-NIR (Near IR models) ..........18 4.2.4 IR Cut Filter (STC-MCCM200U3V / STC-MCCM401U3V) ..............18 Mechanical Specifications ......................19 4.1.1 STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR ..........19 4.1.2 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR ..........
  • Page 3 9.6.2 White Balance Gain (Only available for the color model) ..............46 Black Level..........................47 ALC (Auto Light Control) ......................47 9.8.1 ALC Control Method ..........................47 9.8.2 AGC (Auto Gain Control) ........................48 STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 3/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 4 9.15.9 EventTestData ............................59 9.15.10 AnalogControl ..........................59 9.15.11 LUTControl ............................59 9.15.12 UserSetControl ..........................59 9.15.13 TestControl ............................60 10 Revision History ....................61 STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 4/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 5 This will cause of fire or malfunction. camera. This will cause of fire, electrification or malfunction. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 5/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 6 It is turn off the camera when maintaining or This will cause of fire, electrification or inspecting the camera. malfunction. This will cause of electrification. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 6/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 7 No.13S076-08 [Disposal] Caution It is necessary to dispose as industrial waste. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 7/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 8: Product Precautions

    Exchange or repair the malfunction camera if the malfunction is occurred by our responsibility. “Warranty” mean is warranty for the delivered camera itself. Please accept the induction damage by the camera malfunction is not included. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 8/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 9: Overview

    No.13S076-08 Overview This document describes the specification of the following cameras. STC-MBCM200U3V / MCCM200U3V / MBCM200U3V-NIR STC-MBCM401U3V / MCCM401U3V / MBCM401U3V-NIR Features ・USB3 Vision ・Frame Rate (Full Scan): 167 fps @ 2M 8bits, 89 fps @ 4M 8bits ・CMOS (Global Shutter) ・Up to 64 Pixel Defect Correction...
  • Page 10: Specifications

    (Horizontal decimation does not increase frame rate) Image Flip Horizontal / Vertical / Horizontal and Vertical / Off Defective Pixel Correction Up to 64 points Default: Bold STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 10/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 11 Three GPIOs, One Camera Hardware Reset Power Input Voltage +5V (typ.) (This conforms to USB standard) Consumption (*5) Less than 4.0 W Default: Bold STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 11/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 12: Stc- Mbcm401U3V / Stc-Mccm401U3V

    Defective Pixel Correction Up to 64 points Auto Image Auto Exposure Support Support Control Auto Gain Support Support Auto White Balance Support Default: Bold STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 12/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 13 Three GPIOs, One Camera Hardware Reset Power Input Voltage +5V (typ.) (This conforms to USB standard) Consumption (*5) Less than 4.0 W Default: Bold STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 13/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 14: Stc- Mbcm200U3V-Nir / Stc-Mbcm401U3V-Nir

    Horizontal / Vertical / Horizontal and Vertical / Off Defective Pixel Correction Up to 64 points Auto Image Auto Exposure Support Control Auto Gain Support Auto White Balance Default: Bold STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 14/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 15 Three GPIOs, One Camera Hardware Reset Power Input Voltage +5V (typ.) (This conforms to USB standard) Consumption (*3) Less than 4.0 W Default: Bold STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 15/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 16 USB host controller. This may resolve to increase the frame rate. PC resources may have consumed during the image processing (color interpolation, image display, etc.) with huge image data from camera. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 16/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 17: 4.2 Spectral Sensitivity Characteristics

    No.13S076-08 4.2 Spectral Sensitivity Characteristics STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 17/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 18: Stc-Mbcm200U3V-Nir / Stc-Mbcm401U3V-Nir (Near Ir Models)

    No.13S076-08 Near IR Model Normal Model (Mono) Spectrum Transmittance (Reference) Wave Length (nm) STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 18/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 19: Mechanical Specifications

    M4 screws holes (Two on top, four on bottom plate) Weight Approximately 52 g (*1) Excluding connectors (*2) Recommend lens: More than F2.8 (Close side) STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 19/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 20: Environmental Specifications

    55 deg. C. Taking these steps will maintain the heat rating of the electronic components of the camera. Upper side of camera Measuring point STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 20/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 21: External Connector Specifications

    SuperSpeed transmitter differential pair (−) SSTX+ SuperSpeed transmitter differential pair (+) SSRX− SuperSpeed receiver differential pair (−) SSRX+ SuperSpeed receiver differential pair (+) 12345 678910 STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 21/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 22 15 mA to connecting IO port as output IO port when external circuits connecting to IO port. (*4) The typical current value when high voltage input into Input port. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 22/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 23: Reference Input Circuit

    The camera resets while “CAM_REST pin” connecting to GND 5 seconds in this circuit. The default camera setting is disable for this reset function. It is necessary to turn ON. General Purpose Input (Reference 2) STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 23/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 24 IO_GND Camera internal The capable input trigger’s pulse width is Positive Edge: more than Ts + Tf Negative Edge: more than Td + Tr STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 24/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 25: Reference Output Circuit

    No.13S076-08 General Purpose Output (Reference 3) O General Purpose Output (Reference 4) STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 25/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 26 (*1) With reference 3. It was measuring on 1.8 V camera internal voltage. (*2) with reference 4. Internal Voltage Internal Voltage Camera internal Camera internal +3.3V or VCCext USER_OUTPUT USER_OUTPUT +3.3V or VCCext IO_GND IO_GND STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 26/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 27: Dimensions

    12.5 2-M4 Depth4.0 3-M2 Depth2.3 (46.8) 6-M2 Depth2.3 (3-M2 on other side) 2-M2 Depth4.0 C mount 24.5 12.5 4-M4 Depth4.0 3-M2 Depth2.3 Unit: mm STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 27/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 28: Sensor Information

    No.13S076-08 Sensor Information Pixel Transferring Image STC-MBCM200U3V / STC-MBCM401U3V (Monochrome) STC-MBCM200U3V-NIR / STC-MBCM401U3V-NIR (Near Infrared) Pixel0 Pixel1 Data Data Pixel (n) of Data: nth pixel being transferred STC-MCCM200U3V / STC-MCCM401U3V (Color) Pixel00 Pixel01 Data Data Pixel11 Pixel10 Data Data Pixel (m, n) of Data: nth pixel of the mth line being transferred...
  • Page 29: Image Acquisition And Camera Operational Modes (Genicam)

    When Exposure Mode is set to Timed, the Exposure Time value will be set as the exposure time. ExposureTime 露光 Exposure VideoOut 映像出力 (*) The camera is set to Free run mode as the default mode. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 29/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 30: Trigger Mode

    (*) Please do not apply the Trigger through maximum frame rate on Trigger Mode. When Trigger applies within sensor Readout as exposure end, camera interrupted Readout. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 30/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 31: Frame Start Trigger

    Trigger Input トリガー入力(負極性) (Negative) I/O Delay (tIPDHL) I/O遅延(tIPDHL) LineDebounceTime Trigger Delay TriggerDelay Exposure Start Duration inside of sensor センサー内部の露光開始遅延 ExposureTime 露光 Exposure VideoOut 映像出力 STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 31/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 32: Exposure Start Trigger

    This function can apply either external signal or a software command as the trigger. The software trigger can be applied through the “execute Trigger Software” command when the trigger is selected on the Trigger Selector. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 32/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 33: Io Function

    This function monitors the signal status on the input Line. The High level (Line Status: true) or Low level (Line Status false) status can be seen through the software. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 33/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 34: Triggerdelay

    The trigger signal that added “Trigger Out Delay (Output pulse delay time)” and “Trigger Out On Time (Output pulse width)” is output. 4) Trigger Through Out The trigger input signal is output. (with a slight internal delay) STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 34/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 35 10) Exposure Active (In Exposure Period) The signal that activation time is exposure time is output. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 35/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 36 (*) The trigger port in this chart describes Frame Start trigger as an example (*) Trigger Out and Strobe Out do not output from the camera for Exposure Start trigger and Exposure End trigger STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 36/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 37: Line Status

    The hardware reset can be done by CAM_RESET port. Sets On (Default: Off) at Line Device Reset Mode, and apply the Low voltage in 5 seconds on CAM_RESET port then camera rest. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 37/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 38: Camera Functions

    The parameters define as following chart. OffsetY Height ROI Region OffsetX Width (*) Width, Height, OffsetX, OffestY setting steps is the same in Binning and Decimation. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 38/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 39 16 pixels unit Height Setting range: 32 to 1,088 pixels 32 to 2,048 lines Default: 1,088 pixels 2,048 lines Setting steps 4 lines 4 lines STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 39/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 40: Multi Roi

    Width[Region3] OffsetX [Region4] Width[Region4] OffsetX [Region5] Width[Region5] OffsetX [Region6] Width[Region6] OffsetX [Region7] Width[Region7] MultiROI can be set eight regions as Region 0 to 7. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 40/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 41 This camera output the image of all active regions as one image data. When Binning / Decimation function is enabled, the width and Height are corresponding the image after process these function. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 41/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 42: Pixel Format

    BinningVertical Integer Type Sets Binning on Vertical direction 1: Disable Binning 2: Binning 2 Pixel (*) Binning and Decimation function cannot be use simultaneously. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 42/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 43: Decimation

    Integer Type Sets decimation on vertical direction 1: Disable Decimation, 2: Decimate one of two pixels (*) Binning and Decimation function cannot be use simultaneously. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 43/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 44: Image Flip

    Switch ON / OFF at Vertical False: Vertical Flip Off, True: Vertical Flip On. Default: False Reverse X(Off), Y(Off) Reverse X(Off), Y(On) Reverse X(On), Y(Off) Reverse X(On), Y(On) STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 44/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 45 Reverse X(Off), Y(On) Reverse X(On), Y(Off) Reverse X(On), Y(On) (*) When the image is flipping for color camera, the pixel array is also flipped. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 45/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 46: Gain

    White Balance Gain Range: 0 to 511, Default: Red: 229, Green: 128, Blue: 272 White Balance Gain Formula Gain (x times) = BalanceRatio[BalanceRatioSelector] / 128 STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 46/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 47: Black Level

    When AGC and auto exposure are enabled, at first, the brightness adjusts with auto exposure function. If the brightness does not achieve “Auto Light Target” brightness with auto exposure function, the brightness adjusts with the AGC function. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 47/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 48: Agc (Auto Gain Control)

    Sets “Continuous” at “Gain Auto” (When using AGC) Sets “Gain Auto Limit Max” (When using AGC) Sets “Gain Auto Limit Min” (When using AGC) STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 48/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 49: White Balance (Only Available For The Color Model)

    Sets value at “Balance Ratio” Sets “Off” at “Balance White Auto” Optimizes white balance gain each frame automatically. Setting Procedure 1. Sets “Continuous” at “Balance White Auto” STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 49/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 50: Push To Set White Balance (Once)

    Sets “Off” at “Balance White Auto” automatically after set “White Balance Gain”. Setting Procedure Sets the flat white target (To process white balance correctly) Sets Once on Balance White Auto STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 50/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 51: Save And Load The Camera Settings

    Caution: Default Selector UserSetSave cannot execute when “Default” was selected at “UserSet Selector” UserSetSelector Setting Procedure 1. Selects “UserSetX” at “UserSetSelector” 2. Execute “UserSetSave” STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 51/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 52: Loading Camera Settings

    Please follow the below procedure for the camera settings put back to the factory default settings. Setting Procedure Selects “Default” at “UserSetSelector”. Executes “UserSetLoad”. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 52/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 53: Pixel Defect Correction

    When the external hardware or software signal is input to the camera, the following process are proceeding. Line0 Line Line1 Debouncer Trigger Trigger トリガー Trigger Selector Delay Line2 Software Trigger Trigger Source STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 53/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 54: Device User Id

    Event ID is 0x9001. (*) The event occurrence frequently, the stream data transferring rate could be reduced because Event and Stream (image data) share USB bus. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 54/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 55: Genicam Command List

    Indicates the command timeout of the specified Link. This corresponds to the maximum response time of the device for a command sent on that link. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 55/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 56: Imageformatcontrol

    Height Height of the image provided by the device (in pixels). OffsetX Horizontal offset from the origin to the region of interest (in pixels). STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 56/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 57: Acquisitioncontrol

    Determine the upper limit of exposure time when ExposureAuto is set to Continuous. ExposureAutoLimitMin Determine the lower limit of exposure time when ExposureAuto is set to Continuous. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 57/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 58: Transportlayercontrol

    Name Description EventExposureStart Returns the unique Identifier of the Exposure Start type of Event. EventExposureStartTimestamp Returns the Timestamp of the Exposure Start Event. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 58/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 59: Eventtestdata

    Save the User Set specified by UserSetSelector to the non-volatile memory of the UserSetSave device. UserSetDefault Selects the feature User Set to load and make active by default when the device is reset. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 59/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 60: Testcontrol

    TestPendingAck before acknowledging the write. TestEventGenerate Generates a Test Event. TriggerEventTest This register is used to control the generation of test events. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 60/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 61: 10 Revision History

    USB3 Vision is trademark of AIA. GenICam is trademark of EMVA. Other company names and product names in this document are trademarks of their respective owners. STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 61/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
  • Page 62 No.13S076-08 9F, Ebina Prime Tower 9-50, Chuo 2 chome Ebina-city, Kanagawa 243-0432 Japan TEL +81-46-236-6660 FAX +81-46-236-6661 URL http://www.sentech.co.jp/ STC-MBCM200U3V / STC-MCCM200U3V / STC-MBCM200U3V-NIR 62/62 STC-MBCM401U3V / STC-MCCM401U3V / STC-MBCM401U3V-NIR Product Specifications and Use’s Guide...
