100 | Chapter 3: Operation
Tubing
Short single tube, approx.
3
12"/30.48 cm
Two other quite distinct tubing sets are used in subsequent steps.
n
1. Put the intermediate waste bottle into the bracket on the side of the control
module.
2. Connect the tubing with the Luer fitting to the port labeled
and to the smallest nipple on the waste bottle cap.
Out
3. Connect the longest single tube to the port labeled
and to the nipple without a tube inside the bottle.
Supply
4. Connect the shortest tube to the port labeled
waste bottle cap nipple with the wide, split-tube extension inside the bottle.
Connect to Waste System
405™ Microplate Washer LS
Control
Module
Intermediate
Waste In

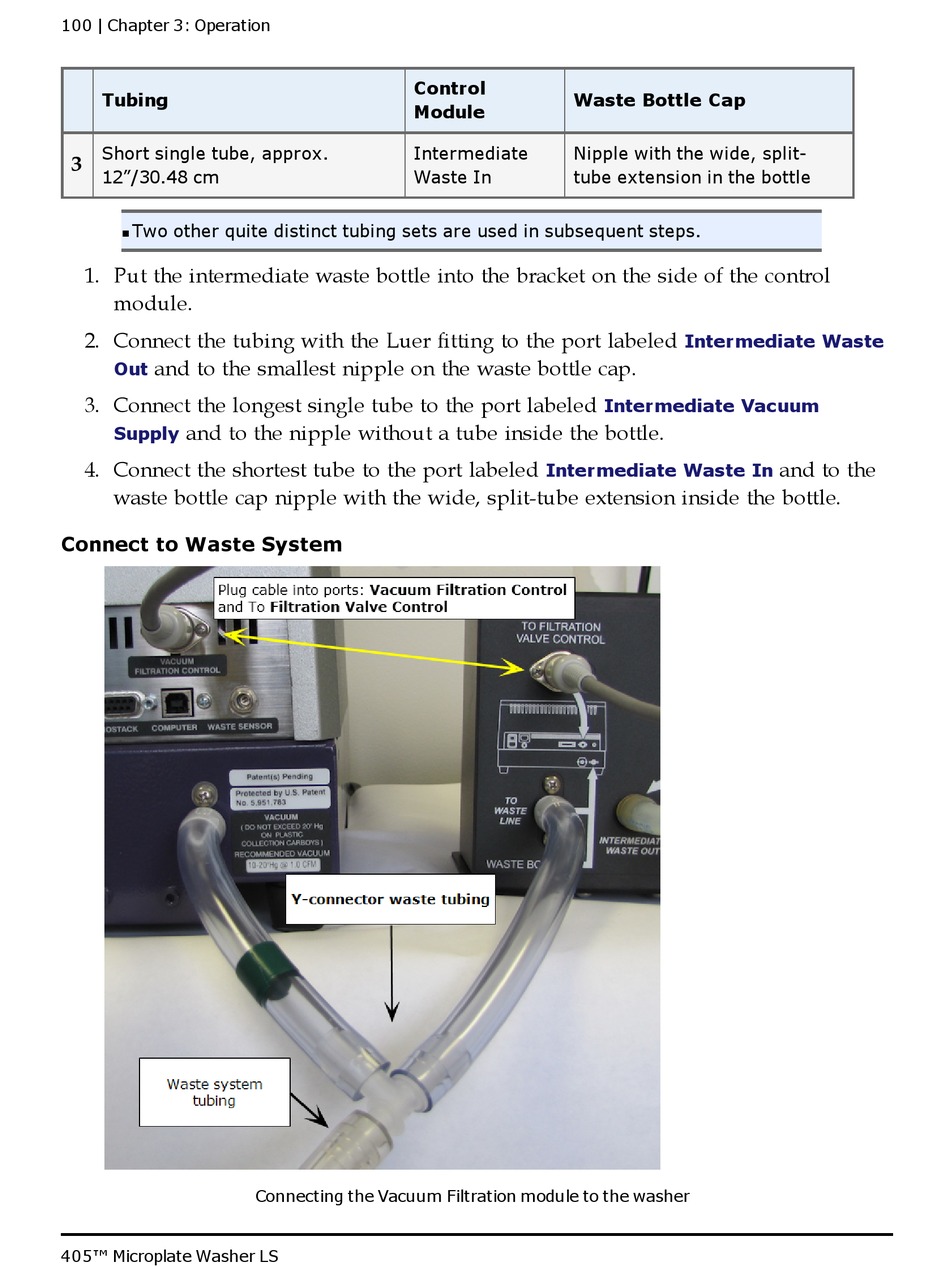

Connecting the Vacuum Filtration module to the washer
Waste Bottle Cap
Nipple with the wide, split-
tube extension in the bottle
Intermediate Waste
Intermediate Vacuum
Intermediate Waste In
and to the
