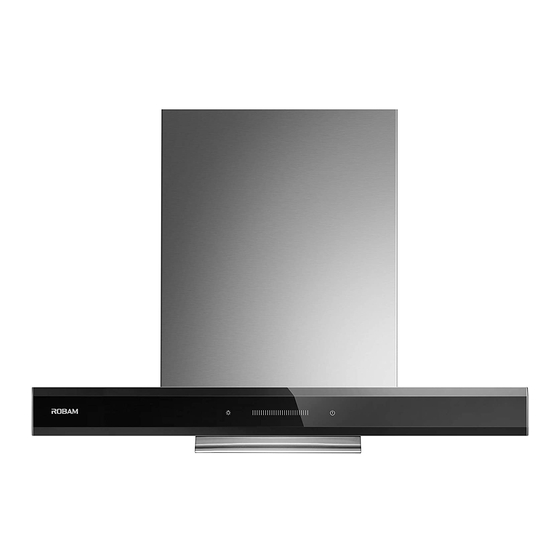

Page 1: Range Hood
User Manual Before operating this unit, please read the user manual completely and keep it. If the manual is lost, you can send e-mail to overseas@robam.com, request for an electronic manual. CXW-200-A831 Range Hood... -
Page 2: Table Of Contents
CONTENTS Safety Precaution........................21 Important Information......................26 Product Description .......................26 Packing List...........................27 Installation..........................28 User Manual..........................35 Maintenance.........................35 Removal of Components.......................36 Circuit Diagram........................38 Troubleshooting of General faults..................39... -
Page 3: Read And Save These Instructions
Wet Hand Disassembly Earthed Execution Electric Shock Please use this product according to manual strictly, or ROBAM shall not take any responsible Warning caused by improper operation. Danger Don't allow children or weakling to use range hood separately, or it may cause electric shock or other accident. - Page 4 Range Hood Danger Please turn off range hood immediately if pan got fire (range hood shall aggravate fire if it’s working) and extinguish fire by effective action. Strict For example, cover flame by metal cover, turn off gas valve immediately Execution and remove inflammable things.
- Page 5 Range Hood Warning There shall be adequate ventilation of the room when the range hood is Strict used at the same time as appliances burning gas or other fuels. Execution For Residential Use Only.And it’s not allowed to exhaust dangerous or explosive matter or air.
- Page 6 Range Hood Warning TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. b) Always turn hood ON when cooking at high heat or when flambeing Strict food (i.e.
- Page 7 Range Hood Warning Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance. Strict Execution This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction Strict...
-
Page 8: Important Information
If it’s necessary, please read manual for gas hob. And please keep these manual carefully for future reference. If range hood has obvious damage, please don’t electrify and contact operator. Product Description Technical Data Rated Power Input 202W Model CXW-200-A831 Power Supply Rated Main Motor Power Input 200W 120V~ 60Hz 500Pa Nominal Wind Pressure (29- / ×21- /... -
Page 9: Packing List
Range Hood Size ”(400mm) ”(270mm) ”(540mm) ”(758mm) The size marked is for reference only. Packing List Please check the items in the container upon unpacking Standard Offerings Flexible aluminum duct Range hood User Manual Check valve Plastic expansion pipe 4×60wood screw Gasket ST4.2×... -
Page 10: Installation
Range Hood Installation Warning 1.The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels, the discharge of air must fulfill the requirements of local regulations. 2.Note that when installing the metal expansion pipe, the pipe shall match with the hole in size. Overlarge hole is prohibited, as it will result in loose pipe and accidental drops. - Page 11 Range Hood Notice ● Installation and circuit setting must be done by experienced professionals. Only a professionally trained person with an installation qualification can install the hood. Non-professionals are not allowed to install, dismantle and repair the hood. ●Please do not power on the hood before installation to avoid electric shock. ●...
- Page 12 Range Hood 3. Determine the positions to fix the hitching leg and the hitching leg stop block. ” ” ” (55mm) (110mm) (55mm) Note: The hitching leg must be fixed on the beam with a screw. ”(10mm) With the stove bearing surface as the base, mark the drill holes in the corresponding position of the wall according to the distance from the hitching leg hole to the bottom of the machine, and the height of the bottom of the hanging cabinet.
- Page 13 Range Hood 6. Pull the two supports of the attached panel of the mainframe with both hands and pull them upward, tear off the protective film of the panel and the attached panel of the mainframe, and insert the attached panel of the mainframe back along the gap between the panel of the mainframe and the shell.
- Page 14 Range Hood 10. At this time, there is still a certain gap between the attached panel of the mainframe and the roof, so the attached panel of the mainframe should be pulled out and pushed to contact with the roof, and then the attached panel of the mainframe should be fixed on the roof with ST4.2×18 screws.
- Page 15 Range Hood ” ” ” (55mm) (110mm) (55mm) ”(10mm) ” ” Drill a hole 2- / -2- / (60-70mm) deep (not too large) at the mark with a drill bit with a diameter of (8mm) , press the expansion pipe into the hole, and reliably fix the hitching leg with 4×60mm wood screws supplied with the machine. Use a level ruler to make sure the hitching leg is in a horizontal position.
- Page 16 Range Hood 7. Pull the two supports of the attached panel of the mainframe with both hands and pull them upward, tear off the protective film of the panel and the attached panel of the mainframe, and insert the attached panel of the mainframe back along the gap between the panel of the mainframe and the shell.
-
Page 17: User Manual
Range Hood . After installation, the whole machine must be kept horizontal. In the end, insert the oil cup into the hitching leg on the bottom of the mesh enclosure and power it for trial operation. User Manual Switch control panel Lighting Airflow control strip Power... -
Page 18: Removal Of Components
Range Hood Considerations ●The hood shall be cleaned and maintained regularly depending on the surroundings, so as to keep its cleanness & efficiency and extend its service life. We recommend that: Clean the outer surface of range hood after each cooking. ●It is recommended to use a neutral detergent to clean instead of strong detergents, and dry with a soft cloth. - Page 19 Range Hood Switch removal Unplug the power plug; 2. Unscrew two screws from the cover plate and remove it; 3. Unscrew the two screws on the switch cover plate, rotate and turn inside out the switch cover plate, pull out the switch assembly and unplug the lamp connector terminal to repair or replace the lamp.
-
Page 20: Circuit Diagram
Range Hood In general, the range hood body does not need to remove. The removal needs to be completed by professional maintenance staff. Main hood panel Drawing panel Noise absorption Noise absorption sponge Impeller sponge Acoustic baffle Electric motor Acoustic baffle Cover Plate Retaining ring... -
Page 21: Troubleshooting Of General Faults
Range Hood Troubleshooting of General faults Serial Solution Fault Cause number No response after pressing any icon The power plug is not connected (e.g. the impeller does not rotate, Plug in the power plug properly or there is power failure or the light is off) The light is damaged or Pressing the lighting icon, the...
