Kramer Electronics, Ltd.
USER MANUAL
Model:
TP-300FW
FireWire Range Extender

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP-300FW and is the answer not in the manual?

Questions and answers

Related Manuals for Kramer TP-300FW

Summary of Contents for Kramer TP-300FW

  • Page 1 Kramer Electronics, Ltd. USER MANUAL Model: TP-300FW FireWire Range Extender...

  • Page 2: Table Of Contents

    Figure 1: TP-300FW FireWire Range Extender Figure 2: Connecting 2 FireWire Devices (Standard 4.5m Range) Figure 3: Connecting 2 FireWire Devices via 2 TP-300FW Units (Extended 100m Range) Figure 4: Connecting 2 FireWire Devices via 3 TP-300FW Units (Extended 200m Range)
  • Page 3 3. Unplug the 12V power adapter. Notes: Apply the same rules for both source and destination FireWire equipment (that is, first connect the power to both TP-300FW units and only then connect the Firewire cables). When reconnecting two TP-300FW units, first disconnect the cable, and only then reconnect them.
  • Page 4 ADDENDUM: Included with user manuals for machines with a CAT5 connector This addendum describes the Power Connect feature used with Kramer machines, and the choice between STP and UTP CAT5 cables. Power Connect Feature The Power Connect feature lets you power a transmitter / receiver system by connecting just one power adapter to either the transmitter or the receiver.
  • Page 5 1 For example: model number AD2512C, part number 2535-000251 – No operator-serviceable parts inside unit. – Use only the Kramer Electronics input power – Disconnect power and unplug unit from wall 2900-9999992...

  • Page 6: Introduction

    GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com/manuals.html 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com (click “Cables and Connectors” in the Products section)
  • Page 7 The TP-300FW FireWire Range Extender is based on FireWire which: • Is a serial bus standard digital video, audio and data, and computer hardware items • Is simple to use and operates independently of the host system letting you connect items for extended distances •...

  • Page 8: Your Tp-300Fw Firewire Range Extender

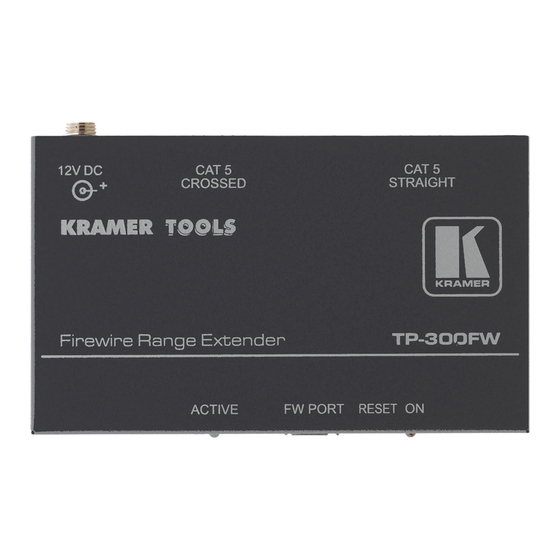

    Your TP-300FW FireWire Range Extender Your TP-300FW FireWire Range Extender Figure 1 and Table 1 define the TP-300FW FireWire Range Extender: Figure 1: TP-300FW FireWire Range Extender Table 1: TP-300FW FireWire Range Extender Features Feature Function 12V DC +12V DC connector for powering the unit...

  • Page 9: Connecting 2 Firewire Devices Via 2 Tp-300Fw Units

    Figure 3: Connecting 2 FireWire Devices via 2 TP-300FW Units (Extended 100m Range) 1 Alternatively, connect the CAT 5 Crossed RJ45 connector on the first TP-300FW unit to the CAT 5 Straight RJ45 connector on the second TP-300FW unit...

  • Page 10: Connecting 2 Firewire Devices Via Several Tp-300Fw Units

    Figure 4: Connecting 2 FireWire Devices via 3 TP-300FW Units (Extended 200m Range) 1 Alternatively, connect the CAT 5 Crossed RJ45 connector on the first TP-300FW unit to the CAT 5 Straight RJ45 connector on the second TP-300FW unit, and connect the CAT 5 Crossed RJ45 connector on the second TP-300FW unit to...

  • Page 11: Technical Specifications

    12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98", W, D, H) WEIGHT: 0.3 kg. (0.67 lbs.) approx. ACCESSORIES: Power supply, mounting bracket 1 Specifications are subject to change without notice Technical Specifications of the TP-300FW FireWire Range Extender KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 12 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
  • Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com. Updates to this user manual may be found at http://www.kramerelectronics.com/manuals.html. We welcome your questions, comments and feedback. Kramer Electronics, Ltd. Web site: www.kramerelectronics.com E-mail: info@kramerel.com...
