Kramer Electronics, Ltd.
USER MANUAL
Model:
TP-400FW
FireWire Range Extender

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP-400FW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kramer TP-400FW

Summary of Contents for Kramer TP-400FW

  • Page 1 Kramer Electronics, Ltd. USER MANUAL Model: TP-400FW FireWire Range Extender...

  • Page 2: Table Of Contents

    Figure 1: TP-400FW FireWire Range Extender Figure 2: Connecting 2 FireWire Devices (Standard 4.5m Range) Figure 3: Connecting 2 FireWire Devices via 2 TP-400FW Units (Extended 100m Range) Figure 4: Connecting 2 FireWire Devices via 3 TP-400FW Units (Extended 200m Range)
  • Page 3 ADDENDUM: TP-400FW This addendum clarifies that only SHIELDED CABLES should be used with the TP-400FW. Amendment to Section 3 In the following text— Enables 1394 100Mbps signals to be transmitted and received across an extended range on unshielded twisted pair cable—the word “unshielded”...
  • Page 4 ADDENDUM: Included with user manuals for machines with a CAT5 connector This addendum describes the Power Connect feature used with Kramer machines, and the choice between STP and UTP CAT5 cables. Power Connect Feature The Power Connect feature lets you power a transmitter / receiver system by connecting just one power adapter to either the transmitter or the receiver.

  • Page 5: Introduction

    3 We recommend that you use only the power cord that is supplied with this machine 4 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com/manuals.html 5 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com (click “Cables and Connectors” in the Products section)
  • Page 6 Access the FireWire port from both the front and rear panels Interconnect up to six TP-400FW units (together with the FireWire sources/acceptors) that derive their power from the first local TP-400FW unit, with a total current of up to 1.5A/12V...

  • Page 7: Your Tp-400Fw Firewire Range Extender

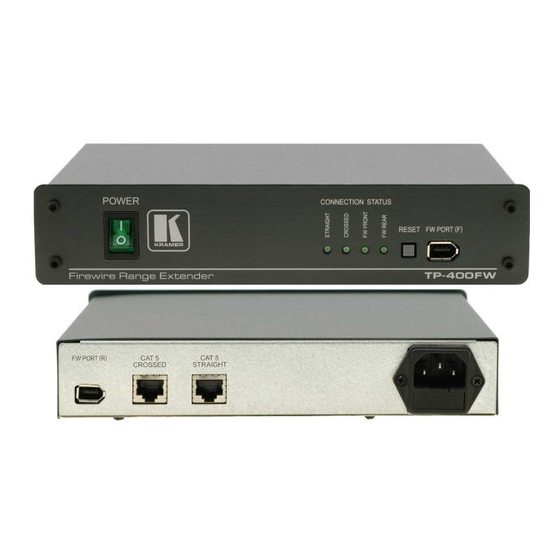

    Your TP-400FW FireWire Range Extender Your TP-400FW FireWire Range Extender Figure 1, Table 1 and Table 2 define the TP-400FW: Figure 1: TP-400FW FireWire Range Extender Table 1: Front Panel TP-400FW FireWire Range Extender Features Feature Function POWER Switch Illuminated switch for turning the unit ON or OFF...

  • Page 8: Using Your Tp-400Fw Firewire Range Extender

    2 We recommend that you use only the power cord that is supplied with this machine 3 Alternatively, connect the CAT-5 Crossed RJ45 connector on the first TP-400FW unit to the CAT-5 Straight RJ45 connector on the second TP-400FW unit...

  • Page 9: Connecting 2 Firewire Devices Via Several Tp-400Fw Units

    5 in Table 1). Notes: Apply the same rules for both source and destination FireWire equipment (that is, first connect the power to both TP-400FW units and only then connect the Firewire cables) When reconnecting two TP-400FW units, first disconnect the cable, and...

  • Page 10: Figure 4: Connecting 2 Firewire Devices Via 3 Tp-400Fw Units (Extended 200M Range)

    2 We recommend that you use only the power cord that is supplied with this machine 3 Alternatively, connect the CAT 5 Crossed RJ45 connector on the first TP-400FW unit to the CAT 5 Straight RJ45 connector on the second TP-400FW unit, and connect the CAT 5 Crossed RJ45 connector on the second TP-400FW unit to...

  • Page 11: Technical Specifications

    22cm x 18cm x 4.5cm (8.7" x 7" x 1.7") W, D, H. WEIGHT: 1.3 kg (2.9 lbs.) approx. ACCESSORIES: Power cord OPTIONS: RK 80 19" rack kit 1 Specifications are subject to change without notice Technical Specifications of the TP-400FW FireWire Range Extender...
  • Page 12 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
  • Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com. Updates to this user manual may be found at http://www.kramerelectronics.com/manuals.html. We welcome your questions, comments and feedback. Kramer Electronics, Ltd. Web site: www.kramerelectronics.com E-mail: info@kramerel.com...
