Summary of Contents for Kramer TA-110HD
- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: TA-110HD XGA Line Transmitter...
-
Page 2: Table Of Contents
Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors Technical Specifications Figures Figure 1: TA-110HD XGA Line Transmitter (Front and Rear Panels) Figure 2: XGA-to-Twisted Pair Transmitter and Receiver System via UTP Cable Figure 3: CAT 5 PINOUT... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction... -
Page 4: About The Power Connect Feature
1 CAT5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances Overview KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Ta-110Hd Xga Line Transmitter
3.3 TA-110HD XGA Line Transmitter The TA-110HD is a modular unit that can be mounted inside the Power Tower, by sliding the unit onto the rails on the connection panel Using a XGA Line Transmitter—the TA-110HD with a receiver (for example, the PT-120 or TP-120) constitutes a VGA/XGA-to-Twisted Pair Transmitter and Receiver. -
Page 6: Your Ta-110Hd Xga Line Transmitter

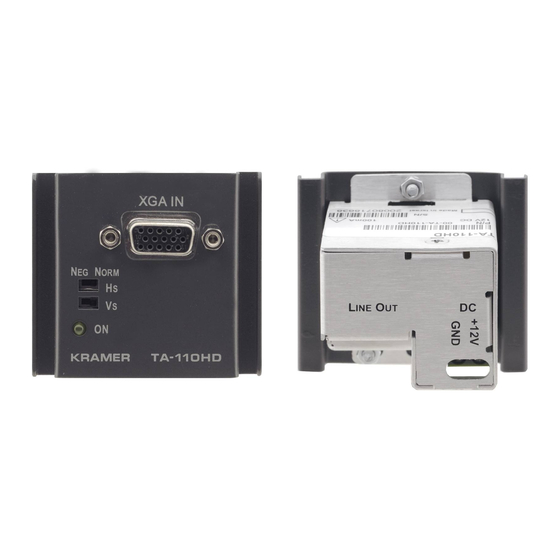

Your TA-110HD XGA Line Transmitter Your TA-110HD XGA Line Transmitter Figure 1 and Table 1 define the TA-110HD: Front Panel Figure 1: TA-110HD XGA Line Transmitter (Front and Rear Panels) Table 1: TA-110HD XGA Line Transmitter Features Feature XGA IN HD15F Connector... -
Page 7: Mounting The Ta-110Hd
6. If necessary, set the HS and VS switches 1 For distances of up to 50 meters you can connect a power adapter to either the TA-110HD or TP-120. Above it, both sides should be fed with power... -
Page 8: Wiring The Cat 5 Line In / Line Out Rj-45 Connectors
Green / White Blue Blue / White Green Brown / White Brown Pair 1 4 and 5 Pair 2 1 and 2 Pair 3 3 and 6 Pair 4 7 and 8 Figure 3: CAT 5 PINOUT KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Technical Specifications
DIMENSIONS: WEIGHT: ACCESSORIES: 1 Specifications are subject to change without notice 2 For the Transmitter/Receiver pair Technical Specifications of the TA-110HD 1 VGA / UXGA on an HD15 connector 1 RJ-45 LINE OUTPUT connector Up to UXGA 2.9% 0.3 Deg <0.05%... - Page 10 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 11 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
