Step 1: Installing the MX Digital Loop Card
Installation of
the 4100-6077
in Card Cage
LT0638 Iss 1.1 7/2017
The MX Digital Loop Card mounts in a Cardcage/PDI bay of a 4100ESi panel. It can be
mounted on any available block - see Figure 2. Secure with the screws supplied in the MX
Digital Loop Card kit.

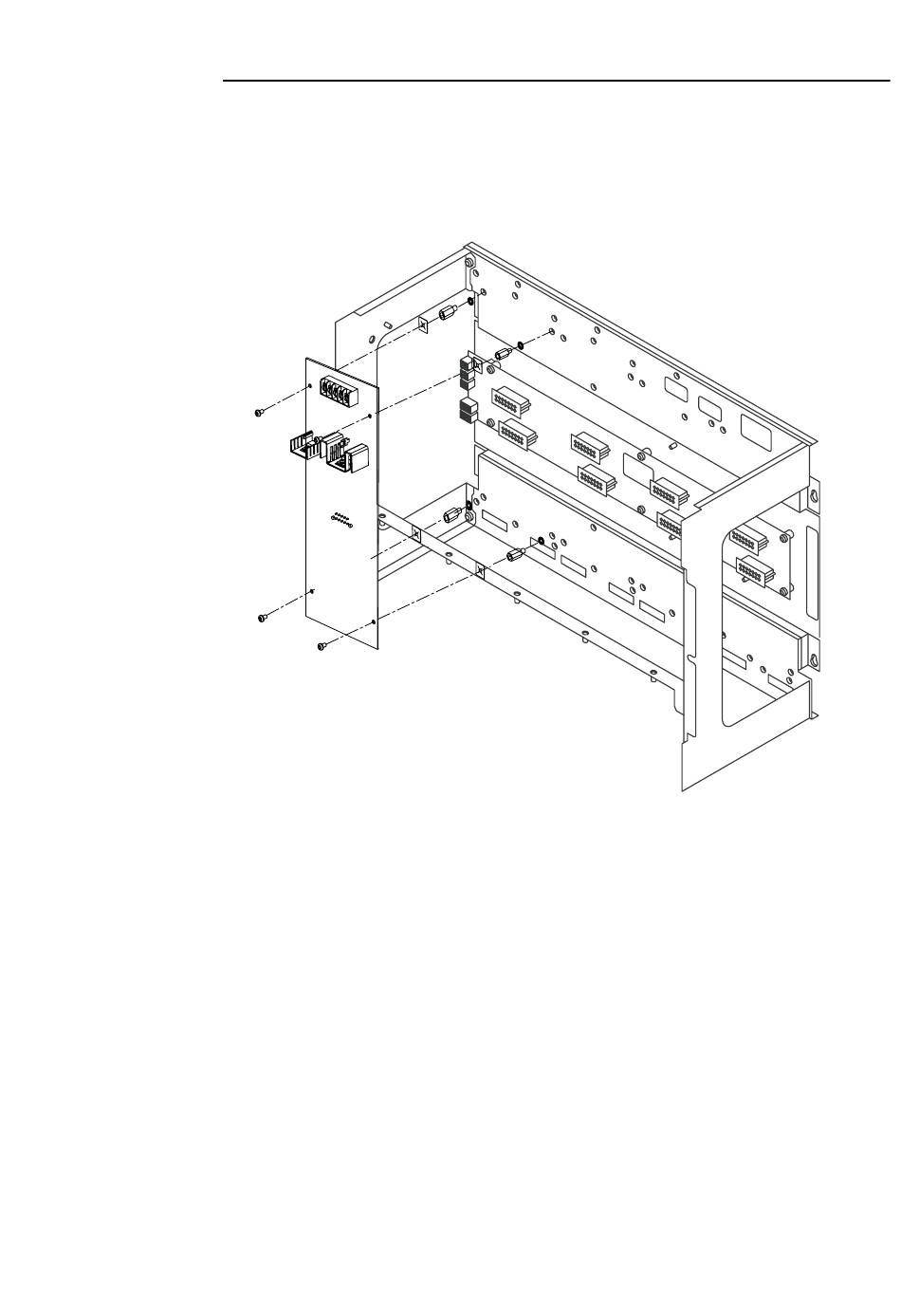

Figure 2. 4100ESi MX Digital Loop Card Installation
