Tyco Electronics 9-1478246-0 Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use
and low volume applications. A wide selection of powered application equipment for extended-use, production operations is available.
Anvil Die
1. INTRODUCTION
This instruction sheet covers the use and maintenance
of Hex Crimping Die 9-1478246-0 (in their various
configurations - denoted by the dash number following
the base part number), used in Hand Tool Frame
9-1478240-0. The die crimps plug connectors onto
coaxial cable. See Figure 1 for a list of the cable sizes
the die set can crimp.
This tool was designed primarily for GREENPAR
connectors.
Reason for revision may be found in Section 8,
REVISION SUMMARY.
All dimensions are in millimeters [with inches in
NOTE
brackets].
i
©2010 Tyco Electronics Corporation, Berwyn, PA
All Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names might be trademarks of their respective owners.
Arrow.com.
Downloaded from

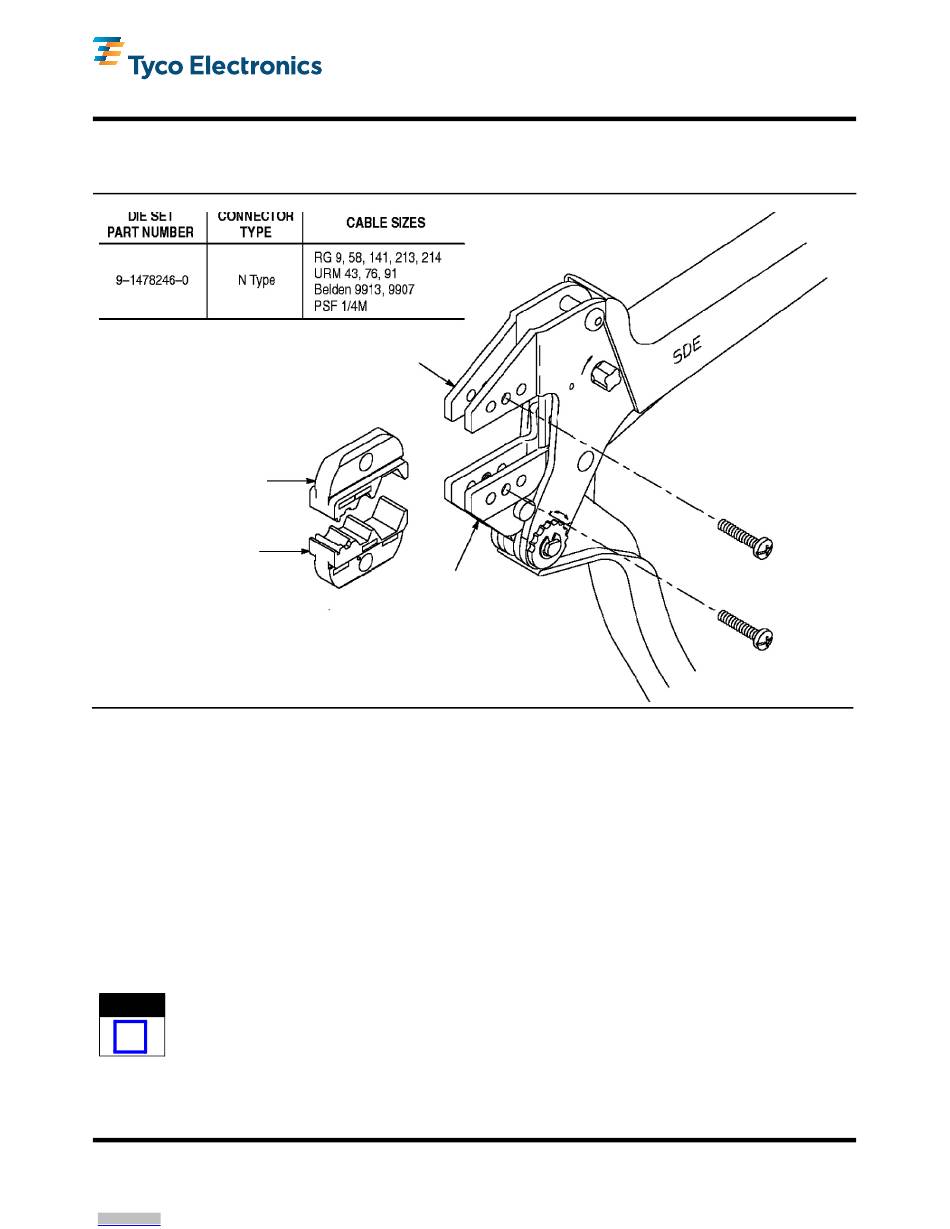

Hex Crimp Die Assembly
9-1478246-0 (used in the SDE-SA
Hand Tool Assembly)
Stationary Jaw
Nest Die
Die Assembly
9-1478246-0
GREENPAR is a trademark of GREENPAR Limited Company. Essex, England
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Moving Jaw
Figure 1
2. DESCRIPTION
Each die assembly consists of a nest die and an anvil
die. When closed, the dies form three crimping
chambers which crimp the center contact and ferrule
of the connector onto the coaxial cable. Each die is
held in the tool by a single screw.
3. DIE INSTALLATION
1. Close the tool handles until the ratchet
releases and then allow them to open fully.
2. See Figure 1 for normal orientation of the dies.
Insert the dies inside the tool jaws and align the
retaining screw holes.
3. Thread the retaining screws into the holes and
carefully close the tool handles. Tighten the
screws with the appropriate hex wrench
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-8697
01 OCT 10 Rev B
SDE-SA Hand Tool
Frame 9-1478240-0
1 of 3
LOC B
