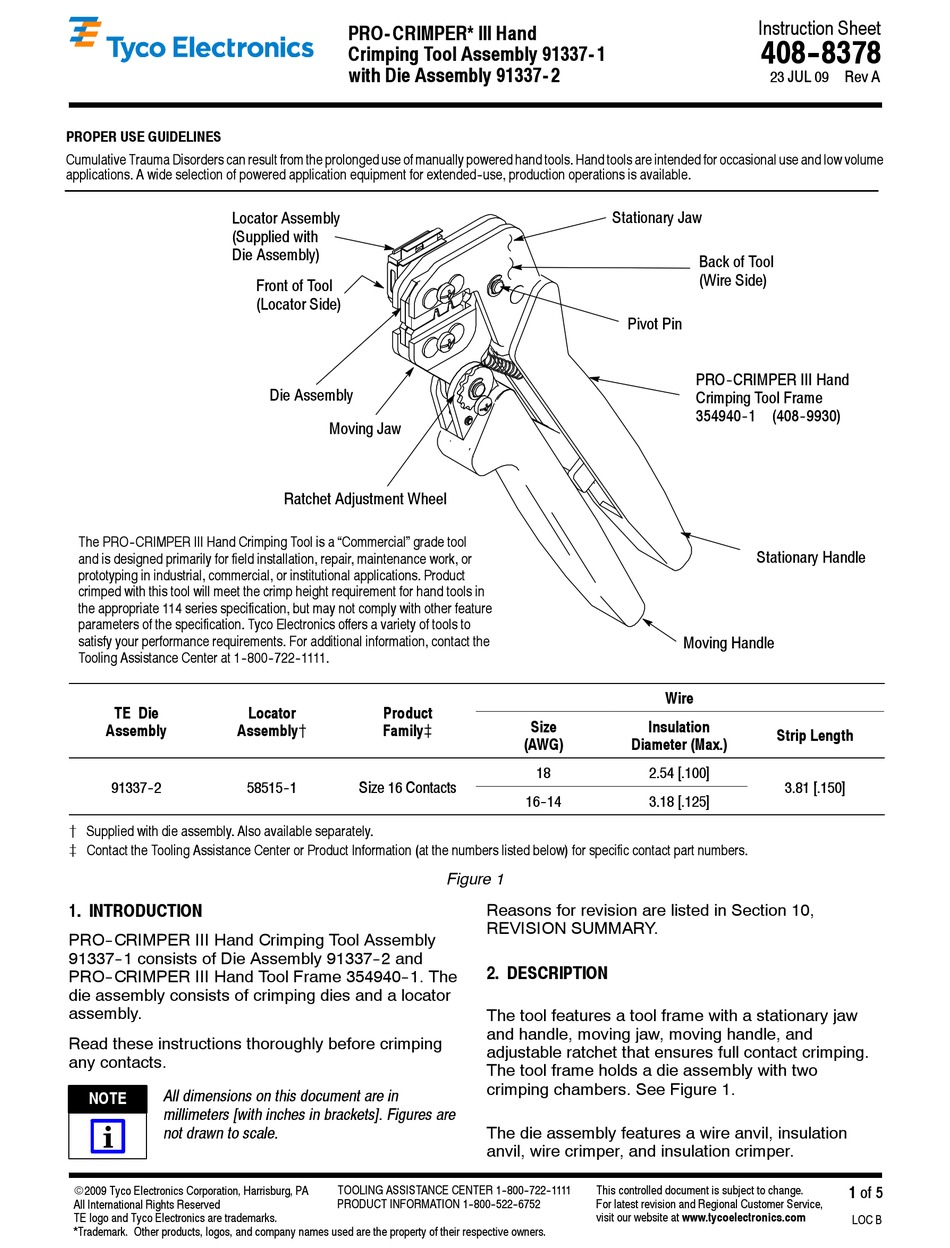

Tyco Electronics PRO- CRIMPER III Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended- - use, production operations is available.
Locator Assembly
(Supplied with
Die Assembly)

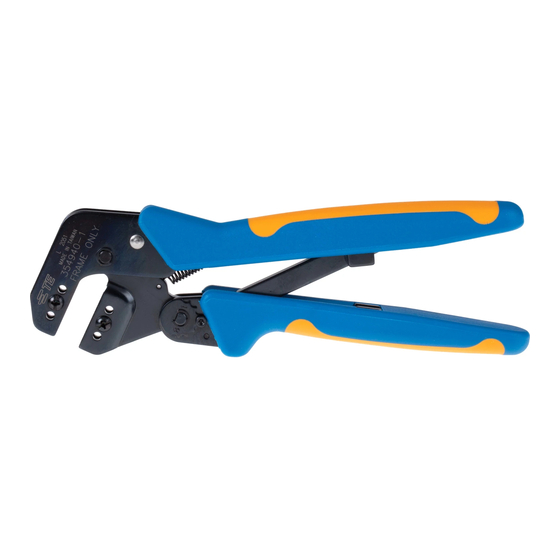

The PRO- - CRIMPER III Hand Crimping Tool is a "Commercial" grade tool
and is designed primarily for field installation, repair, maintenance work, or
prototyping in industrial, commercial, or institutional applications. Product
crimped with this tool will meet the crimp height requirement for hand tools in
the appropriate 114 series specification, but may not comply with other feature
parameters of the specification. Tyco Electronics offers a variety of tools to
satisfy your performance requirements. For additional information, contact the
Tooling Assistance Center at 1- - 800- - 722- - 1111.
TE Die TE Die
Assembly Assembly{
91337--2 91337 2
{ Supplied with die assembly. Also available separately.
} Contact the Tooling Assistance Center or Product Information (at the numbers listed below) for specific contact part numbers.
1. INTRODUCTION
PRO--CRIMPER III Hand Crimping Tool Assembly
91337--1 consists of Die Assembly 91337--2 and
PRO--CRIMPER III Hand Tool Frame 354940--1. The
die assembly consists of crimping dies and a locator
assembly.
Read these instructions thoroughly before crimping
any contacts.
All dimensions on this document are in
NOTE
millimeters [with inches in brackets]. Figures are
i
not drawn to scale.
E2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
PRO- CRIMPER* III Hand
Crimping Tool Assembly 91337- 1
with Die Assembly 91337- 2
Front of Tool
(Locator Side)
Die Assembly
Moving Jaw
Ratchet Adjustment Wheel
Locator Locator Product Product
Family}
58515--1 58515 1 Size 16 Contacts Size 16 Contacts
TOOLING ASSISTANCE CENTER 1- - 800- - 722- - 1111
PRODUCT INFORMATION 1- - 800- - 522- - 6752
Stationary Jaw
Size
(AWG)
18
16--14
Figure 1
Reasons for revision are listed in Section 10,
REVISION SUMMARY.
2. DESCRIPTION
The tool features a tool frame with a stationary jaw
and handle, moving jaw, moving handle, and
adjustable ratchet that ensures full contact crimping.
The tool frame holds a die assembly with two
crimping chambers. See Figure 1.
The die assembly features a wire anvil, insulation
anvil, wire crimper, and insulation crimper.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408- - 8378
23 JUL 09 Rev A
Back of Tool
(Wire Side)
Pivot Pin
PRO- - CRIMPER III Hand
Crimping Tool Frame
354940- - 1 (408- - 9930)
Stationary Handle
Moving Handle
Wire
Insulation
Strip Length
Diameter (Max.)
2.54 [.100]
3.81 [.150] 3 81 [ 150]
3.18 [.125]
1 of 5
LOC B
