PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
Insulation Crimp
Adjustment Lever

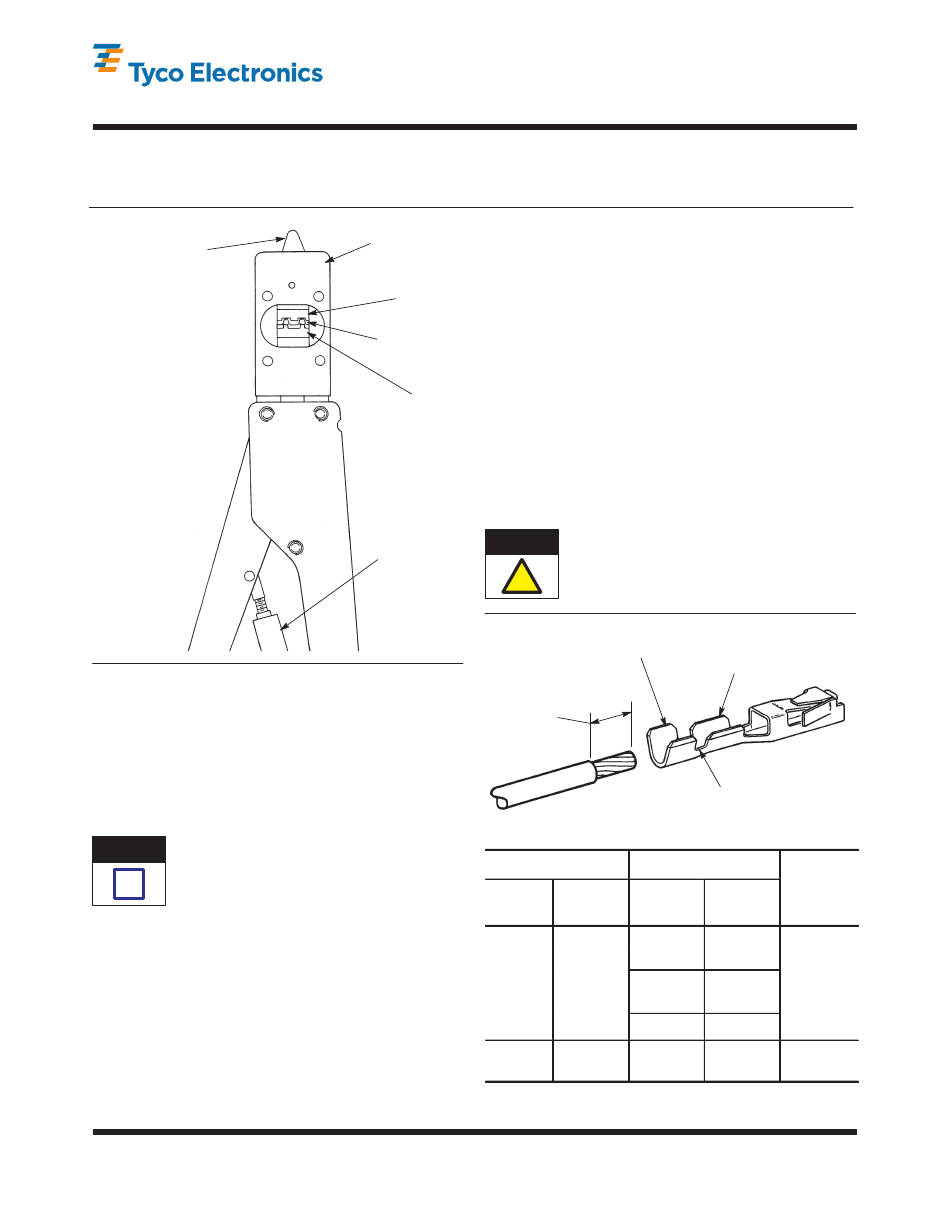

Figure 1
1. INTRODUCTION
AMP* Hand Crimping Tool 90301–2 is designed to
crimp the Tandem Spring loose piece (LP) contacts
listed in Figure 1. Read these instructions thoroughly
before using the tool.
All dimensions in this document are in millimeters
NOTE
[with inches in brackets]. Illustrations are not
drawn to scale.
i
Reasons for reissue of this instruction sheet are
provided in Section 7, REVISION SUMMARY.
2. DESCRIPTION
(Figure 1)
This tool features two fixed dies (crimpers), two
movable dies (anvils), an insulation crimp adjustment
lever, a contact locator/insulation stop, an inner and
outer contact support, and a CERTI–CRIMP hand
crimping tool ratchet control.
E
2008 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
Hand Crimping Tool 90301-2
Front of Tool
(Contact Side)
Contact
Support
Crimpers
90301-2
Anvils
CERTI-CRIMP
Hand Crimping
Tool Ratchet
Control
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
The insulation crimp adjustment lever is used to
regulate the crimp height of the contact insulation
barrel. For detailed information on using the
adjustment lever, refer to Section 4, INSULATION
CRIMP ADJUSTMENT.
The contact locator/insulation stop positions the
contact between the crimping dies. In addition, the
locator/insulation stop aids in locating the wire in the
contact. In use, it rests in the contact locator slot. See
Figures 2 and 3.
The inner and outer contact supports prevent the
contact from bending during the crimping operation.
The CERTI–CRIMP ratchet ensures full crimping of
the contact. Once engaged, the ratchet will not
release until the tool handles have been fully closed.
The crimping dies bottom before the ratchet
CAUTION
releases. This is a design feature that ensures
maximum electrical and tensile performance of
!
the crimp. Do NOT re-adjust the ratchet.
Insulation Barrel
Strip Length
3.56 [.140]
WIRE
CONTACT NUMBER
I NSUL
SIZE
LOOSE
(AWG)
DIA
PIECE
530553-5
-7
0.91 - 1.42
26 to 22
531216-2,
[.036-.056]
-4
531224-7
0.64 - 1.37
530901-3,
32 to 28
[.025-.054]
-5, -7
Figure 2
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-7909
25 NOV 08
Rev C
Wire Barrel
Locator Slot
CRIMP
SECTION
SECTION
(Wire Size
STRIP
Marking)
530553-2,
,
-4, -6
26-22
531216-1,
-3
531224-6
530901-2,
32-28
-4, -6
1 of 4
