Tyco Electronics PRO- CRIMPER III Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended- - use, production operations is available.
The PRO- - CRIMPER III Hand Crimping Tool Assembly is a "Commercial"
grade tool and is designed primarily for field installation, repair, maintenance
work, or prototyping in industrial, commercial, or institutional applications.
Product crimped with this tool will meet the crimp height requirement for hand
tools in the appropriate 114 series specification, but may not comply with other
feature parameters of the specification. Tyco Electronics offers a variety of
tools to satisfy your performance requirements. For additional information,
contact the Tooling Assistance Center at 1- - 800- - 722- - 1111.
Locator Locator
TE Die Assembly
Assembly{
91304 2 91304--2 58662 1 58662--1
{ Supplied with die assembly. Also available separately.

1. INTRODUCTION

PRO--CRIMPER III Hand Crimping Tool Assembly
91304--1 consists of Die Assembly 91304--2 and
PRO--CRIMPER III Hand Tool Frame 354940--1. The
tool is used to crimp the contacts onto the wire size
listed in Figure 1.
Read these instructions thoroughly before crimping
E2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.

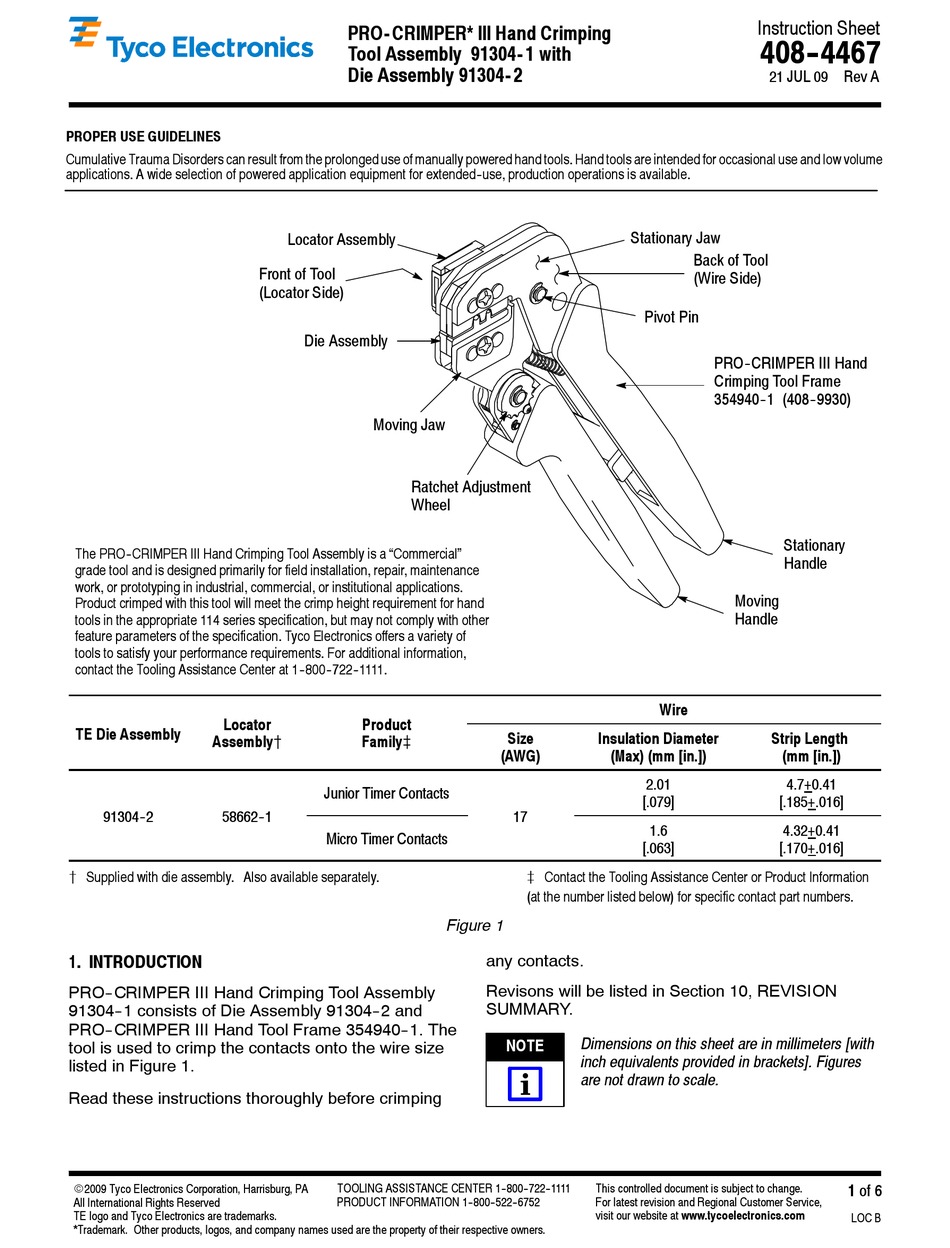

PRO- CRIMPER* III Hand Crimping
Tool Assembly 91304- 1 with
Die Assembly 91304- 2
Locator Assembly
Front of Tool
(Locator Side)
Die Assembly
Moving Jaw
Ratchet Adjustment
Wheel
Product Product
Family}
Junior Timer Contacts
Micro Timer Contacts
TOOLING ASSISTANCE CENTER 1- - 800- - 722- - 1111
PRODUCT INFORMATION 1- - 800- - 522- - 6752
Size Insulation Diameter
(AWG) (Max) (mm [in.])
17 17
} Contact the Tooling Assistance Center or Product Information
(at the number listed below) for specific contact part numbers.
Figure 1
any contacts.
Revisons will be listed in Section 10, REVISION
SUMMARY.
Dimensions on this sheet are in millimeters [with
NOTE
inch equivalents provided in brackets]. Figures
i
are not drawn to scale.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408- - 4467
21 JUL 09 Rev A
Stationary Jaw
Back of Tool
(Wire Side)
Pivot Pin

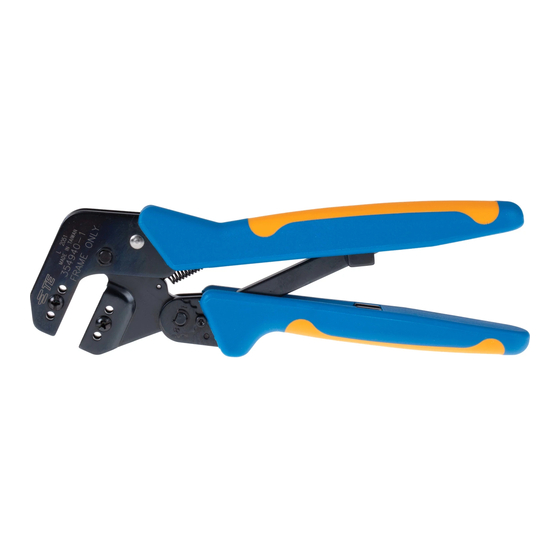

PRO- - CRIMPER III Hand
Crimping Tool Frame
354940- - 1 (408- - 9930)
Stationary
Handle
Moving
Handle
Wire
Strip Length
(mm [in.])
2.01 4.7+0.41
[.079] [.185+.016]
1.6 4.32+0.41
[.063] [.170+.016]
1 of 6
LOC B
