PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended- - use, production operations is available.
Wire Size
Marking (Ref)
Terminal
Locator
Crimping
Jaws
WIRE
SIZE
INSULATION
(AWG)
DIA (mm [in.])
26
26
1.02- - 2.03
1.02--2.03
[.040--.080]
24--22
24 22
2.03--2.92
26
[.080--.115]
1.52- - 2.54
1.52--2.54
20 18
20--18
[.060--.100]
2.03--2.92
2.03- - 2.92
16
16
[.080--.115]
1. INTRODUCTION

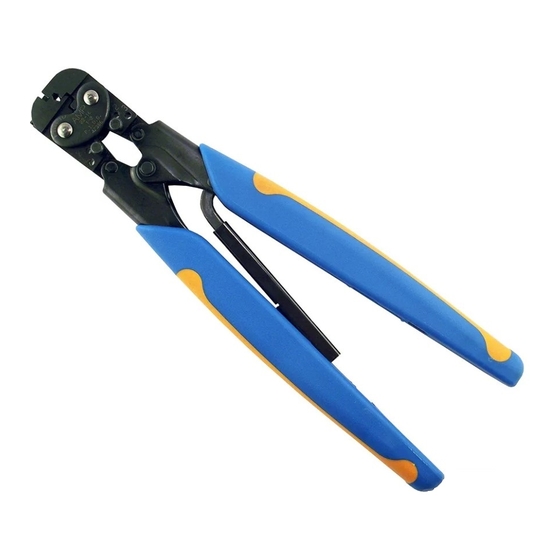

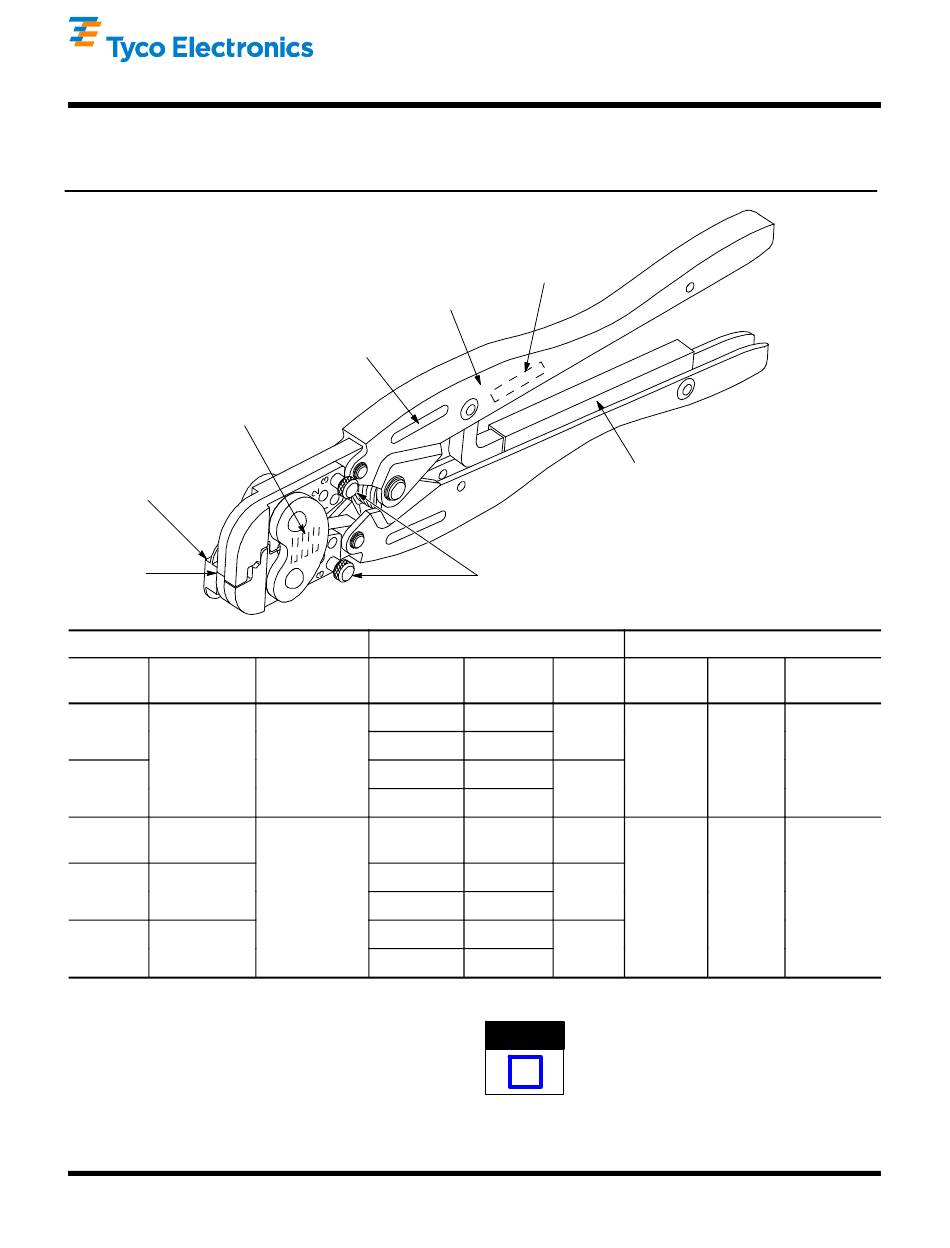

Hand Crimping Tools 90015 and 90016 crimp the
PIDG* taper pin terminals (listed in Figure 1) onto
wire sizes 26 through 16 AWG. Read these
instructions thoroughly before crimping any terminals.
E2010 Tyco Electronics Corporation, Berwyn, PA
All Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other product names, logos, or company names might be trademarks of their respective owners.
Hand Crimping Tools 90015 and 90016
Back Side
of Tool
Color Code
Marking
STRIP LENGTH
BASE PART
(mm [in.])
NUMBER
42927
66059
3.96 [.156]
3 96 [ 156]
42574
42633
66129
42575
4.75 [.187]
42634
42637
42646
TOOLING ASSISTANCE CENTER 1- - 800- - 722- - 1111
PRODUCT INFORMATION 1- - 800- - 522- - 6752
Tool Part
Number (Ref)
CERTI- - CRIMP*
Tool Ratchet
Insulation Crimping
Adjustment Pins
TERMINAL
SHOULDER
SLEEVE
LENGTH
COLOR
Short
Blue
Blue
Long
Short
Yellow
Yellow
Long
Long
Black
Short
White
White
Long
Short
Black
Black
Long
Figure 1
Dimensions in this instruction sheet are in metric
NOTE
units [with U.S. customary units in brackets].
i
Reasons for reissue of this instruction sheet are
provided in Section 7, REVISION SUMMARY.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408- - 1538
25 AUG 10 Rev L
HAND TOOL
PART
COLOR
CRIMP DOT
NUMBER
CODE
CODE
Blue and
Blue and
90015
90015
Yellow
White and
White and
90016
Black
1
1
2
1 of 5
LOC B
