Summary of Contents for LSS OCTO21A

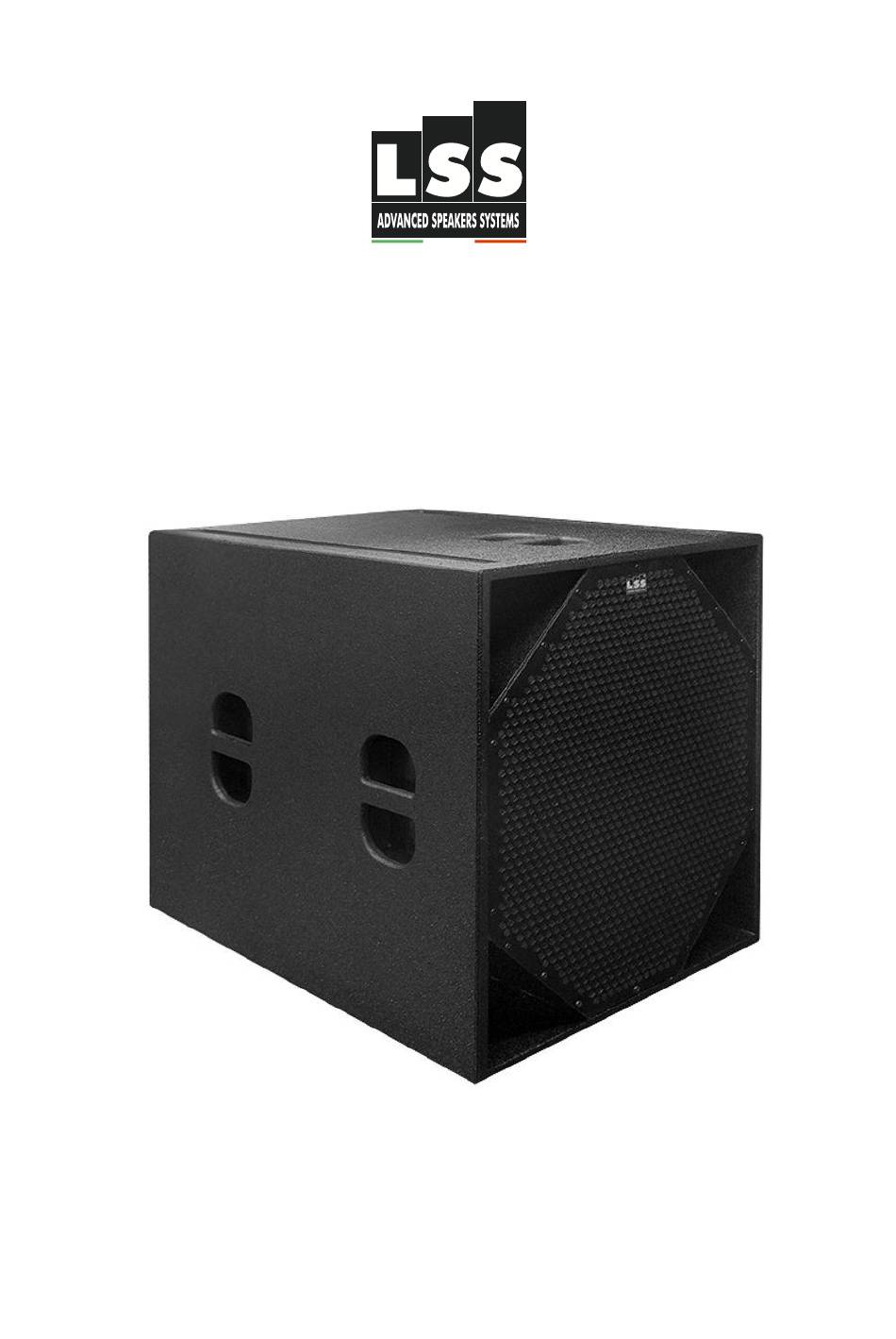

- Page 1 PROFESSIONAL AUDIO SYSTEM OCTO21A OPERATING MANUAL Ver. OCTO21A-EN-1.1 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
- Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
-
Page 3: Table Of Contents
SUMMARY INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................10 DIMENSIONS ..............................11 NOTES ................................13 Operating Manual ver. OCTO21A-EN-1.1 |3... -
Page 4: Introduction
LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions. -
Page 5: Safety And Warning
LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC. -
Page 6: Application
OCTO21A______________________________________________________________________________ APPLICATION LSS's OCTO21A loudspeaker is a reflex subwoofer system that provides high output, low distortion sound reinforcement. OCTO21A was designed for a wide range of professional applications. This system enclosure uses one woofers of 547 mm (21") very high excursion cone with 150 mm (6") voice coil and Neodymium magnet... -
Page 7: Technical Specifications
Birch Plywood of 18 mm [0.71 Enclosure material inches] Texture polyurethanic black Finish paint Powder coated perforated steel MECHANYCAL Grille with anti-dust foam Neutrik XLR In & Out + Connectors AC Power: 240V, Powercon In & Out Accessories Wheels (Included) Operating Manual ver. OCTO21A-EN-1.1 |7... -
Page 8: Installation And Wiring
INSTALLATION AND WIRING OCTO21A must be installed on the floor. It is possible to install more OCTO21A in stack configuration making fit Top Sub’s plastic skids in bottom sub’s recesses. To transport the speaker, use the wheels installed in the rear of the case. - Page 9 You can now use the system. If necessary, adjust the volume by adjusting the potentiometer. WM3A Operating Manual ver. OCTO21A-EN-1.1 |9...
-
Page 10: Weee Directive
Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities. - Page 11 Poor system hissing, grounding or ground Check and correct the system grounding, as required. humming loop If these suggestions do not solve your problem, contact your nearest LSS dealer or LSS distributor. Operating Manual ver. OCTO21A-EN-1.1 |11...
-
Page 12: Dimensions
OCTO21A______________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 80cm 60cm 60cm BOTTOM 12| Operating Manual ver. OCTO21A-EN-1.1... -
Page 13: Notes
______________________________________________________________________________ NOTES Operating Manual ver. OCTO21A-EN-1.1 |13... - Page 14 OCTO21A______________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it 14| Operating Manual ver. OCTO21A-EN-1.1...
