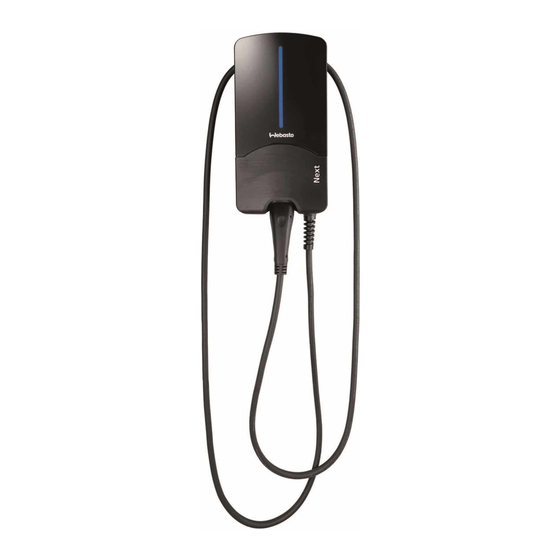

- Page 1 Operating- and Installation instructions Webasto Next English...
-
Page 2: Table Of Contents
16 Declaration of Conformity...... 19 Use of symbols and highlighting........ 3 Warranty and liability ........... 3 17 Technical data........... 20 Software licences ............ 3 18 Checklist for the installation of the Webasto Safety ............ 4 charging station........ 22 General information ............. 4 General safety information ........... 4 Safety information for installation......... 4 Safety information for electrical connection.... 5... -
Page 3: General Information
Installation and commissioning by unqualified staff (not an eration and for the electrician to carry out safe installation of electrician). the Webasto Next charging station. In addition to the "Import- l Improper disposal after decommissioning. ant Information on Operating and Installation Instructions", a... -
Page 4: Safety
(Ex Zone). l It is strictly prohibited to connect other equipment/ l Install the Webasto Next in such a way that the char- devices to the charging station. ging cable does not block any passageways. -
Page 5: Safety Information For Electrical Connection
Before starting-up the charging station, check the charging cable, charging coupling and the charging station for visible damage. The charging station must not be started up if it is damaged or if the charging cable/charging coupling is damaged. 5111232A OI-II Webasto Next 5 / 23... -
Page 6: Unit Description
3 | Unit description 3.2.1 ModBus Unit description The Webasto Next is set up for the use of an extended energy management system via a higher-level electricity meter. This function can be implemented through performing a software update (software available ~Q4 2021). -
Page 7: Description Of Power Supply Interface Connections
NOTE A drill template, which likewise forms part of the scope of delivery, is also available to print out. It must be prin- ted on a 1:1 scale. Check the dimensions after printing. 5111232A OI-II Webasto Next 7 / 23... -
Page 8: Quick Start Guide
7 | Quick Start Guide Quick Start Guide The Webasto Next must be installed Download the required Apps: Open the Webasto Charger Setup by a qualified electrician. app and configure your charging Webasto Charger Setup station. Webasto ChargeConnect Two QR codes are provided for the scan and charge functions;... -
Page 9: Installation And Electrical Connection
90 cm above the ground dur- connection ing installation. See Fig. 13. l If several charging stations are installed next to each other, DANGER a spacing of at least 200 mm must be maintained between Observe the safety information provided here each station. -
Page 10: Criteria For The Electrical Connection
Mount the charging station using 2 screws, 6 x 90 mm, T25 using the mounting holes in the lower connection area. Do not exceed the max. torque of 6 Nm (Newton metres). 10 / 23 5111232A OI-II Webasto Next... - Page 11 To do this, insert the screwdriver in the designated upper opening of the spring relief for the terminal block and open the clamping spring. Now insert the individual wire into the designated connec- tion opening of the terminal block (lower opening). 5111232A OI-II Webasto Next 11 / 23...
-
Page 12: The Electrical Connection
If a data line is also to be connected, use the second sup- ponding terminal. plied cable gland grommet and repeat the above-mentioned Next position the cable bushing in the housing lead- step. through. Remove the sheathing of the lead. -
Page 13: Lan Cable
1 A increments using the Charger Setup app up to the maximum value that is configured by the DIP switch. ON (1) OFF (0) Fig. 10 DIP switch left/ON = 1 DIP switch right/OFF = 0 DIP-switch factory setting: 5111232A OI-II Webasto Next 13 / 23... -
Page 14: Initial Start-Up
WCH000077A Fig. 11 Perform initial operation check and record measured values in test log. The Webasto Charger Setup app can support you in carrying out and documenting this. An EV simulator is used for the measurement at the charging coupling. Simulate and test the individual operating and protection functions with the EV simulator. -
Page 15: Assembly
Assembly | 9 Assembly 116 mm 225 mm Fig. 12 WCH000026A Fig. 13 Hole for cable to building wiring system Hole for LAN cable 5111232A OI-II Webasto Next 15 / 23... -
Page 16: Settings
Dim LED indicator 10.1 WCH000077A Fig. 15 WCH000072A Operating Description To dim the LED display of your Webasto Next, using the indicator Webasto ChargeConnect Portal (WCC) (https:// LED not lit: webastochargeconnect.com/) and follow the instructions. Charging station is off. Operation White chase light running up and down: Charging station is starting up. -
Page 17: Start Charging
Action Description the vehicle. Stop charging cycle at Charging cycle is stopped. The Contact the Webasto Charging Hotline. You can vehicle. LED changes to a blue chase find this on our website at www.webasto-char- light running up and down. ging.com Operating status N5. -
Page 18: Scan & Charge Locking Function
11.5 Scan & Charge locking function Decommissioning the product You can lock free use of your Webasto Next using the "Scan & A decomissioning shall be carried out only by an electrician. Charge" function in the Webasto ChargeConnect app. Disconnect the power supply. - Page 19 The Webasto Next was developed, manufactured, tested and supplied in accordance with the relevant directives, regulations and standards for safety, EMC and environmental compatibility. Webasto Roof & Components SE hereby declares that the radio equipment type "Charging Station Webasto Next" conforms to Directive 2014/53/EU.
- Page 20 IP protection class, device IP54 Protection against mechanical impact IK08 Description Data Installation location No exposure to direct sunlight Operating temperature range (°C) 11 kW: -30 to +55 22 kW: -30 to +45 20 / 23 5111232A OI-II Webasto Next...
- Page 21 2012/19/EU Waste Electrical and Electronic Equipment Directive l 1907/2006 REACH regulation Back end integration Webasto ChargeConnect; connection of third-party back ends via Webasto ChargeConnect in development Tested compatible energy management sys- Integration into various energy management systems (EMS) in development...
- Page 22 The charging cable and coupling has been protected against being driven over, trapped, or any other mechanical haz- ards. The customer/user was informed how the Webasto Next voltage is switched off with the installation-side protective devices. Charging station requirements: The cable bushing for the mains lead and signal cable has been installed during installation.
- Page 23 To request this Installation Documentation in another language, please locate and contact your local Webasto dealer. You can find your nearest dealer at: https://dealerlocator.webasto.com/en-int. Unsere Webasto Charging Hotline finden Sie unter www.webasto- charging.com Webasto Roof & Components SE Kraillinger Str. 5...
