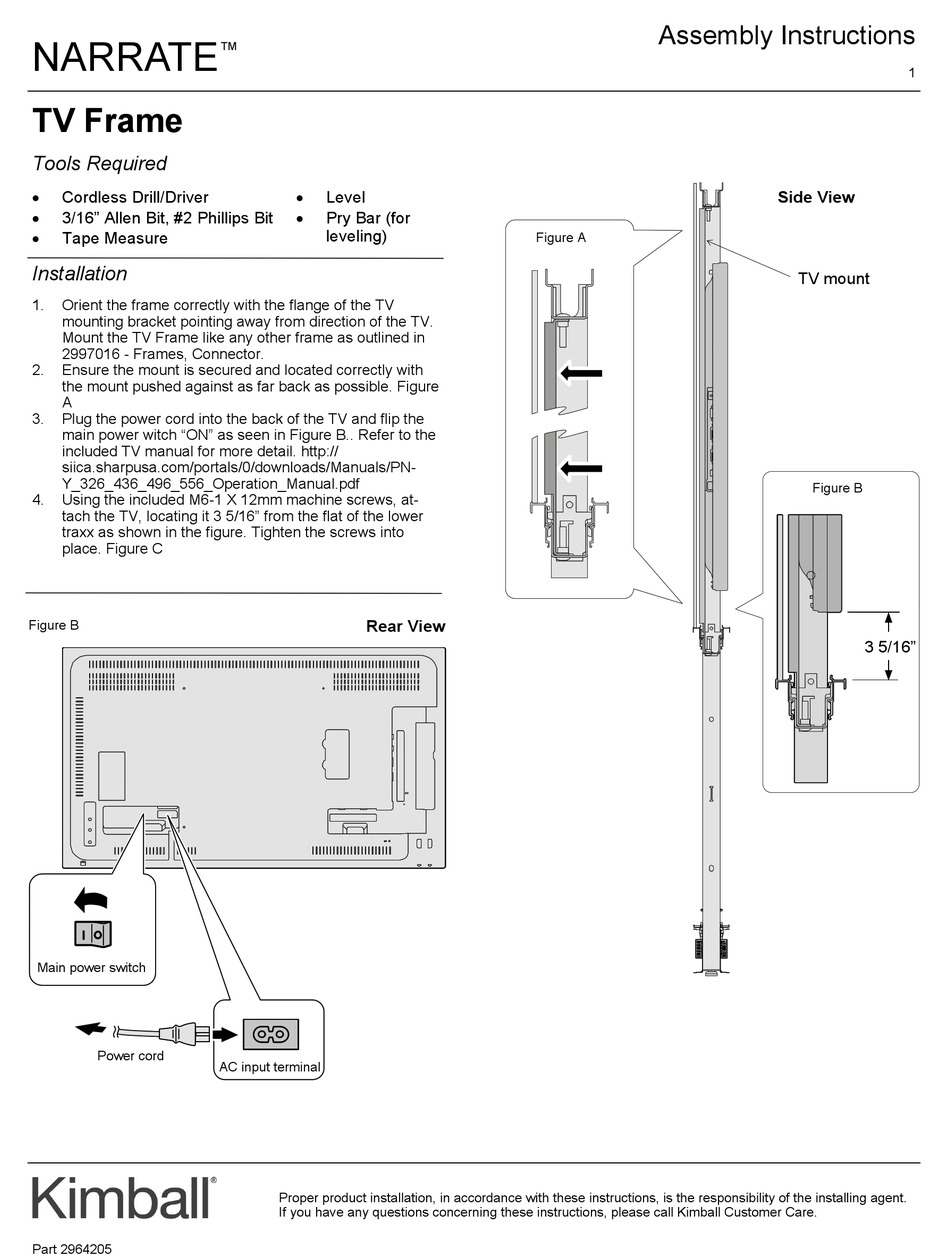

NARRATE
TV Frame

Tools Required

Cordless Drill/Driver
3/16" Allen Bit, #2 Phillips Bit
Tape Measure

Installation

1.
Orient the frame correctly with the flange of the TV
mounting bracket pointing away from direction of the TV.
Mount the TV Frame like any other frame as outlined in
2997016 - Frames, Connector.
2.
Ensure the mount is secured and located correctly with
the mount pushed against as far back as possible. Figure
A
3.
Plug the power cord into the back of the TV and flip the
main power witch "ON" as seen in Figure B.. Refer to the
included TV manual for more detail. http://
siica.sharpusa.com/portals/0/downloads/Manuals/PN-
Y_326_436_496_556_Operation_Manual.pdf
4.
Using the included M6-1 X 12mm machine screws, at-
tach the TV, locating it 3 5/16" from the flat of the lower
traxx as shown in the figure. Tighten the screws into
place. Figure C
Figure B
Main power switch
Power cord
Part 2964205
Level
Pry Bar (for
leveling)

Rear View

AC input terminal
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Customer Care.
Assembly Instructions
Figure A
1

Side View

TV mount
Figure B
3 5/16"
