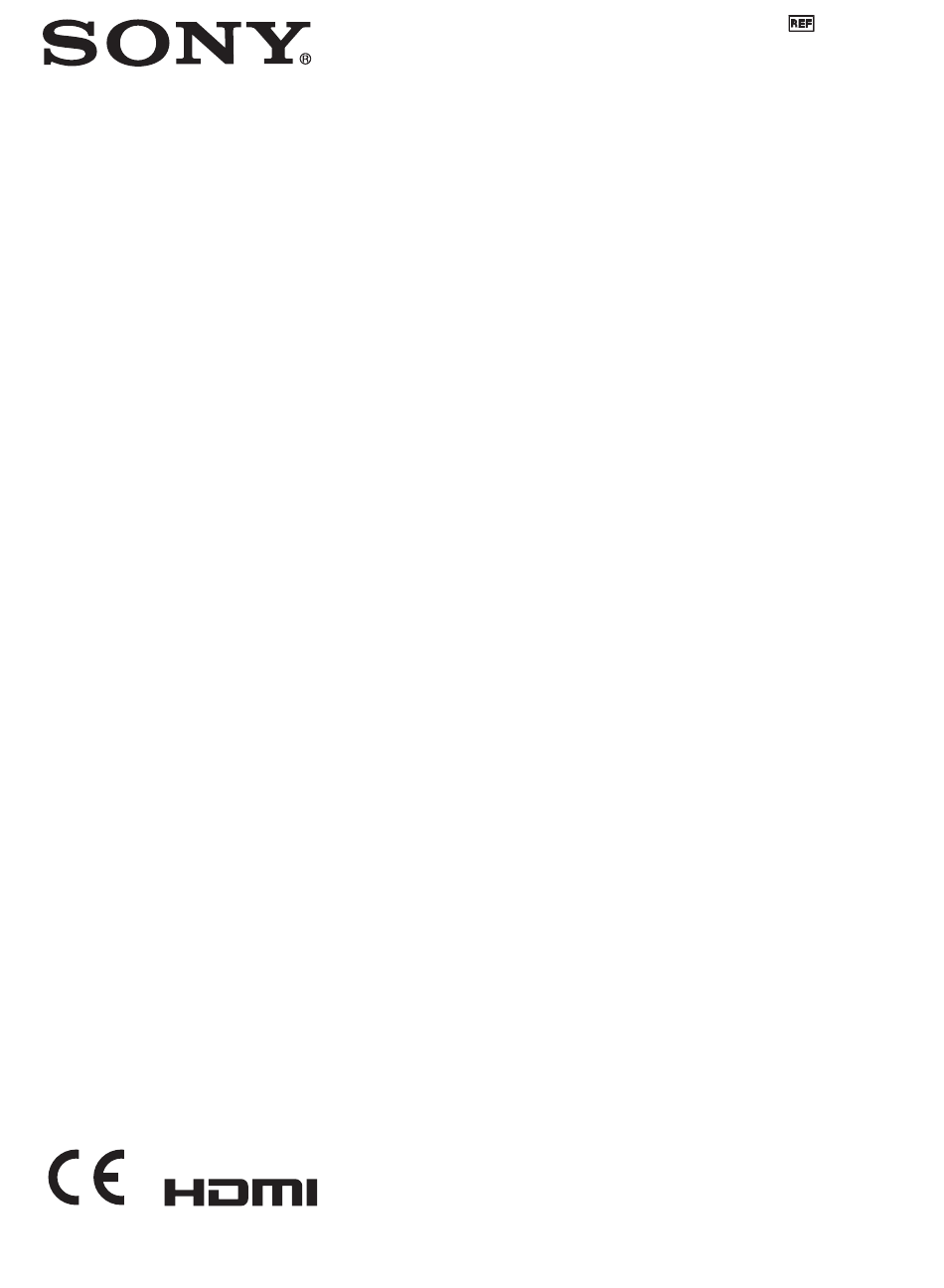

- Page 1 4-548-214-15(1) 2020-02 LCD Monitor Instructions for Use Before operating the unit, please read this manual thoroughly and retain it for future reference. LMD-X310MD LMD-X550MD © 2015 Sony Corporation...
- Page 2 Symbols on the product Parts on the unit with this symbol have a risk Safety sign (LMD-X310MD only) of electric shock. Follow the cautions in the Follow the warnings in the instructions for use instructions for use.
- Page 3 All interface cables used to connect peripherals must be different branch circuits. shielded in order to comply with the limits for a digital For more information, consult qualified Sony service device pursuant to Subpart B of part 15 of FCC Rules. personnel.
- Page 4 • Portable RF communications equipment should be used no closer than 30 cm (12 inches) to any part of the LMD- X310MD/X550MD. Otherwise, degradation of the performance of this equipment could result. • If the LMD-X310MD/X550MD will be used adjacent to or stacked with other equipment, normal operation of the LMD- X310MD/X550MD under such configurations should be verified via observation.
- Page 5 Guidance and manufacturer’s declaration – electromagnetic immunity The LMD-X310MD/X550MD is intended for use in the electromagnetic environment specified below. The customer or the user of the LMD-X310MD/X550MD should assure that it is used in such an environment. Compliance level IEC 60601 Immunity test Electromagnetic environment –...
- Page 6 Guidance and manufacturer’s declaration – electromagnetic immunity The LMD-X310MD/X550MD is intended for use in the electromagnetic environment specified below. The customer or the user of the LMD-X310MD/X550MD should assure that it is used in such an environment. IEC 60601 Immunity test Compliance level Electromagnetic environment –...
- Page 7 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the LMD-X310MD/X550MD is used exceeds the applicable RF compliance level above, the LMD-X310MD/X550MD should be observed to verify normal operation.
- Page 8 Guidance and manufacturer’s declaration – electromagnetic immunity The LMD-X310MD/X550MD is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. Portable RF communications equipment should be used no closer than 30 cm (12 inches) to any part of the LMD-X310MD/X550MD.
- Page 9 – Top side: 30 cm (11 in.) or more if applicable. 2. Use the Power Cord (3-core mains lead) / Appliance Consult with Sony qualified personnel for the following Connector / Plug conforming to the proper ratings types of installation location. (Voltage, Ampere).
- Page 10 Disposal of Old Electrical & Electronic Equipment (Applicable in Republic of India) For the customers in the U.S.A. SONY LIMITED WARRANTY - Please visit http:// www.sony.com/psa/warranty for important information and complete terms and conditions of Sony’s limited warranty applicable to this product.
-
Page 11: Table Of Contents
Error Messages ..........32 Table of Contents Specifications ..........33 LMD-X310MD ............33 LMD-X550MD ............33 Dimensions ........... 40 Precaution ............. 12 LMD-X310MD ............40 On Safety ..............12 LMD-X550MD ............40 On Installation ............12 LMD-X310MD/X550MD ........41 Precautions for using this unit safely ....12 Precautions for connecting this unit with other medical devices ............12... -
Page 12: Precaution
(a) Before actually using this device for medical LMD-X310MD is a DC powered device. Use with the supplied AC adaptor (AC-300MD). practice, please check and confirm that you do not LMD-X550MD is an AC powered device. -
Page 13: On Simultaneous Use With An Electrosurgical Knife, Etc
Masked images with aspect ratios other than 17:9 for characteristics of the liquid crystal display, such the LMD-X310MD and 16:9 for the LMD-X550MD “stuck” pixels may appear spontaneously. These Color bars or images that remain static for a long time ... -
Page 14: On Fan Error
On Cleaning LMD-X310MD LMD-X550MD The illustration of LMD-X310MD is used for the Before cleaning explanations. Any differences in specifications are Be sure to disconnect the AC power cord from the AC clearly indicated in the text. outlet. -
Page 15: Features
Compliance with medical safety standards A.I.M.E. is a registered trademark of Sony Corporation. A.I.M.E. is an optional function for enhancing the color in U.S.A., Canada and Europe or structure of the displayed image. - Page 16 Grip that is easy to hold The easy-to-grip ergonomic design enables the user to make tiny adjustments simply and quickly. Simple connector notation All the connectors face downwards, allowing for easy and organized cable connection. Cover designed for attachment Features...
-
Page 17: Location And Function Of Parts And Controls
Location and Function of Parts and Controls Front Panel Power indicator The following functions are assigned in the default When the power is turned on, the power indicator lights setting. CUSTOM 1: Brightness in green. When the protection function is activated and the CUSTOM 2: Contrast display brightness is reduced due to the rise in CUSTOM 3: Flip... -
Page 18: Input Signals And Adjustable/Setting Items
PORT B: Displays the input signal assigned to (On)/ (Standby) switch PORT B. When the input signal of PORT B is Press the side to turn the monitor on. Press the side displayed, a menu which allows you to select the input to switch the unit to the standby state, and the indicator signal to be assigned to PORT B is displayed. -
Page 19: Rear/Bottom Panel
SD-SDI: 200 m (approx. 656 ft) max. (When using 5C-2V Input connector for HDMI signals. coaxial cables (Fujikura. Inc.) or equivalent.) Use HighSpeed HDMI Cable with Cable Type Logo. (Recommend Sony Cable.) 3G/HD/SD-SDI input/output connector (BNC type) SDI 1 (4K/HD) - Page 20 Signals input to the input connector are output to the output connector. (DC 26 V input) connector (LMD-X310MD only) 1) Serial digital component signals are SMPTE 259M Connects the DC connector of the supplied AC adaptor.
-
Page 21: Connecting The Ac Power Cord
The connectors on this unit are not isolated. Do not connect any device other than one which conforms to IEC 60601-1 standards. LMD-X310MD When an information technology device or AV device that uses an alternating current is connected, current Make sure that the (On)/... -
Page 22: Lmd-X550Md
Connect the plug of the AC power cord to an AC outlet. To remove the AC power cord Press the (On)/ (Standby) switch to the side and switch the unit to the standby state, then remove the AC Connect the plug of the AC power cord to an AC power cord from the AC power plug holder by holding outlet. -
Page 23: Removing The Connector Cover
Caution This unit with the connector cover attached conforms to Remove the two screws and cable clamp. the waterproofed standard. (LMD-X310MD: See page 33, LMD-X550MD: See page 34) Be sure not to use the unit with the connector cover removed since waterproofed performance is not Caution guaranteed. -
Page 24: Configuration Example: 4K Surgical Endoscope
Configuration Example: Initial Setting 4K Surgical Endoscope When you turn on the unit for the first time after purchasing it, select the area and language where you The 4K monitors can be configured with a 4K endoscope intend to use this unit from among the options. and 4K recorder as below. - Page 25 Press the or button to select the area where you intend to use the unit and press the button. When the confirmation screen is displayed, press the or button to select Yes and press the CONTROL button.
-
Page 26: Using The Menu
Using the Menu The unit is equipped with an on-screen menu for making various adjustments and settings such as picture control, input setting, setting change, etc. To change the menu language, refer to “To change the menu language” on page 25. Press the /... -
Page 27: Adjustment Using The Menus
The selected tab is shown in blue, and setting items Adjustment Using the of the selected tab appear. Menus Select an item. Press the / button to select the item. The item to be changed is displayed in blue. Items Make the setting or adjustment on an item. -
Page 28: Adjusting And Changing The Settings
System Configuration Submenu Setting Control Lock A.I.M.E. Select from among “Off, ” “On” and OSD Setting “Check Mode. ” When you select “Check Mode, ” two Power On Setting images of A.I.M.E. being “Off” / “On” Power Save are displayed. Serial Remote 1) A.I.M.E.: Enables better image Ethernet Setting... -
Page 29: Screen Control Menu
Screen Control menu Submenu Setting The Screen Control menu is used to set the image display 3 Screen Display setting for each input. Port C Display Sets the display of the sub screen for the third screen. Submenu Setting Select “On” or “Off. ” 4K Scan Size Select the scan size for the 4K signal Port C Input... -
Page 30: System Configuration Menu
Submenu Setting Submenu Setting HDCP Setting Sets the HDCP setting for signals input Auto: The format and scan mode are in the DVI-D connector. displayed for about 3 seconds Enable: Sets to use the signals when the content of Status ... -
Page 31: Initial Setup Menu
Submenu Setting Submenu Setting Serial Remote PIP / POP Serial Remote Selects the using mode. PIP Sub Screen Sets the sub screen position for the 2 or Off: Disables the serial remote Position 3 screen displays (PIP). function. Select from among “Lower Left, ” RS-232C: Controls this unit via RS- “Upper Left, ”... -
Page 32: Troubleshooting
This section may help you isolate the cause of a problem When the following messages appear on the screen, turn and as a result, eliminate the need to contact technical off the power and contact an authorized Sony dealer. support. The unit cannot be operated The key protection ... -
Page 33: Specifications
Specifications Temperature 0 °C to 40 °C (32 °F to 104 °F) Recommended temperature 20 °C to 30 °C (68 °F to 86 °F) LMD-X310MD Humidity 30% to 85% (no condensation) Pressure 700 hPa to 1060 hPa Storage and transport conditions... - Page 34 Always verify that the unit is operating properly DC 5V OUT Round type pin (female) (1) before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR General REIMBURSEMENT ON ACCOUNT OF THE Power AC IN: 100 V-240 V, 50/60 Hz, 3.2 A-...
- Page 35 Pin assignment SERIAL REMOTE (RS-232C) connector D-sub 9-pin, female Pin number Signal Specifications...
- Page 36 Available signal formats The unit is compatible with the signal systems shown below: Signal format SDI 1 SDI 2 SD-SDI 1) 7) 720 × 487/60I 4 : 2 : 2 YCbCr 10bit 720 × 576/50I 4 : 2 : 2 YCbCr 10bit HD-SDI ...
- Page 37 Signal format SDI 1 SDI 2 1) 8) 4096 × 2160/30P 4 : 2 : 2 YCbCr 10bit Square division × 4096 × 2160/25P 4 : 2 : 2 YCbCr 10bit Square division × Quad Link 3G-SDI 2-sample interleave division / Square ...
- Page 38 Signal format DVI-D HDMI 4 : 4 : 4 RGB 12/10bit × 4 : 4 : 4 RGB 8bit 720 × 576/50P 4 : 4 : 4 YCbCr 12/10/8bit × 4 : 2 : 2 YCbCr 12bit ×...
- Page 39 Dot clock: 25.175 MHz to 148.5 MHz Picture size, phase: automatic discrimination by the DE (Data Enable) signal Displays normally up to the maximum horizontal resolution, 2048 dots (LMD-X310MD) or 1920 dots (LMD- X550MD). 1) Also compatible with the frame rate 1/1.001.
-
Page 40: Dimensions
LMD-X550MD Dimensions Front LMD-X310MD Front Rear Rear Side Side Unit: mm (inches) Mass: Approx. 35.2 kg (77 lb 9.6 oz) Unit: mm (inches) Mass: Approx. 11.8 kg (26 lb 0.23 oz) Dimensions... -
Page 41: Lmd-X310Md/X550Md
LMD-X310MD/X550MD * Length of M4/M6 screws Attached object Monitor cabinet Screw ) to 9 ( * The specification of the screw is for the VESA mount. Unit: mm (inches) The supplied screws are compatible with an attached object which has a thickness from 1 to 3 mm ( inches).
