Instructions for Installation and Care of Textron Stampede Soft Door Kit
Notice: Do not smoke inside the cab or expose the enclosure to direct flames. Cab is Flammable.
Be sure to read these instructions thoroughly before opening and installing the enclosure. The installation is
best done when the temperature is 70 degrees F. or warmer. The temperature affects the adhesive Velcro, if
conditions prevent installing in warmer weather it helps to store the adhesive Velcro at room temperature
prior to installation.
1. Carefully open the carton and remove the enclosure on a large flat surface that is clean and free of dirt.
2. Check over the parts included in the carton with the parts list shown below:
Adhesive Velcro Hook Strips:
"
"
"
Polycarbonate Panels
Panel Screws
Snap Screw Studs
If any parts are damaged or missing please contact customer service at (800) 213-7981.
3. Begin by holding the door up to the frame and attach it using the double-sided Velcro strips sewn
perpendicular to the edge of the door. At each of the double-sided strips take one of the 3" adhesive
Velcro strips and adhere it to the inside of the frame. Then wrap the double-sided strip around it so that

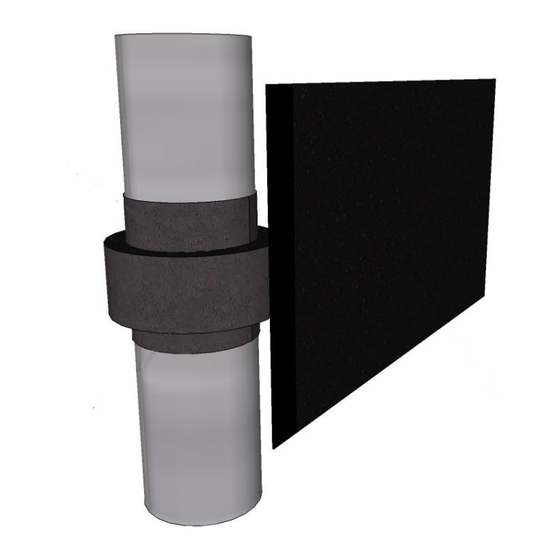

the adhesive strip holds it firmly in place. The following diagrams show how it should look.
3510-1 Port Jacksonville Pkwy, Jacksonville, FL 32226
800-213-7981
TX-STAMP-SDK01
"
"
"
"
"
"
"
"
"
Soft Doors
20 each------------3"
2 each------------15"
2 each------------30"
2 each
10 each (2 extra)
11 each (1 extra)
Advertisement
Related Manuals for FALCON RIDGE TX-STAMP-SDK01
Summary of Contents for FALCON RIDGE TX-STAMP-SDK01
- Page 1 800-213-7981 Instructions for Installation and Care of Textron Stampede Soft Door Kit TX-STAMP-SDK01 Notice: Do not smoke inside the cab or expose the enclosure to direct flames. Cab is Flammable. Be sure to read these instructions thoroughly before opening and installing the enclosure. The installation is best done when the temperature is 70 degrees F.
- Page 2 4. Next take the 30" adhesive Velcro strips and run it down the back of the roll cage facing towards the rear of the vehicle. Start at the bottom and work your way up the bar. You will see the double-sided Velcro tabs sewn along the back of the doors that will attach to this strip.
- Page 3 5. Next take the 15” adhesive Velcro strip and place it along the top of the small rear side panels as shown in the photo on the next page. Then affix the bottom of the rear panel to it as shown in the second photo.
- Page 4 6. Next place a 3” adhesive strip on the center bar towards the bottom of the rear panel to match up with the double-sided strip as shown in the photo below. 7. Last piece of Velcro is the 3” strip on the end of the front strip as shown in the photo on the next page.
- Page 5 Cab to either extreme hot or cold temperatures when storing. 3. A special cleaner conditioner is available from Falcon Ridge that will greatly increase the service life of the Cab Enclosure. In addition, if additional hook and loop sets are needed, they can also be ordered.
-
Page 6: Return Policy
Any returns submitted to Falcon Ridge without a return authorization number will be charged a 20% restocking fee. If ordered from one of Falcon Ridge’s many distributors, you must first call them and see what their return policy is. Once your item reaches our production facility, our customer satisfaction team will inspect your item to ensure unused, factory new condition.
