Summary of Contents for FALCON RIDGE BC-3400-WD05
Page 1

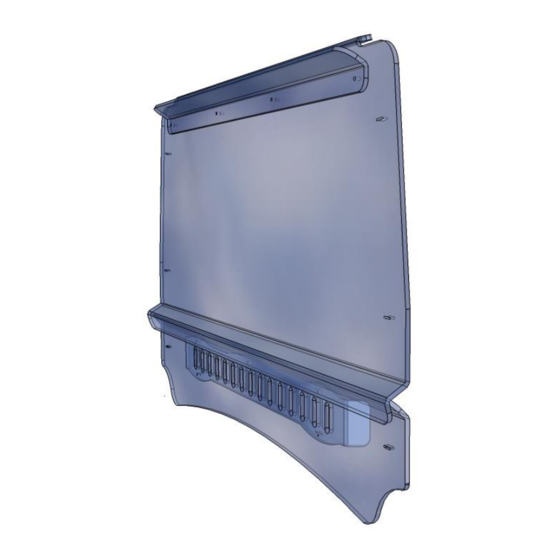

Instructions for Installation and Care of Bobcat 3400 Aero-VentPolycarbonate Windshield BC-3400-WD05 / 50-40046 NOTICE: Please check contents of package for any damage and make sure all parts fit correctly and you are happy with the product before removing protective film. Once the film is removed you cannot return the product for a full refund.
Page 2
3. Next Install the Aero-Vent sliders as shown in the diagram on the following page.
Page 3
4. Next take the bent Polycarbonate brace and install it on the windshield. Please see diagram on the next page. 5. Now you are ready to place the windshield on the Bobcat and attach to the roll cage. NOTE: THE BEND AT THE TOP OF THE WINDSHIELD SHOULD GO BELOW THE TOP TUBE.
Page 4
on the next page shows the proper placement for the hardware. Install the clamps as shown for the top two slots in the windshield only. Use the 1” bolts for this application. 6. Now Place the two halves onto the frame as shown on the next page. (diagram not Bobcat) 7.
Warranty To The Owner of this Product: Thank you for purchasing one of our Falcon Ridge Cab Enclosures, Tops &/or Windshields! Below are the terms under which your product is covered under our manufacturer’s warranty. 30 Day Warranty which includes and is not limited to replacing the enclosure, tops and/or windshield due to defect of the product.
