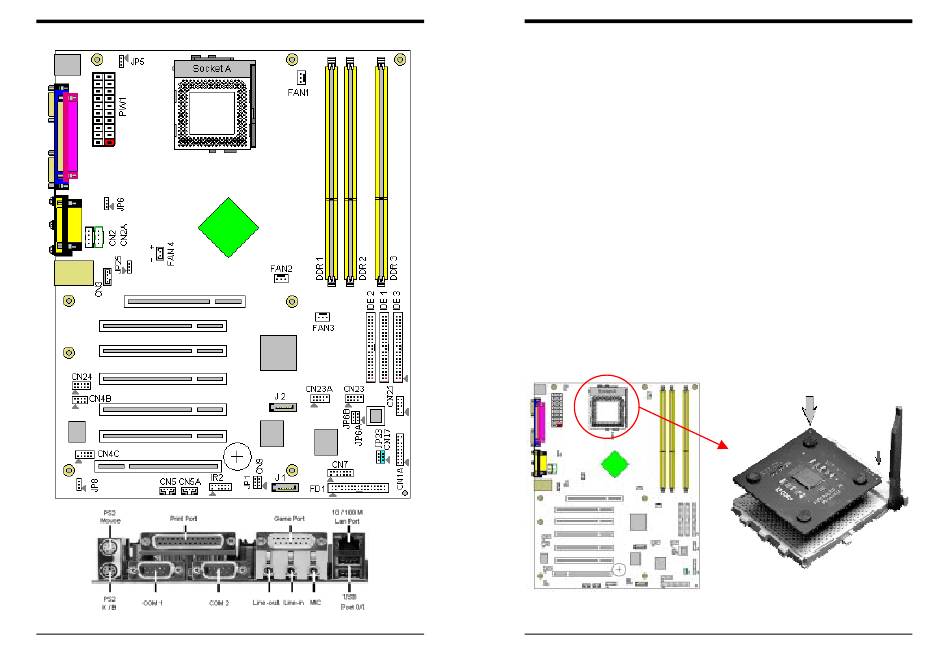

1.4 7NJS Motherboard Layout
7NJS User's Guide
Chapter 1 Chapter 2
If your motherboard has already been installed in your computer you may still
need to refer to this chapter if you plan to upgrade your system's hardware.
This motherboard is electrostatic sensitive. Do not touch without wearing
proper safety gadget and make sure to disconnect the power cable from the
power source before performing any work on your motherboard. Not doing so
may result in electrical shock!
2.1 Installing a CPU Processor in Socket A
The Socket A, designed for AMD Duron/Athlon/Athlon XP processors, has
been incorporated as a standard motherboard specification. To insert your CPU
into Socket A please do the following:
1. Locate a cut edge on the top surface of the CPU, which is close to one of the
CPU corners. The same corner will also be cut off, leaving a noticeable notch in
the CPU's corner. These markings indicate Pin 1 on the CPU.
2. Pull up the lever of Socket A so that it is perpendicular with the surface of
the motherboard. Gently insert the CPU with Pin 1 at the same corner of Socket
A, which is located close to the end of the lever. Allow the weight of the CPU to
push itself into place. Do not apply extra pressure as doing so may result in
damaging your CPU. Snap the lever back into place.
Installing an AMD approved heat sink with cooling fan is necessary for proper
heat dissipation from your CPU. Failing to install these items may result in
overheating and possible burn-out of your CPU.
Notes:
before installation.
5 6
Chapter 2 Hardware Setup
In order to boot up with a newly installed CPU, AC Power must be switched off
7NJS User's Guide
