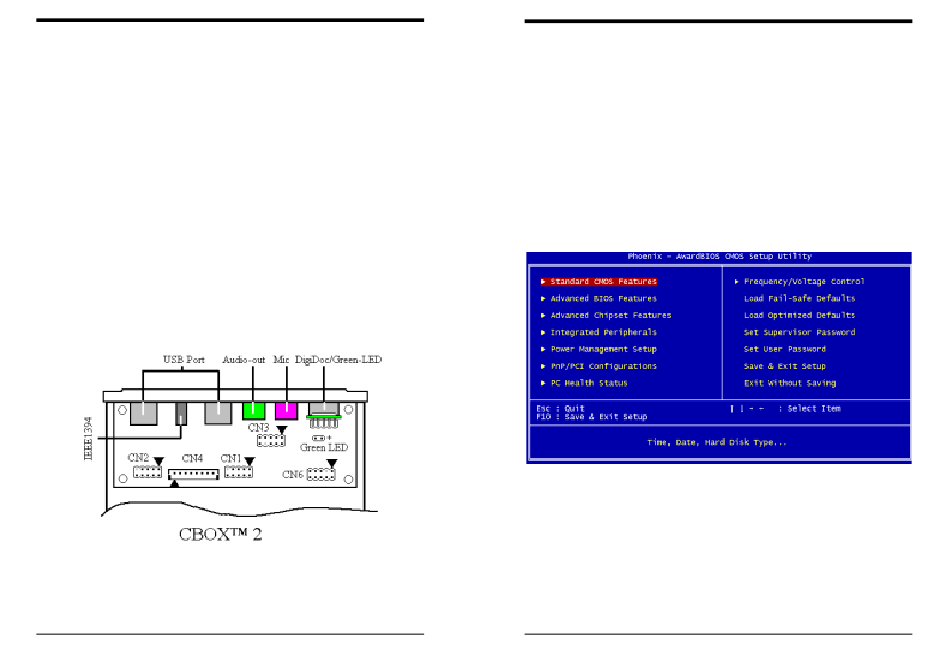

2.7 CBOX™ 2 Setup
1. Gently insert CBOX™ 2 into the regular 5-1/4" drive bay at the front
of system chassis and securely tighten the side screws.
2. Connect Motherboard to CBOX™ 2:
Function Motherboard
USB 2 & 3
USB 4 & 5
*Front Audio
IEEE 1394
Green Mode LED
80 Port Display
* Remove CN24 Jumper Caps on motherboard 5-6, 9-10 before installation.
USB Cable (10 pin)
Front Audio Cable (10 pin)
IEEE-1394 Cable (8 pin)
80 Port Display (10 pin)
Green Mode LED Cable (2 pin)
Note:
Each cable got security-proof.
7NJS User's Guide
Chapter 2
CBOX™ 2
JP23 CN1
JP23A CN2
CN24 CN3
1394 ACR CN4
CN1A 2 pin
CN25 CN6
x 2
x 1
x 1
x 1
x1
Chapter 3
Phoenix-Award BIOS ROM has a built-in setup program that allows users to
modify the basic system configuration. This information is stored in CMOS
RAM so that it can retain the setup information, even when the power is turned
off.
To enter the Phoenix-Award BIOS setup program press the [ Delete key ]
when you Power on or reboot the computer system. The primary screen as
shown in Figure 3-1 is a list of the menus and functions available in the setup
program. Select the desired item by your arrow keys and press enter to make the
changes. Operating commands are located at the bottom of this and all other
BIOS screens. When a field is highlighted, on-line help information is displayed
on the right side of the screen.
