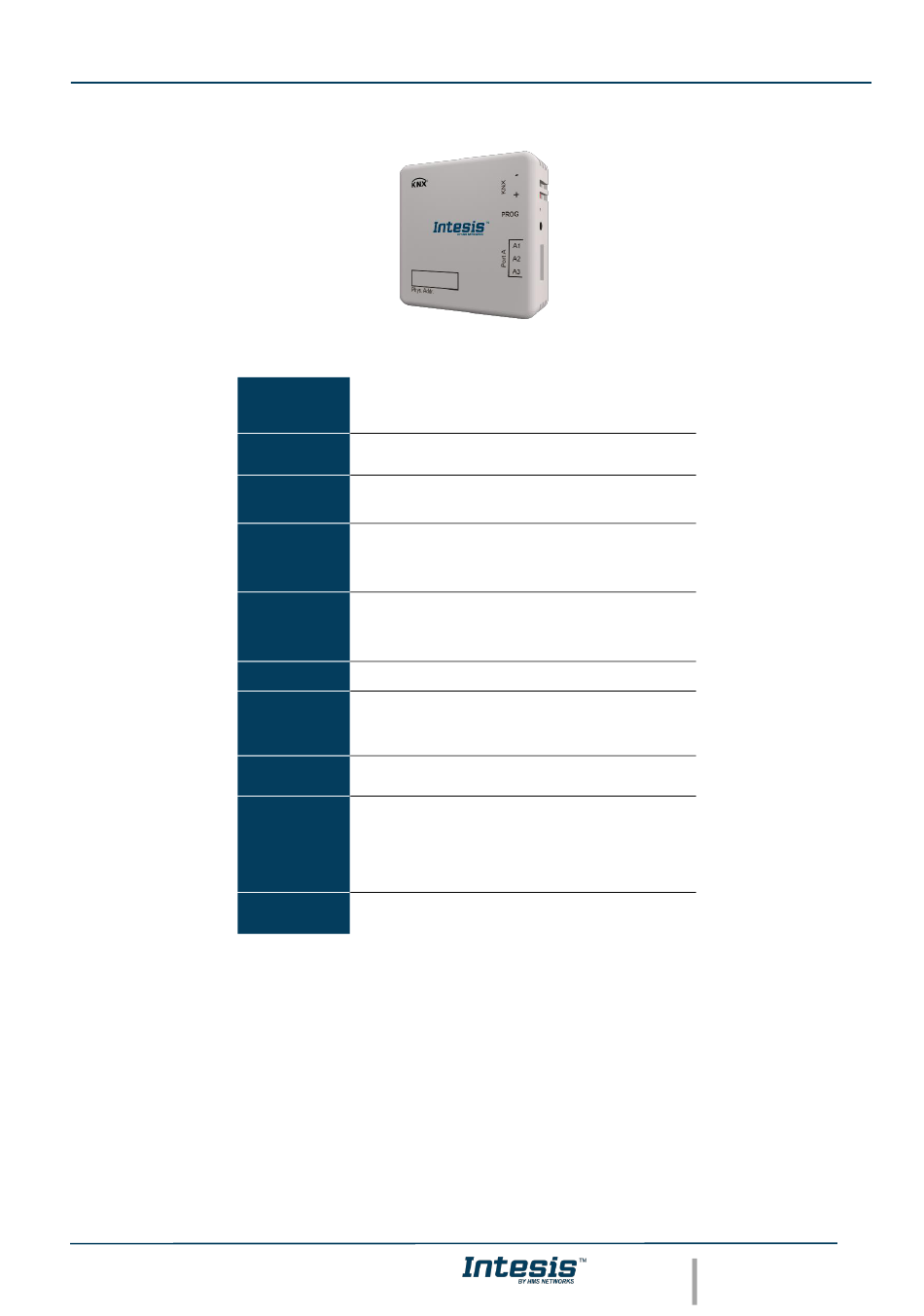

7 Electrical & Mechanical Features
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
Plastic, type ABS (UL 94 V-0)
Enclosure
Net dimensions (d
Color: White. RAL 9010
Mounting
Wall.
Power
Supplied through KNX bus. See on KNX Port.
1 x KNX TP-1 Plug-in screw terminal block (2 poles)
2500VDC isolation from other ports
KNX Port
KNX power consumption: 20mA
Voltage rating: 29VDC
1 x Serial EIA485 Plug-in screw terminal block (3 poles)
PORT A
A, B, SGND (Reference ground or shield)
1500VDC isolation from other ports
Push Button
Sets device in programing mode in KNX network
Operation
0°C to +60°C
Temperature
Operational
5 to 95%, no condensation
Humidity
3 x Jumpers for serial EIA485 configuration:
Jumper 1:
Connected: 120 Ω termination active.
Configuration
Disconnected: 120 Ω termination inactive.
Jumpers
Jumper 2 & 3:
Connected: Polarization active.
Disconnected: Polarization inactive.
3 x Onboard LED indicators
LED Indicators
2 x Port A TX/RX
1 x KNX Prog Mode
w
h): 71x71x27 mm
x
x
User Manual r1.0 eng
URL
https://www.intesis.com
19 / 19
