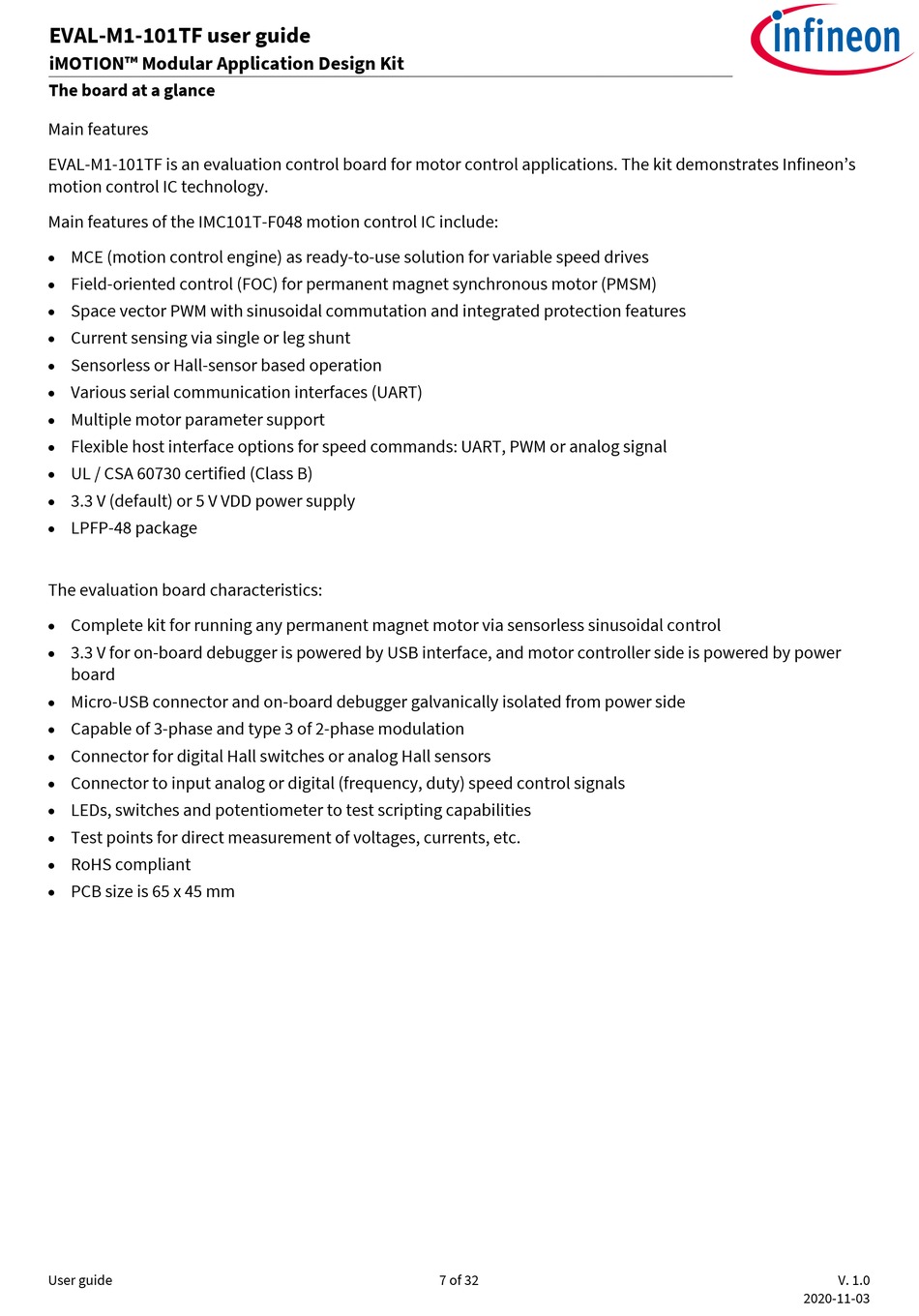

The board at a glance
Main features
EVAL-M1-101TF is an evaluation control board for motor control applications. The kit demonstrates Infineon's
motion control IC technology.
Main features of the IMC101T-F048 motion control IC include:
MCE (motion control engine) as ready-to-use solution for variable speed drives

Field-oriented control (FOC) for permanent magnet synchronous motor (PMSM)

Space vector PWM with sinusoidal commutation and integrated protection features

Current sensing via single or leg shunt

Sensorless or Hall-sensor based operation

Various serial communication interfaces (UART)

Multiple motor parameter support

Flexible host interface options for speed commands: UART, PWM or analog signal

UL / CSA 60730 certified (Class B)

3.3 V (default) or 5 V VDD power supply

LPFP-48 package

The evaluation board characteristics:
Complete kit for running any permanent magnet motor via sensorless sinusoidal control

3.3 V for on-board debugger is powered by USB interface, and motor controller side is powered by power

board
Micro-USB connector and on-board debugger galvanically isolated from power side

Capable of 3-phase and type 3 of 2-phase modulation

Connector for digital Hall switches or analog Hall sensors

Connector to input analog or digital (frequency, duty) speed control signals

LEDs, switches and potentiometer to test scripting capabilities

Test points for direct measurement of voltages, currents, etc.

RoHS compliant

PCB size is 65 x 45 mm

