EVAL-M1-101TF user guide
iMOTION™ Modular Application Design Kit
System and functional description
2.5

EVAL-M1-101TF analog inputs and their MCEWizard setup

Besides current-sensing inputs, IMC101T-F048 provides a number of analog inputs for different system
functions. Figure 16 depicts the analog inputs of the IMC101T-F048 except for the current-sensing inputs.

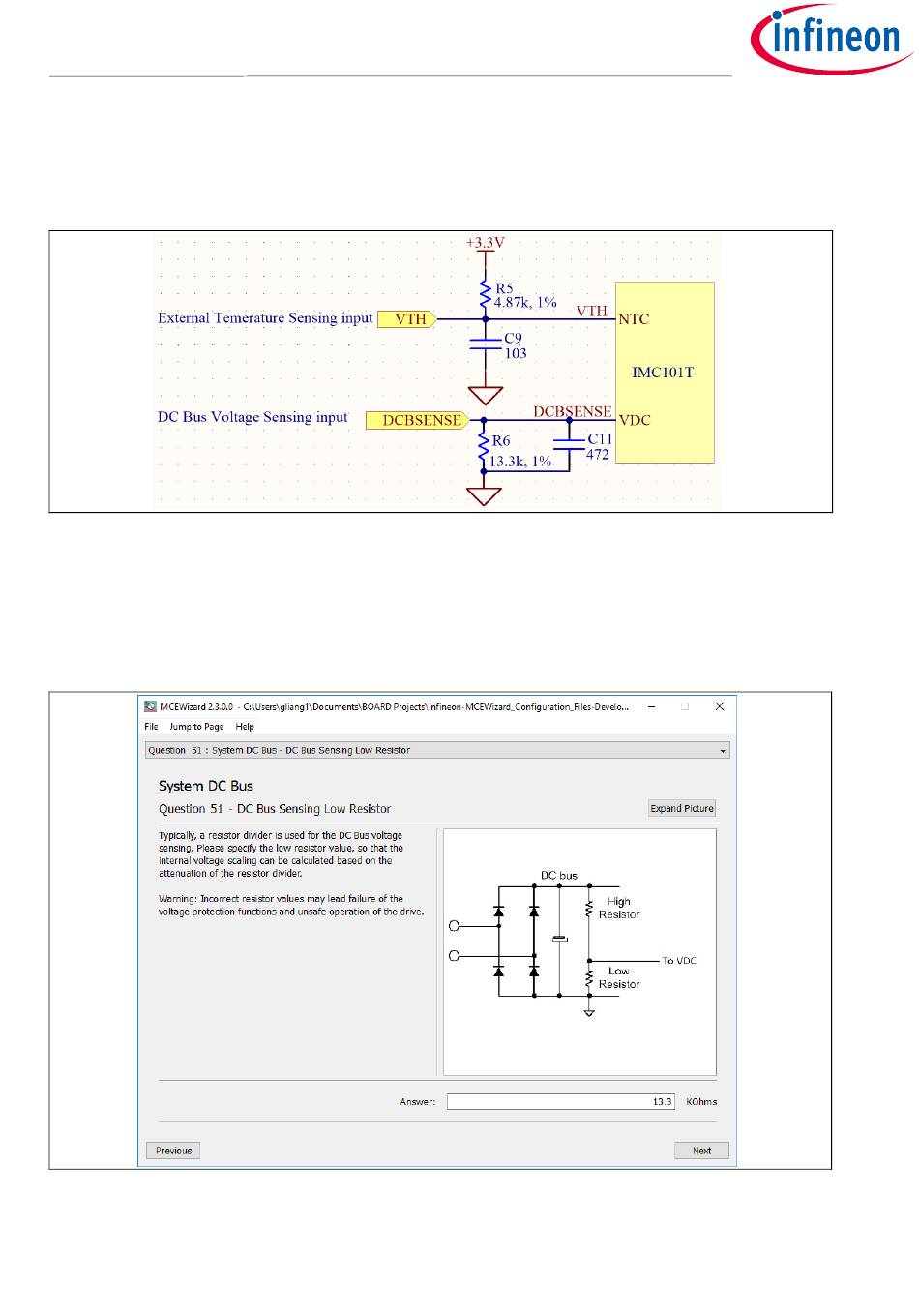

Figure 16 Analog inputs on the EVAL-M1-101TF evaluation board
2.5.1

DC bus-sensing configuration

The low-side resistor R4 for the DC bus-sensing resistor divider on the controller board EVAL-M1-101TF is 13.3
kΩ, and should be configured in MCEWizard as shown in Figure 17. For the high-side resistor value, please refer
to the User Guide of the corresponding power board.
Figure 17 DC bus-sensing configuration in MCEWizard
