- Page 1 KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 USERS GUIDE J-LCD...
-
Page 2: Table Of Contents
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Content User specification ............................1 1. Appearance and Size ..........................2 1.1 Material and Color ........................2 2. Function Summary and Button Definition ..................3 2.1 Function Summary ........................ - Page 3 KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 5.13.6 Speed Sensor Selection ....................14 5.13.7 Throttle Definition......................15 5.13.8 System Setting ........................15 5.13.9 Exit setting ........................16 5.14 Recover default setting ......................17 6.
-
Page 4: User Specification
User specification Dear users, To ensure better performance of your e-bike, please read through the J-LCD product introduction carefully before using. We will use the most concise words to inform you of all the details（including the hardware installation, setting and normal operation use of the display）... -
Page 5: Appearance And Size

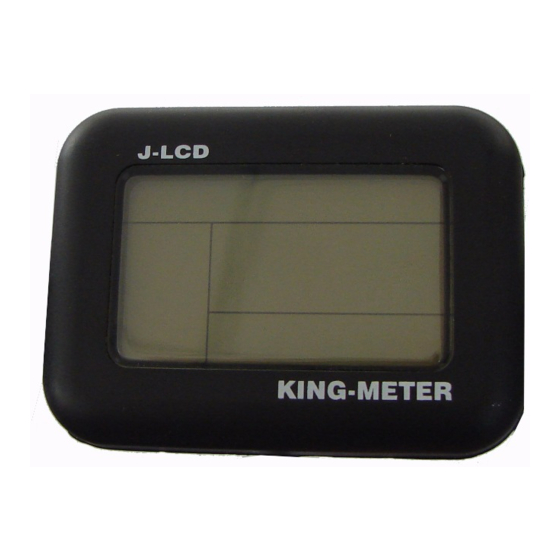

1. Appearance and Size 1.1 Material and Color J-LCD products are made of white and black PC. Under the temperature of -20 to 60℃, the shell material can ensure normal usage and good mechanical performance. Real product and dimension figure (unit: mm) -
Page 6: Function Summary And Button Definition
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 The J-LCD match has a dedicated 30 button, which can be mounted on the left or right side of the handlebar. Shape is as follows: N3 buttons are wired to the bottom of the meter. -
Page 7: Monitor Area
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 2.2 Monitor Area Monitor Area 2.3 Button Definition KM5S has three buttons. They are . In the following introduction,, they are is named as “MODE”. -
Page 8: Operation Cautions
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 3. Operation Cautions Be care of the safety use. Don’t attempt to release the connector when battery is on power. Try to avoid hitting. -
Page 9: Display Interface
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 5.2 Display Interface After starting up the display, it will display the following interface: After starting up the display interface 5.3 Speed/TRIP/ODO Press [MODE] to switch the cycling mileage and cumulative total mileage. -
Page 10: Turn On/Off Backlight
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Push Cruise Control 6Km/h “Push Cruise Control” function can only be used as pushing the e-bike by hands. Please don’t use this function when riding. -
Page 11: Time Indicator
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 5.8 Time Indicator The time is shown as bellow: Time indicator 5.9 Error Code Information If there is something wrong with the electronic control system, the error code will appear automatically. -
Page 12: Backlight Contrast
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 5.10.2 Backlight Contrast BL means backlight. Level 1 is the low brightness. Level 2 is the middle brightness. Level 3 is high brightness. The default level is 1. Press [UP] or [DOWN] to modify the backlight brightness. -
Page 13: Power-On Password Enable/Disable
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 5.11 Power-on Password Enable/Disable The character “PSD.2” on the bottom of the screen means the page of password. Hold [UP] and [DOWN] both up to 2 seconds enter normal setting , while hold both [UP] and [MODE] 2 seconds again will enter power-on password enable/disable page. -
Page 14: Wheel Diameter Setting
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Press the [MODE] to shift, and add/subtract the input value by [UP] / [DOWN]. After the 4-digit password is inputed, press [MODE] to confirm. -
Page 15: System Parameter Setting
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Sensor Setting, Speed Sensor Setting and Delay Time Setting. For the details, please see the Attached List 3. 5.13.1 System Parameter Setting Hold [UP] and [DOWN] both over 2 seconds to enter normal setting, while hold [UP] and [DOWN] both again is to set up System Parameter, password 2962 must be entered. -
Page 16: Controller Over-Current Cut Setting
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 gear: 0-3, 1-3, 0-5, 1-5, 0-7, 1-7, 0-9, 1-9. Through the switch of [UP] / [DOWN], press [MODE] to confirm and enter the corresponding power ratio numerical setting interface. -
Page 17: Speed Sensor Selection
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 back direction. Press [UP]/[DOWN] to select F or b, and press [MODE] to confirm and turn to PAS sensitivity setting. The default direction is forward. -
Page 18: Throttle Definition
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 5.13.7 Throttle Definition Throttle Enable/Disable Hnd means throttle load, HL:N means function disable ,HL:Y means function enable . When HL=Y, throttle can control the function. Press [UP]/[DOWN] to select Y, and press [MODE] to confirm the selection, otherwise select N to turn to Throttle Vector Enable Setting. -
Page 19: Exit Setting
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Interface of max speed limited setting The standard speed limit setting is based on this setting, not more than this setting value. This setting is the priority version. -
Page 20: Recover Default Setting
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 saving the setting, then quit the setting state. Long press [DOWN], is to cancel the operating but not saving setting data. If there is not any operating in one minute, display will exit the setting state. -
Page 21: Faq
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 7. FAQ Q: Why the display is not able to start up? A: Check the connector between display and controller. Q: How to deal with the error code? A: Fix it to the maintenance place immediately. -
Page 22: Attached List 1：Error Code Definition
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Attached list 1：Error code definition Error Code Definition Current Abnormality Throttle Abnormality Motor Abnormality Motor Hall Signal Abnormality Brake Abnormality Communication Abnormality... -
Page 23: Attached List 2：Password Table
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Attached list 2：Password table Password Setting Using parameter 0512 setting password(settled) Default Starting up password 1234 Personality setting 2962 password(settled) Recovery setting... -
Page 24: Attached List 3：Personality Parameter Setting
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Attached list 3：Personality Parameter setting Setting Display Details Five battery power value Battery power Power assist level option Assistance Assistance proportion Limit current... - Page 25 KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 delay Max speed Button PAS Setting PAS Speed Setting Slowly Start up Setting...
-
Page 26: Attached List 4：Power Assist Table
KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 Attached list 4：Power assist table Level Level Item 0-3/ 1-3 47% 72% 92% — — — — — — 0-5/ 1-5 40% 55% 70% 85% 95% —... - Page 27 KING-METER TECHNOLOGY CO., LTD No.15, Chenchang Road, Beichen Dist.Tianjin,300134,CN Fax：+0086 022 8478 0358 Tel: +0086 022 8478 0378 KING-METER...
