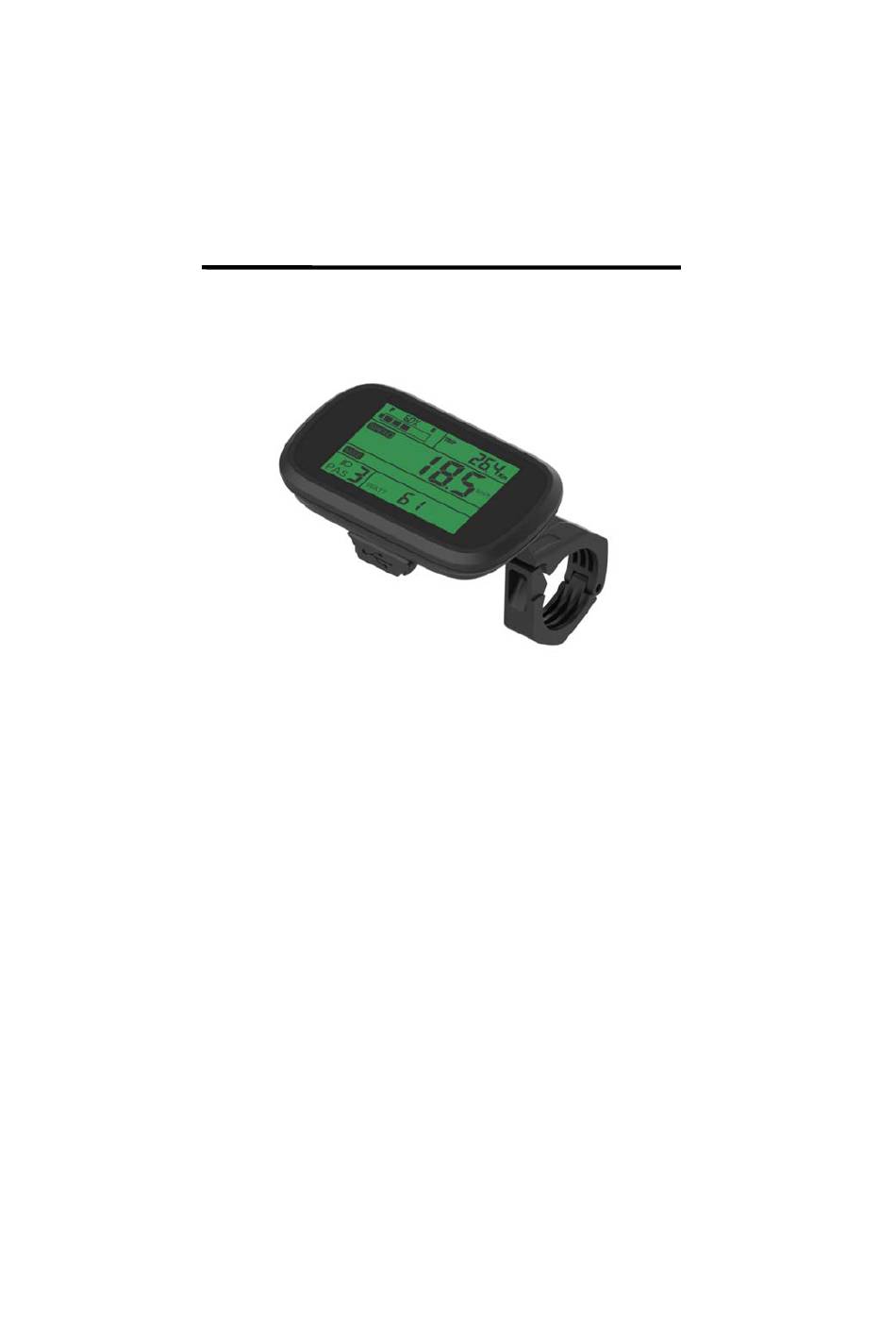

- Page 1 KING‐METER USERS GUIDE E5227‐U LCD ...
-
Page 2: Table Of Contents
Contents About the User Manual .............. 1 Appearance and Size ................ 2 Material and Color .............. 2 Function Summary and Button Definition ........ 5 Function Overview .............. 5 Normal Display Area .............. 6 Button Definition .............. 6 Precautions .................. 7 Installation Instruction .............. 7 Standard Operation ................ 8 Power ON / OFF ............... 8 Display Interface............... 8 Distance .................. 9 Speed (current speed/average speed/max speed) .... 9 Push Cruise Control .............. 10 Turn On Backlight .............. 10 PAS Level Selection .............. 11 Battery Indicator .............. 11 Motor Power ................ 12 Error Code ................ 12 Phone Charging (Only For Display with USB Port) ...... 13 User Setting .................. 14 Preparation before Power On .......... 14 I ... - Page 3 General Setting ............... 14 Single Trip Clearance ............ 15 Backlight Brightness ............ 15 Display Unit .............. 16 Exit Setting .............. 16 Password Setting .............. 17 Password Use .............. 17 Change Password ............ 18 Operation Parameter Setting .......... 18 Wheel Size Setting ............ 19 Speed Limit Setting ............ 20 Personalization ................ 21 Personalization Password Input .......... 21 Battery Indicator Setting ............ 23 PAS Parameter Setting ............ 23 PAS Level Selection ............ 23 PAS Proportion Setting ........... 24 Current Limit Setting .............. 25 PAS Sensor Setting .............. 26 PAS Sensor Direction Setting .......... 26 PAS Sensor Sensitivity Setting ........ 26 PAS Sensor Proportion Parameter Setting ..... 27 Speed Sensor Setting ............. 28 Throttle Function Setting ............ 28 Throttle Push Cruise Control Enable Setting .... 28 Throttle Level Enable Setting ......... 29 System Setting ................ 30 II ...
- Page 4 Battery Delay Time Setting .......... 30 Max Speed Limit Setting .......... 31 Push Cruise Control Enable Setting ........ 31 Push Speed Setting ............ 32 Slowly Start up Setting ........... 33 Exit Setting ................ 33 Restore Default Setting .............. 34 FAQ Answers .................. 35 Quality Warranty And Coverage ............ 36 Circuit Block Diagram .............. 37 Software Version ................ 38 Attached Table 1：Definition of Error Code ........ 39 Attached Table 2：Password Checklist .......... 40 Attached Table 3：Personalization Parameters Table .... 41 Attached Table 4：PAS Proportion Default Value ...... 43 III ...
-
Page 5: About The User Manual
About the User Manual Dear users, To ensure better performance of your e‐bike, please read through the E5227 LCD product introduction carefully before using it. We will use the brief words to inform you of all the details (including hardware installation, setting and normal use of the display) when using our display. Meanwhile, the introduction will also help you solve possible confusion and barriers. 1 ... -
Page 6: Appearance And Size
Appearance and Size Material and Color E5227 LCD housing material: PC. And the color of housing is black. Working temperature scope: ‐20℃—+60℃, the shell material can ensure normal use and good mechanical performance of the products. Display Size and Installation Size（Unit：mm） 2 ... - Page 7 E5227 LCD is equipped with special N3‐button unit. ,N3 button shape is as follows： The N3 button is connected to the bottom lead of the E5227 LCD display. In the follow‐up instructions, the button is named as 【MODE】 . The button is named as 【UP】 , the button is named as 【DOWN】. In addition, 30 button as below is also optional, to be mounted on the left side of the handlebar or on the right side of the handlebar. 3 ...
- Page 8 Its shape is as follows: The 30 button is connected to the bottom lead of the E5227 LCD display. In the follow‐up instructions, The button is named as 【MODE】. The button is named as 【UP】, the button is named as 【DOWN】. 4 ...
-
Page 9: Function Summary And Button Definition
Function Summary and Button Definition Function Overview The E5227 LCD offers you a variety of features and displays to suit your cycling needs. The displayed contents are: ◆ Battery capacity ◆ Motor power ◆ Speed (Including current speed, maximum speed and average speed) ◆ Distance (Including single trip and ODO) ◆ Push cruise control ◆ Turn on backlight ◆ Error Code ◆ Multiple setting parameters ◆ Default parameter reset ◆ Phone charging (only for display with USB port) 5 ... -
Page 10: Normal Display Area
Normal Display Area E5227 LCD normal display area Button Definition In the subsequent description, the button is named as 【MODE】. The button is named as 【UP】, and the button is named as 【DOWN】. 6 ... -
Page 11: Precautions
Precautions Pay attention to safety during use, do not connect or disconnect the display while it is powered on. The display should try to avoid bumps. The display uses a film as waterproof film; please do not tear it, so as not to affect the waterproof performance of the display. Regarding the background parameter setting of the display, please do not change it at will, otherwise it will ... -
Page 12: Standard Operation
Standard Operation Power ON / OFF Hold 【MODE】 button, the display starts to work and provides the controller with working power. In the power on state, hold 【MODE】 button to turn off the power of the electric vehicle. In the power off state, the display no longer uses the battery's power supply, and the display's leakage current is less than 1uA. If the e‐bike is not used for more than 10 minutes, the display will automatically shut down. Display Interface After the display is turned on, the display shows the following interface: ... -
Page 13: Distance
Distance Press 【MODE】 to switch between TRIP and ODO. This feature makes it easy for users to view the current mileage (TRIP) and accumulated total mileage (ODO). Speed (current speed/average speed/max speed) After the e‐bike is turned on, the display shows the current speed by default. Hold【MODE】 and 【UP】 buttons simultaneously for 2 seconds to display the average speed (AVG) of the current ride. Hold 【MODE】... -
Page 14: Push Cruise Control
Push Cruise Control Hold【DOWN】for 2 seconds, the e‐bike enters the mode of power assist walk. The e‐bike travels at a constant speed of 6 Km/h, WALK symbol flashes on the screen. The power‐saving function can only be used when the user pushes the e‐bike. Do not use it while riding. Turn On Backlight Hold 【UP】 button for 2 seconds, the display’s backlight is turned on, and the controller is notified to turn on the headlights. The LCD backlight can be turned on when there is insufficient external light or driving at night. Hold【UP】 button for 2 seconds again, and the LCD backlight turns off. 10 ... -
Page 15: Pas Level Selection
PAS Level Selection Press the 【UP】 or 【DOWN】 button to switch the PAS level of the e‐bike and change the output power of the motor. The default output power range of the display is PAS 1‐5, and preset level 1. Battery Indicator When the battery voltage is high, the five‐segment LCD is on. When the battery is under voltage, the outer frame of the battery 11 ... -
Page 16: Motor Power
flashes, indicating that the battery is seriously under‐voltage and has to be charged immediately. Flashing under‐voltage Motor Power The display can show the output power of the current motor. The display mode is as shown below. Error Code When the e‐bike electronic control system fails, the display will automatically report the error code. See Table 1 for the definition of the detailed error code. 12 ... -
Page 17: Phone Charging (Only For Display With Usb Port)
The fault display interface can only be exited when the fault is eliminated. After the fault occurs, the e‐bike will not be able to continue riding. Phone Charging (Only For Display with USB Port) Display with USB interface, this interface provides charging power for mobile phones, output 5VDC/500mA. When the display is off, connect the mobile phone data cable between the display and the mobile phone. And then turn on the display, it shows 'USB' every 3S, indicating that the mobile phone is being charged; if the display is turned off at this time, the USB interface still provides the mobile phone charging function. In any state, unplug the phone and the charging will automatically terminate. 13 ... -
Page 18: User Setting
User Setting Preparation before Power On Make sure the connectors are docked firmly and turn on the e‐bike. General Setting Hold 【MODE】 button to start up. In the power‐on state, hold 【UP】 and 【DOWN】buttons simultaneously for 2 seconds, the display enters the setting state. 14 ... -
Page 19: Single Trip Clearance
Single Trip Clearance CL stands for single trip clearance, and the setting parameter is optional N/Y. The default N means that the single trip distance is not cleared. Y/N can be selected by 【UP】 / 【DOWN】, Y means that the single trip distance needs to be cleared, and N means that the single trip distance does not need to be cleared. Backlight Brightness BL stands for backlight. Parameters 1, 2, and 3 can be set to indicate the brightness of the backlight. The factory default value is ... -
Page 20: Display Unit
Display Unit Unit represents the display unit. The parameter Metric/English can be set. The factory default is metric. The parameters can be changed by 【UP】/【DOWN】. Exit Setting In the setting state, shortly press 【MODE】 button to confirm the input and enter the next setting; and hold 【MODE】 button to save and exit the setting state. 16 ... -
Page 21: Password Setting
Password Setting Hold 【UP】 and 【DOWN】 buttons simultaneously for 2 seconds to enter the normal setting state; then hold【UP】 and 【MODE】 buttons simultaneously for 2 seconds to enter the power‐on password setting state. The display prompts “PAS.2”, indicating that you need to enter the power‐on password. Press the 【MODE】 button to shift, and increase/decrease the input value by 【UP】 / 【DOWN】 . After the 4‐digit password is entered, press the 【MODE】 key to confirm. If the password is correct, enter the power‐on password user setting interface, otherwise it will stay in the password input state. Hold 【MODE】button to exit. The factory default is: 1234. ... -
Page 22: Change Password
modification interface. Change Password PSD indicates the password. Press 【 MODE 】 to shift and increase/decrease the value by 【UP】/【DOWN】. After the modification is completed, hold【MODE】 button to save the confirmation and exit the setting state. Operation Parameter Setting Hold【UP】 and【DOWN】 buttons simultaneously for 2 seconds to enter the normal setting state; then hold【MODE】 and 18 ... -
Page 23: Wheel Size Setting
【DOWN】 buttons simultaneously for 2 seconds to enter the operation parameter setting state. The display prompts “PAS.1”, indicating that you need to enter the permission password. press the 【MODE】 button to shift, and increase/decrease the input value by 【UP】/【DOWN】. After the 4‐digit password is entered, press【MODE】 button to confirm. If the password is correct, enter the power‐on password setting interface, otherwise it will stay in the password input state. Hold 【MODE】to exit. The permission password is: 0512. ... -
Page 24: Speed Limit Setting
26inch. Speed Limit Setting LS indicate the speed limit setting. The default maximum riding speed is 25Km/h. Change this value to set the maximum riding speed of the e‐bike. When the electric motor exceeds the set value, the controller will stop supplying power to the motor to protect the rider's safety. The maximum speed setting can be selected from 12Km/h to 25Km/h. It can be set by 【UP】... -
Page 25: Personalization
Personalization In order to enhance the personalized use of this product, we have specifically added this setting. It can be set for different requirements of users. In this setting, the display's battery indicator setting, PAS level setting, current limit setting, PAS sensor setting, speed sensor setting, throttle function setting and system setting are included. A total of seven items, detailed settings are shown in table 3. Personalization Password Input Hold【UP】 and 【DOWN】buttons simultaneously for 2 seconds to enter the normal setting state; then hold【UP】 ... - Page 26 increase/decrease the input value by 【UP】/【DOWN】. After the 4‐digit password is entered, press 【MODE】 button to confirm. If the password is correct, enter the power‐on password setting interface, otherwise it will stay in the password input state. Hold 【MODE】to exit. The permission password is: 2962. By 【UP】/【DOWN】 to select the content to be set, and press 【MODE】 to enter the corresponding setting interface. 22 ...
-
Page 27: Battery Indicator Setting
Battery Indicator Setting VOL indicates the battery indicator setting. It is required to input the voltage values of 1 to 5 one by one. Take the first battery value as an example: “1” on the display indicates the first voltage and “31.5” is the first battery value. Change the value by increasing/decreasing with 【UP】/【DOWN】. Press 【MODE】 to ... -
Page 28: Pas Proportion Setting
corresponding PAS ratio value setting interface. PAS Proportion Setting By setting the PAS proportion, you can adjust the speed of each gear to meet the needs of different riders. Taking the first gear as an example, “15 ‐ 30” is the recommended range of the PAS proportion, and “22” is the current value of the first gear (ie, the output is 22%). By increase/decrease settings with ... -
Page 29: Current Limit Setting
Current Limit Setting CUR indicates the current limit setting. The current limit can be set from 7.0‐18.0A. Change the maximum current value of the controller by UP/DOWN. Hold【MODE】 to confirm and return to the personalization parameter setting interface. The factory default value of the display is 15A. Depending on the hardware of the controller, the controller may not be able to reach the set 18A. 25 ... -
Page 30: Pas Sensor Setting
PAS Sensor Setting PAS Sensor Direction Setting Run indicates the PAS sensor direction setting. The display shows run.F/b. run.F stands for forward and run.b stands for reverse. Switch by 【UP】 / 【 DOWN】 . Press 【MODE】 to confirm and enter the PAS sensor sensitivity setting. The factory default value of the sensor direction is positive. PAS Sensor Sensitivity Setting The display shows SCN, indicating the sensitivity of the PAS sensor. The setting range is 2‐9. 2 indicate the highest sensitivity and 9 indicate the lowest sensitivity. Increase/decrease setting values by ... -
Page 31: Pas Sensor Proportion Parameter Setting
PAS Sensor Proportion Parameter Setting N‐ represents the PAS sensor proportional parameter. The power sensor parameter values can be selected by 【UP】 / 【 DOWN】 . The larger the value, the more obvious the PAS feeling. Hold【MODE】 to confirm and return to the personalization parameter setting interface. 27 ... -
Page 32: Speed Sensor Setting
Speed Sensor Setting SPS indicates the speed sensor setting. It can be set according to the number of magnet heads mounted on the wheel of the e‐bike, and the setting range is 1‐9. Modify it by pressing 【 UP】 / 【 DOWN】 . Hold【MODE】 to confirm and return to the personalization parameter setting interface. The factory default value is 1. Throttle Function Setting Throttle Push Cruise Control Enable Setting HL indicates the throttle’s push cruise control. HL: N means that the ... -
Page 33: Throttle Level Enable Setting
return to the display’s personalization parameter setting interface. The factory default value of the display is N. Throttle Level Enable Setting HF indicates the throttle level setting. HF: N means that the throttle doesn’t split levels according to the PAS ratio. If the throttle level splitting is enabled, the maximum output of the motor can only reach the speed of the corresponding PAS level shown on the display when turning the throttle; if no level splitting, ... -
Page 34: System Setting
System Setting Battery Delay Time Setting DL represents the battery delay time. The battery delay time 3/6/12s can be selected by 【UP】/【DOWN】. Press【MODE】 to confirm and enter the maximum speed limit setting interface. The default value is 3s. 30 ... -
Page 35: Max Speed Limit Setting
Max Speed Limit Setting MAX SPEED indicates the maximum speed limit. The maximum speed limit value can be set by 【UP】/【DOWN】, and the setting range is 25‐40 Km/h. Press【MODE】 to confirm, and enter the push walk mode enable setting interface. The factory default is 25Km/h. This setting parameter is the upper limit specified by the display manufacturer. ... -
Page 36: Push Speed Setting
setting. The factory default value of the display is Y. Push Speed Setting PU indicates the push speed setting. By setting the assist speed value, you can adjust the pushing speed to meet the needs of different riders. Adjusted by 【UP】 / 【 DOWN】 , the adjustable range is “10‐50”. Press 【MODE】 to confirm and enter the slow start setting interface. The display defaults to 25 (ie, 25% output). ... -
Page 37: Slowly Start Up Setting
Slowly Start up Setting SP indicates the slowly start up setting. The adjustable range is 1‐4. 4 is the slowest. Select with 【UP】/【DOWN】. Press and hold 【MODE】 to confirm and return to the display’s personalization parameter setting interface. The display defaults to factory default 1. Exit Setting In the personalized parameter setting state: press 【MODE】 to confirm the input to enter the next setting; hold 【MODE】 to confirm the current setting and exit the current setting state; hold 【DOWN】... -
Page 38: Restore Default Setting
Restore Default Setting DEF means to restore the default parameters. Hold【DOWN】and 【MODE】buttons simultaneously for 2 seconds to enter the Restore Default Parameters interface. Switch Y or N with 【UP】/ 【DOWN】. Y indicates that the default parameters need to be restored. Hold【MODE】 to confirm. If you select Y, you need to enter the permission password to restore the default parameters. The permission password is 0368. Press 【MODE】 to shift and increase/decrease the value by 【UP】 / 【DOWN】 . After the 4‐digit password is entered, press ... -
Page 39: Faq Answers
In the recovery default, the battery indicator, ODO and TRIP are unrecoverable, but the power‐on password is in recovery. FAQ Answers Q: Why can’t turn on the display? A: Check if the battery power is turned on, the outer leakage cable is broken or not. 35 ... -
Page 40: Quality Warranty And Coverage
Q: What should I do if the display shows error code? A: Timely repair at the e‐bike repair shop. Quality Warranty And Coverage I. Warranty: 1. In the case of normal use, due to the quality problems caused by the product itself, the company will be responsible for the warranty during the warranty period. 2. The warranty: 24 months since the display out of the factory. 3. Regarding the storage and handling of the product, please comply with local laws and regulations and environmental requirements. II. The following conditions are not covered by the warranty: ... -
Page 41: Circuit Block Diagram
Circuit Block Diagram Standard Connector Wire Sequence Connect to the controller Display Outlet Connection Interface Table：Standard connector wire sequence table Standard Standard Wiring Function Wiring Color 1 Red（VCC） Display power Wire 2 Blue(K) Controller Power Control Wire 3 ... -
Page 42: Software Version
Software Version This operating instruction is general‐purpose software (version V1.0). Some of the version of the e‐bike LCD may have slightly difference, all with actual use version. 38 ... -
Page 43: Attached Table 1：Definition Of Error Code
Attached Table 1：Definition of Error Code Error Code Definition 21 Abnormal Current 22 Abnormal Handlebar 23 Motor Phase Loss 24 Abnormal Motor Hall Signal 25 Abnormal brake 30 Abnormal Communication 39 ... -
Page 44: Attached Table 2：Password Checklist
Attached Table 2：Password Checklist S/N Screen Display Password Description Operation parameter 1 0512 setting password (Fixed) Default Power‐on 2 Password password (Can 1234 be modified) Password for personality 3 2962 parameter setting (Fixed) Restore setup 4 0368 password (Fixed) 40 ... -
Page 45: Attached Table 3：Personalization Parameters Table
Attached Table 3：Personalization Parameters Table Setting Screen S/N Setting Content Item Display Battery 5 Battery Value Setting 1 Indicator Setting PAS Level Selection PAS Level 2 Setting PAS Ratio Current Limit Current Value 3 Limit setting PAS Sensor Direction PAS Sensor PAS Sensor Sensitivity 4 Setting Speed Speed Sensor Magnet 5 Sensor ... - Page 46 Attached Table 3： Screen S/N Setting Item Setting Content Display Throttle Push Cruise Control Enable Setting Throttle 6 Function Throttle PAS Level Splitting Enable Setting Battery Delay Time Max Speed Setting Push Cruise Control Enable Setting System 7 Setting Push Speed Setting Slow Start Setting 42 ...
-
Page 47: Attached Table 4：Pas Proportion Default Value
Attached Table 4：PAS Proportion Default Value PAS Level 1 2 3 4 5 6 7 8 9 Option 0‐3/ 1‐3 47% 72% — — — — — — 0‐5/ 1‐5 40% 55% — — — — 0‐7/ 1‐7 35% 46% — — 0‐9/ 1‐9 25% 34% 96% ... - Page 48 KING‐METER 44 ...
