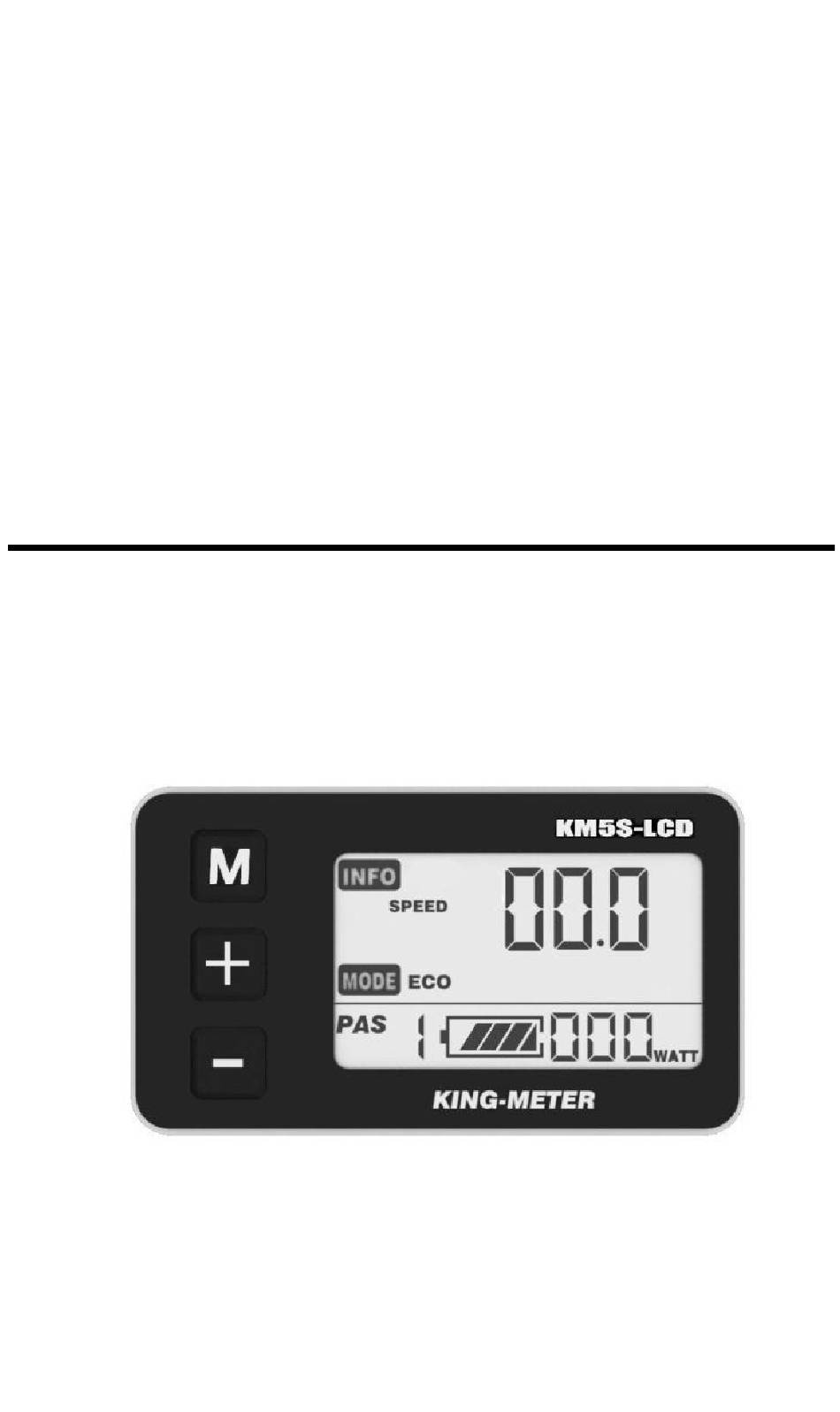

- Page 1 KING-METER MANUAL KM6S –LCD Actual Display May Differ...
- Page 2 About the User Manual Dear Customer, Read instructions prior to operating. The following instructions will enable you to know well about KM6S functions and get knowledge in some basic settings. Advanced settings are not described in order to aviod users messing up LCD functions which may cause malfunction.
- Page 3 Appearance and Size Material and Color LCD housing is made of PC. Durable temperature is -20 to 60℃. Actual product and dimension figure (unit: mm) Actual one may differ...
- Page 4 Specifications: KM6S gets three buttons. They are is referred as “MODE”. as "UP" Hereinafter, as “DOWN”. Do not unplug the quick disconnect plugs while power switch is on! Avoid hitting. Do not peel off the waterproof sticker on the screen. Do not modify system...
- Page 5 Installation Fix LCD display onto the handlebar in the middle,adjust the display at a pefect angle for vision,tighten bolts. Normal Operation Power On/Off 1.Hold button "MODE"for 2 seconds,LCD is power this point power supply controller is connected as well.2.Repeat STEP 1, power is off. When parking e-bike for about 10 minutes, the display shuts down automatically.
- Page 6 Push Cruise Control Hold DOWN for 2 seconds,Push Cruise Control is activated. This function only works by holding the button "DOWN" all the way and discontinues whenever your finger is off the button. The function enables you to save energy when you walk E-BIKE climbing.
- Page 7 Battery Indicator The battery indicator is dry battery cell shaped with 5 strips. Each strip indicates percentage of charge.Indicator starts flashing when battery is going dead. Erro r Code Information When E-BIKE has problem with Electrical System.Error code will appear on LCD screen automatically. Check the table on the last page for troubleshooting.
- Page 8 Phone Charging System When LCD display is power on,plug cellphone charger cord into USB port on LCD, phone charging system is activated by pressing buttons" MODE" +"UP" + "DOWN" at the same time. Charging continues at this point when you shut off LCD. At any moment when you unplug the charger cord,Charging system stops working and you will have to turn off and restart LCD to get the system activated when you continue to charge mobile phone...
- Page 9 2."NO" is the default . Press the button"UP" or "DOWN" to take "YES" or "NO" then hit the button "MODE" to confirm.If take "YES",TRIP&TRIP TIME is cleared up,take "NO" the record keeps the same. BACKLIGHT 3.Repeat STEP 1 then hit the button "MODE" to pick setup menu till flash showing bL-1 which is default setup for BACKLIGHT.
- Page 10 Normal settings Wheel Diameter Settings 1.Password 0512 needs to be input to enter into setup menu. Press and hold buttons"UP"+"DOWN" for 2 seconds till get on the screen an interface shown as below 2.Press buttons "MODE"+"DOWN"for 2 sceonds till get a flash for password input,then input password 0512 by pressing the button"MODE","UP"or "DOWN"...
- Page 11 Advanced Settings Advanced settings are not available since we know it from the fact that some of users get LCD malfunctioned by modifying settings and are unable to restore original setting so therefore E-BIKE is not working correctly in this condition.We do not offer Password for Advanced Settings in the hope of avoiding customers messing up LCD system which may cause malfunction to happen to LCD.
- Page 12 Ⅱ、Other The following issues are not under the cover of the Warranty. 1.Dismantled deliberately 2.Damage is caused due to improper installation or operation . 3.LCD screen is broken due to rough handling in transport. 4.Wire is ripped or broken. 5.LCD is soaked under water 6.
- Page 13 Attached list 1：Error code definition Error Code Definition Current Abnormality Throttle Abnormality Motor Abnormality Motor Hall Signal Abnormality Brake Abnormality Communication Abnormality Using parameter setting 0512 password(settled) Starting up password Personality setting password(settled) Recovery setting password(settled)
- Page 14 Attached list 3：Personality Parameter setting Setting Display Details Five battery power value Battery power Power assist level option Assistance Assistance proportion Limit current Current-limiting PAS direction PAS sensitivity Power assist sensor PAS magnet No Speed sensor magnet No Speed sensor Throttle-changing Throttle Throttle...
- Page 15 Items Display Setting Time of battery power delay System setting Max speed Attached list 4：Power assist table Level Level Item 0-3/ 1-3 — — — — — — 0-5/ 1-5 — — — — 0-7/ 1-7 — — 0-9/ 1-9...
- Page 16 Attached list 5：symbol definition Symbol Definition Setting Password Power delayed time Recover default Trip and time to clear Backlight Throttle-changing Throttle power assist walk Speed limit Wheel diameter Question mark Backward Forward...
- Page 17 KING-METER...
