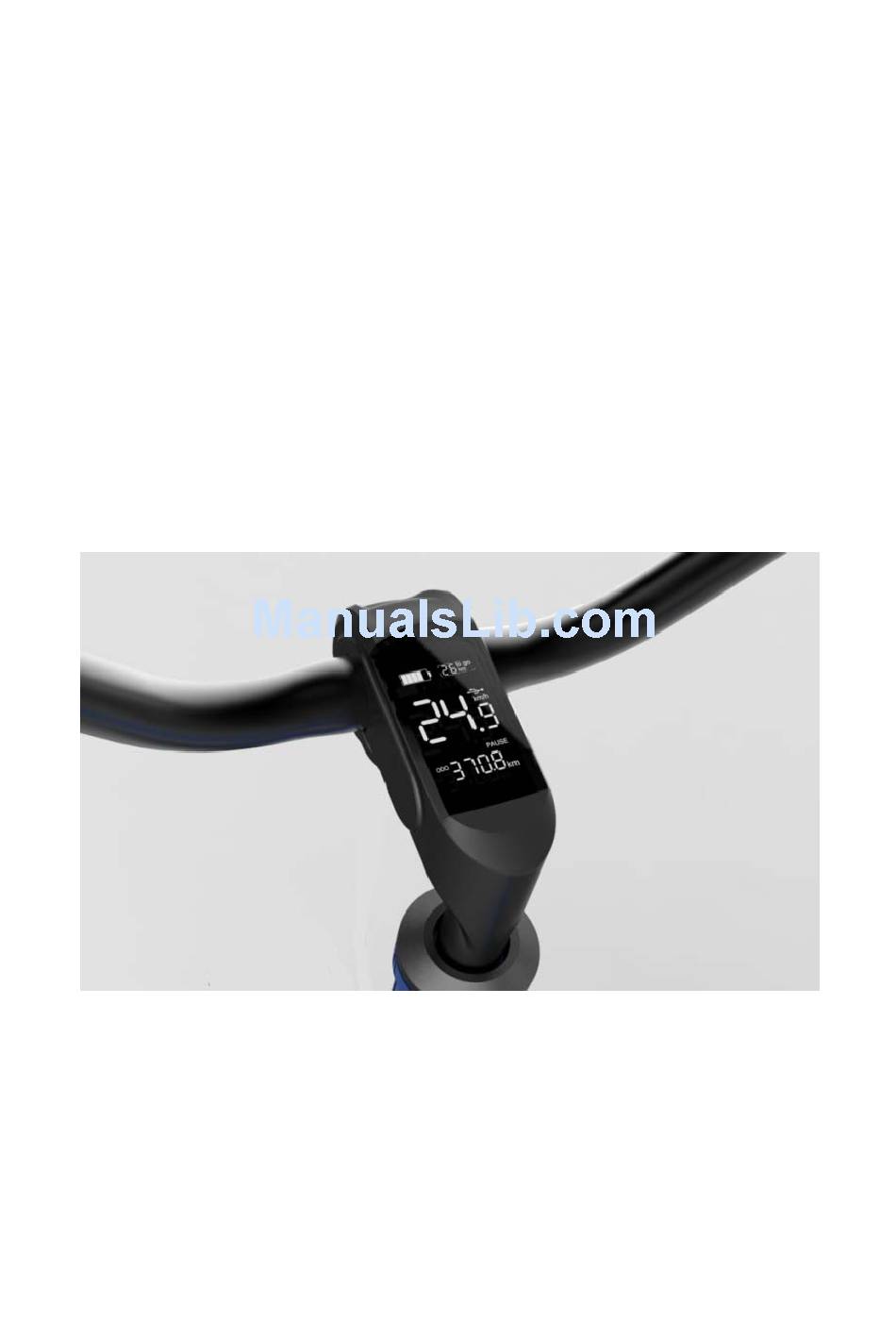

- Page 1 KING-METER USERS GUIDE JUST TWO...
-
Page 2: Table Of Contents
Contents 1. Preface ............................3 2. Appearance, dimensions and material ..................3 3.Function summary ........................3 4. Normal monitor area ........................4 5. Precautions ..........................4 6. Assembly instruction ........................5 7. Normal Operation ........................5 7.1 ON/OFF ..........................5 7.2 speed/distance（real time speed/single trip/ODO）... -
Page 3: Preface
1. Preface To ensure the best performance of your e-bike, please read through the JUST TWO product introduction carefully before use. This user manual covers: Hardware installation, set up and normal operation. It will also help to limit any confusion and assist in you to resolve any malfunctions. -
Page 4: Normal Monitor Area
◆ ding duration ◆ rip distance ( sing trip & O ODO) ◆ rror code list ◆ nergy burned ◆ USB charging state 4. N Normal m monitor ar JUST TWO monit tor area 5. P Precautio Do n not plug in an nd plug out di isplay when i it is working. -
Page 5: Assembly Instruction
Avoid being hit Send display to after sales instantly once find faulty 6. Assembly instruction This model integrate stem and display as one unit. So please fix it with bike frame when assembly. Then connect the display and controller by plugs. 7. -
Page 6: Battery Indicator
duration（TIME） single trip（TRIP） Total distance（ODO） energy burned（Fat） 7.3 Battery indicator When the battery is full, 5 bars are all on. When battery is short of power, the frame of the sign will flash. It means the battery is under voltage, which need be recharged immediately. -
Page 7: Usb Charging
Full Under Voltage 7.4 USB charging The display is with USB port, used for mobiles, outputting of 600mA. When bike is rented, please connect display and cell phone by cable to enable charging and the indicator will be on. At any state, disconnecting will end the charging. USB charging window... -
Page 8: Temporary Parking
7.5 Temporary parking When you stop the bike and lock it, display will shows the locking state by the flashing sign. Window of temporary parking 7.6 Remaining distance After power on display, it shows remaining distance as default, to warn the riders of remaining range. -
Page 9: Error Code List
7.7 Error code list When the electric system is working wrongly, display will show error code. Only when the faulty is fixed, it will exit faulty working interface Error code window Error code list and definition： Error code definition solution Abnormal current check whether 3 phase are short circuit Throttle defect... -
Page 10: Faq
8. FAQ Q：Why can’t turn on the display? A：Please check if the cable is well connected with the controller. Q：How to deal with the error code display? A：Contact the e-bike maintenance station in time. 9. Guaranty and warranty scope 1. We are not responsible for the scratched or broken shell after the products are delivered out of the factory.
