Summary of Contents for Peak Scientific NM20ZA

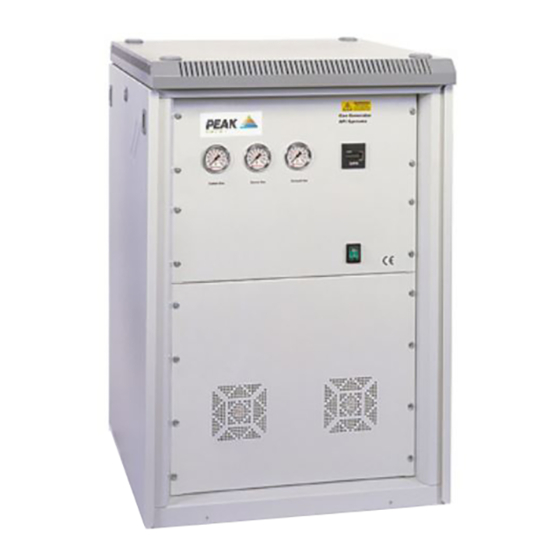

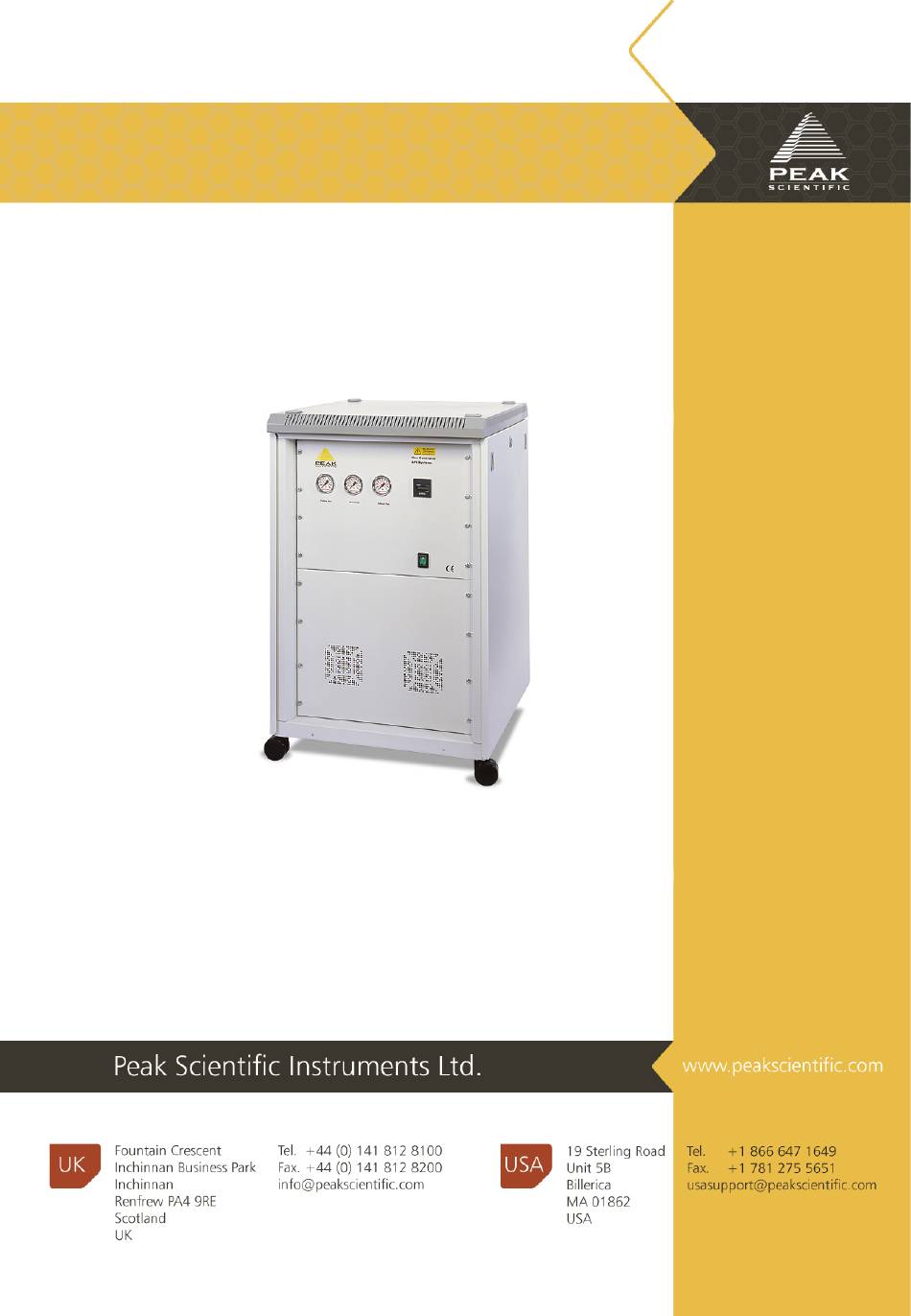

- Page 1 Nitrogen NM20ZA Nitrogen Generator User Manual NM20ZA – Rev 13...
-
Page 2: Table Of Contents
High Purity Nitrogen Generator UM – NM20ZA – Rev 13 Contents Page Contents Document Change History Warranty Statement Safety Notice to Users RoHS Compliance Statement WEEE Compliance Statement Technical Specification Introduction Unpacking and Installation Installation Useful Information Electrical Connection Generator Environment... -
Page 3: Document Change History
High Purity Nitrogen Generator UM – NM20ZA – Rev 13 History Document Change History Rev No. Change Initials Date 23/01/2001 Document Created 30/01/2001 Document reviewed & updated 16/02/2001 Document reviewed & updated 08/05/2001 Document reviewed & updated 15/08/2002 Document reviewed & updated... -
Page 4: Warranty Statement
SAFETY NOTICE TO USERS These instructions must be read thoroughly and understood before installation and operation of your Peak NM20ZA generator. Use of the generator in a manner not specified by Peak Scientific MAY impair the SAFETY provided by the equipment. -
Page 5: Rohs Compliance Statement
High Purity Nitrogen Generator UM – NM20ZA – Rev 13 Declaration of Conformity... -
Page 6: Technical Specification
High Purity Nitrogen Generator UM – NM20ZA – Rev 13 Technical Specification Generator Environment Minim um operating am bient tem perature 5°C (41°F) Maxim um operating am bient tem perature 30°C (86°F) Maxim um relative hum idity Maxim um Altitude... -
Page 7: Introduction
UM – NM20ZA – Rev 13 Introduction Welcome to the User Manual for the Peak Scientific NM20ZA Nitrogen Generator. Enclosed in this manual you will find the information required to ensure that your generator is operated & serviced according to our recommended guidelines which will prepare you for long and trouble free Nitrogen generation. -
Page 8: Unpacking And Installation
Installation Unpacking and Installation Although Peak Scientific takes every precaution with safe transit and packaging, it is advisable to fully inspect the unit for any sign of transit damage. Check ‘SHOCK WATCH’ label for signs of rough handling prior to unpacking -... -
Page 9: Installation
High Purity Nitrogen Generator UM – NM20ZA – Rev 13 Installation... -
Page 10: Useful Information
High Purity Nitrogen Generator UM – NM20ZA – Rev 13 Installation Useful Information The diameter of the tubing which will be connected to the gas outlets is important and is determined by the length of tubing required. Failure to follow these recommendations could lead to accelerated compressor wear. -
Page 11: Generator Environment
High Purity Nitrogen Generator UM – NM20ZA – Rev 13 Generator Environment The Generator is designed for indoor use only. The unit should be installed adjacent to the Mass Spectrometer it is supplying. If this is not convenient then the unit can be sited elsewhere, however, consideration should be made of the lengths of pipe runs as pressure drops can result from extended runs of pipe. -
Page 12: Generator Connections
High Purity Nitrogen Generator UM – NM20ZA – Rev 13 Connections and Connections and Controls controls... -
Page 13: Generator Operation
UM – NM20ZA – Rev 13 Operation The NM20ZA generator is designed specifically to minimize operator involvement. Given that the system is installed as described in earlier sections and is serviced in accordance with the following maintenance recommendations then it should simply be a matter of turning the generator on. -
Page 14: Principle Of Operation
UM – NM20ZA – Rev 13 Principle of Operation Principle of Operation Peak Scientific Instruments NM20ZA Generators utilize two different types of air preparation membranes to produce the required Gas outputs. The Nitrogen side of the generator employs “Hollow Fiber Membrane” Technology to efficiently separate Nitrogen from other gases present in ambient air. -
Page 15: Routine Maintenance
High Purity Nitrogen Generator UM – NM20ZA – Rev 13 Routine Maintenance Maintenance WARNING Servicing and/or repair of the Generator should only be undertaken by a TECHNICALLY COMPETENT PERSON, with the generator in its safely isolated condition. SAFELY ISOLATED CONDITION Definition: The unit is in a Safely Isolated Condition when it is disconnected from its application, fully de-pressurised and isolated from the Electrical Supply. -
Page 16: Maintenance Log
High Purity Nitrogen Generator UM – NM20ZA – Rev 13 Maintenance Log Maintenance Log for Serial Number _____________ Work Done Remarks Name Date...
