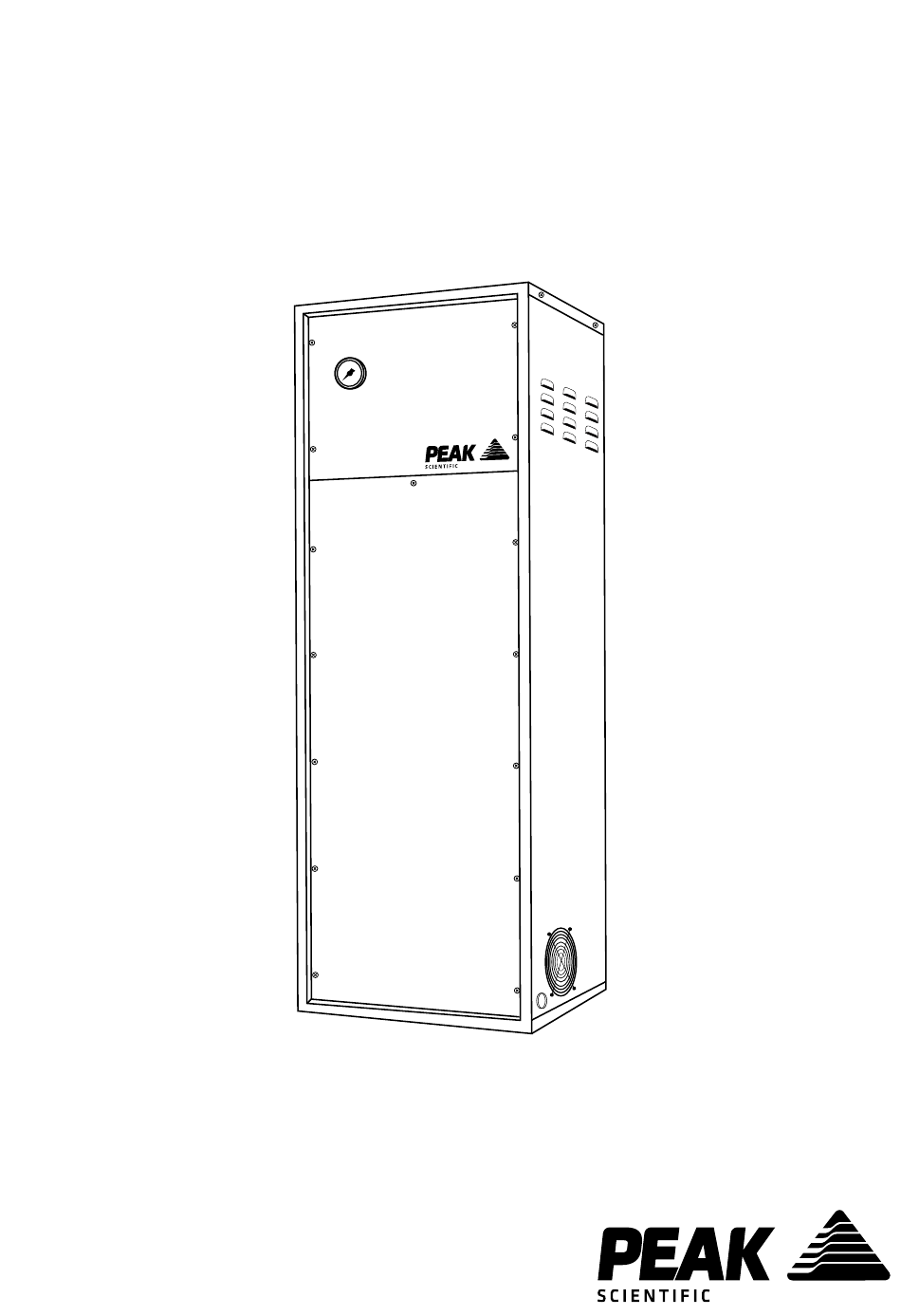

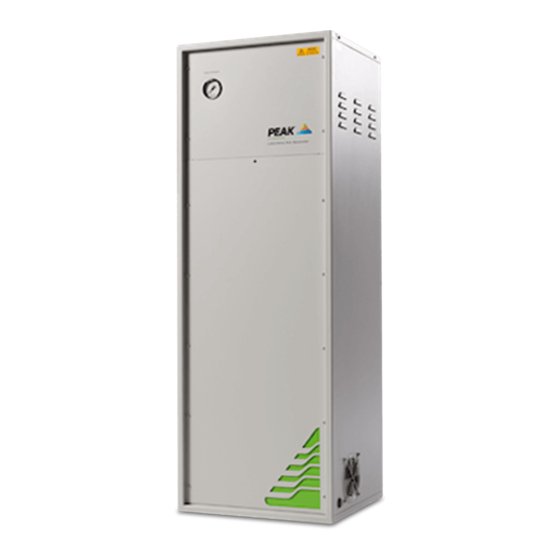

- Page 1 NG3000-5000 (All Models) Installation Guide NG3000-5000 Installation Guide Rev 1 PN IG-0021 17/08/17 RS-2100...
-
Page 2: Change History
User Manual for your gas generator. Thank you for selecting Peak Scientific to meet your laboratory gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or Peak Partner from which you purchased your generator. -
Page 3: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 4: Fittings Kit
Fittings Kit 1/4” - 6mm Push Fit Elbow Fitting 02-4331 US Mains Cable C13 6-15 04-1029 PTFE 6mm Tubing 00-1302 US Mains Cable C13 5-15 04-1039 No. 8 Screw 00-4075 UK Mains Cable C13 04-1030 1/4” x 1/8” Compression Fitting 02-1000 No. - Page 5 Unpack the generator from the shipping crate and position on a flat surface, in desired area. The NG range generator is designed to be mounted against a wall for safety reasons. Locate the screw in the top right rear corner of the unit, beside the yellow warning label.
- Page 6 Remove the screw from the generator this should be repeated for the other side of the unit, and retain. Next, using the screw which was removed, fit the bracket and washers provided to the generator. Again this should be repeated for the other side. The bracket is adjustable to accommodate varying kickboard widths.
- Page 7 Finally, using the dimensions provided, fix the wall plugs to the wall, ensuring wall plug is suitable for the type of wall. If not, use the correct type. Secure the generator to the wall with the screws from the fittings kit. For NG 3000-5000(A) before the unit is used, the transit brackets must first be removed from the compressor.
- Page 8 Then remove the front panel from the generator. Now locate the red transit bracket attached to the compressor foot plate, and remove the two screws on the bracket. Page 8...
- Page 9 Next remove the transit bracket by first lifting up and then out of the generator. Replace the front panel and secure it to the generator using the 11 screws that were previously removed. 02-4421 Attach the ¼” Compression Fitting 02-4421 to the generators gas outlet. Page 9...
- Page 10 04-1030/04-1029/ 04-1038/04-1039 Select the appropriate mains cable from the fittings kit and plug the IEC 60320/C19 cable into the mains input at the side of the generator. CAUTION 110V 230V 110VAC 50/60Hz OR 230VAC 50/60Hz Plug the mains cable into the corresponding 110VAC 50/60Hz OR 230VAC 50/60Hz single phase power supply.
- Page 11 Switch the generator power ON using the switch on the side of the unit. hours Leave the generator switched on for a period of 8 hours to purge the system. The pressure gauge on the front panel will gradually increase to the factory set pressure.
- Page 12 Attach the ? Tubing to the fitting attached to the generators gas outlet and connect to the gas inlet of your instrument. CONGRATULATIONS Your Peak Scientific gas generator is now fully installed, operational and ready to supply gas on demand to your instrument. Page 12...
-
Page 13: General Notes
General Notes The Teflon tube supplied in the fittings kit is to allow the generator to be installed adjacent to the instrument it is supplying. If the generator is to be installed further away from the instrument then attention needs to be paid to pressure drops that could occur. - Page 14 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
- Page 15 User Manual for your gas generator. Peak Scientific has highly trained, fully certified Field Service Engineers located in over 20 countries across every continent around the world. This allows us to provide an industry-leading rapid response service to our customers.
