Precision Zero Air
User Manual
2013 © Peak Scientific - Rev. 0 - 09/01/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Precision Zero Air and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Peak Scientific Precision Zero Air

  • Page 1 Precision Zero Air User Manual 2013 © Peak Scientific - Rev. 0 - 09/01/13...
  • Page 2: Table Of Contents

    Installation Generator Environment General Dimensions Air Purity Rear Connections Fittings Kit Air In Electrical Connection Start-Up Sequence IMPORT ANT DOCUMENTS Service Requirements Service Schedule Service Plans Cleaning Trouble Shooting Page 2 2013 © Peak Scientific - Rev. 0 - 09/01/13...
  • Page 3: Change History

    Please review each of the following sections carefully. Thank you for selecting Peak Scientific to meet your Gas Generation needs, should you require any further assistance or support please do not hesitate to contact Peak Scientific or the Peak Partner from which you purchased your Generator.
  • Page 4: Introduction

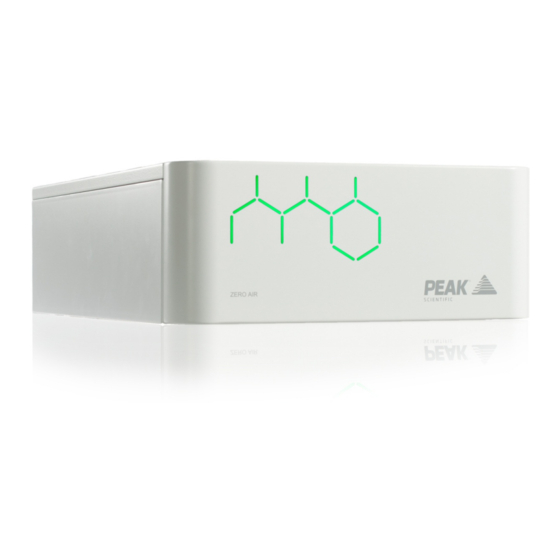

    Series will keep your gas flowing with consummate accuracy and reliability, whatever your needs, while fitting neatly into any lab space. The Precision Zero Air Generator provides hydrocarbon free air, suitable as a Flame Support Gas at Trace and Standard detection limits.
  • Page 5: Safety Notices

    These instructions must be read thoroughly and understood before installation and operation of your Peak Precision Zero Air Generator. Use of the Generator in a manner not specified by Peak Scientific MAY impair the SAFETY provided by the equipment. When handling, operating or carrying out any maintenance,...
  • Page 6: Warranties And Liabilities

    (other than pursuant to clause 6 above) that may be suffered by the Customer or any third party. 2002/95/EC RoHS (Restriction of Hazardous Substances) Peak Scientific Instruments Ltd fully complies with its obligations towards the European WEEE (Waste of Electrical and Electronic Equipment) Directive Page 6...
  • Page 7: Technical Specifications

    38.0 (14.9) x 54.0 (21.2) x 15.6 (6.14) Generator Weight Kg (lbs) 16 (35) Shipping Crate Dimensions cm(inches) 54.2(21.3) x 70.0(27.5) x 44.0(17.3) Shipping Weight Kg (lbs) 19 (41.9) Page 7 2013 © Peak Scientific - Rev. 0 - 09/01/13...
  • Page 8: Unpacking

    Check ‘SHOCKWATCH’ label for signs of rough handling prior to un-packing – Any damage should be reported immediately to the carrier and Peak Scientific or the Peak Partner from where the unit was purchased.
  • Page 9: Contents

    User Manual CD– Precision Zero Air Unpacking Instructions The Precision Zero Air generator weights approximately 16Kg, and as such should only be lifted using safe lifting practice. Remove the screws encircled in red around the bottom of the crate lid and lift upwards.
  • Page 10: Installation

    Please refer to the drawing below for the general dimensions of the unit. Maximum Ambient Conditions: 35°C (dry bulb) 70%RH (Max) Non-Condensing General Dimensions 38.0cm 15.6cm 54.0cm Page 10 2013 © Peak Scientific - Rev. 0 - 09/01/13...
  • Page 11: Air Purity

    Precision Zero Air Air Purity The Precision Zero Air Generator should be connected to an air supply that, as a minimum, meets ISO8753-1:2010 Class 1.4.1 Class 1 Particulate In each cubic metre of compressed air, the particulate count should not exceed 20,000 particles in the 0.1 - 0.5 micron size range, 400 particles in the 0.5 - 1...
  • Page 12: Fittings Kit

    Air In Any doubts as to the suitability of your compressed air supply should be referred to Peak Scientific or any of their authorised partners. Page 12 2013 © Peak Scientific - Rev. 0 - 09/01/13...
  • Page 13: Electrical Connection

    However, running continuously at voltages outwith this is not recommended. Extended periods at extremes can have a detrimental effect on the operation and life of the Generator. Page 13 2013 © Peak Scientific - Rev. 0 - 09/01/13...
  • Page 14: Start-Up Sequence

    The LED’s on the front panel will illuminate YELLOW for the start-up period. On completion of the start-up period, up to 60 minutes, the fascia will illuminate GREEN. The Generator is now ready to be used. Page 14 2013 © Peak Scientific - Rev. 0 - 09/01/13...
  • Page 15: Important Documents

    MODEL TYPE: INSTALLATION DATE (DD/MM/YYYY): TELEPHONE: Important Please Note: You have 1 month to register your Peak Scientific product from the date of shipment. If you wish to defer installation of your generator you must notify Peak Scientific within month shipment date.
  • Page 16: Service Requirements

    Due to the simplicity of the design and the small number of moving parts, the Precision Zero Air Generator will have a long and trouble free life. However as with all scientific and technical equipment it should be regularly inspected and serviced as below.
  • Page 17: Trouble Shooting

    Check for leaks between the generator and The instrument is reporting instrument. low pressure. • Contact your service provider. The fascia Yellow illumination does not change • Contact your service provider. to green. Page 17 2013 © Peak Scientific - Rev. 0 - 09/01/13...
  • Page 18 107-0061 Singapore, 118223 São Paulo SP Brasil Tel: +886 2 8226 2383 Tel: +1 866 647 1649 Tel: +81 3-6864-0468 Tel: +65-6777 1966 Fax: +886 2 8226 9499 Fax: +65-6777 1978 2013 © Peak Scientific - Rev. 0 - 09/01/13...
