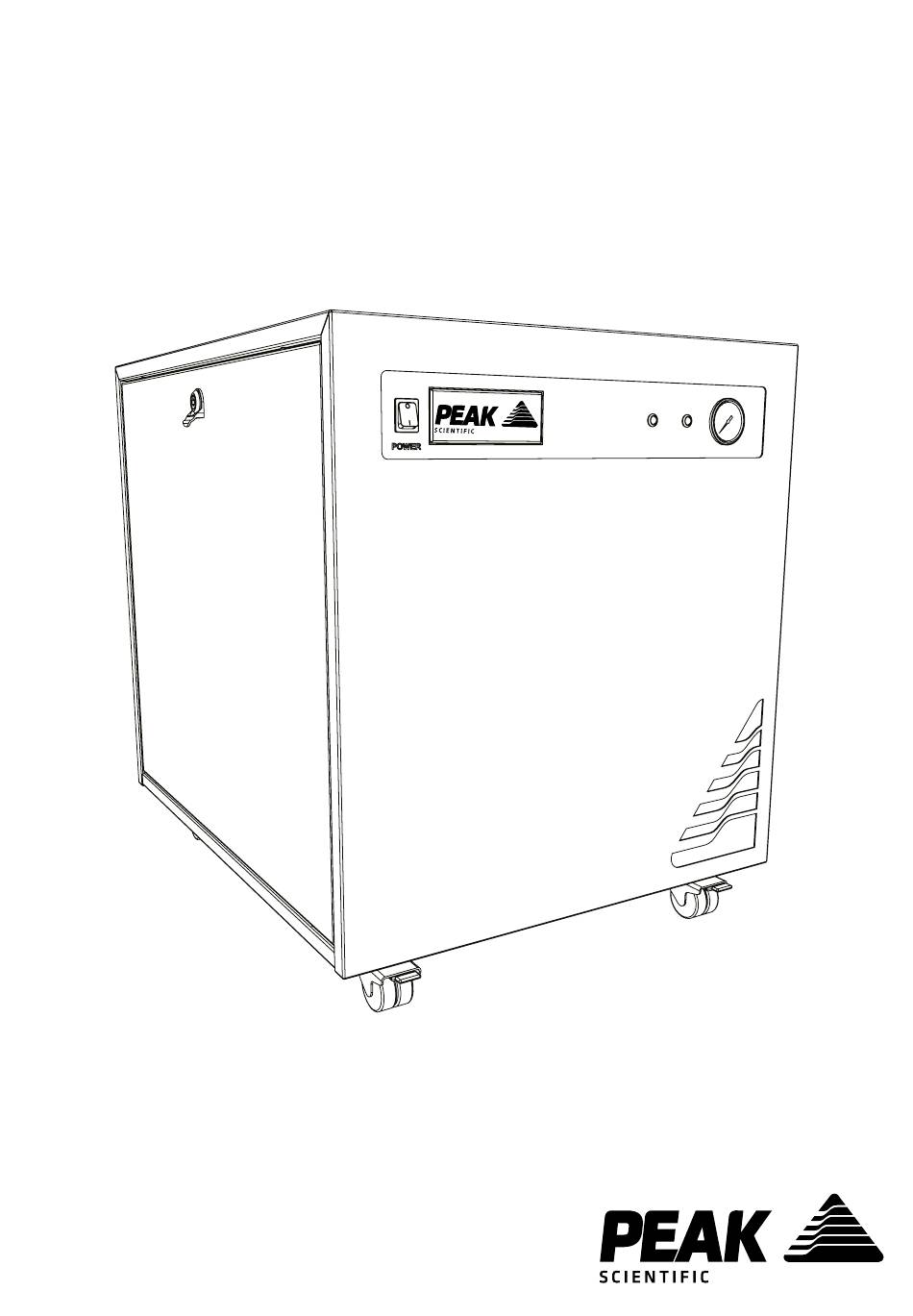

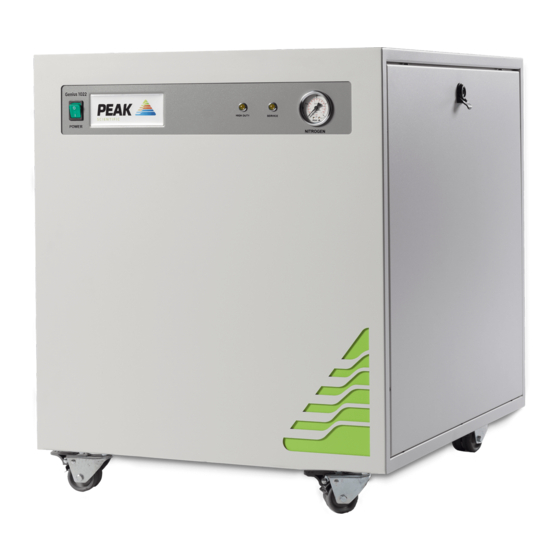

- Page 1 Genius 1022, 1023 & NM32LA (All Models) User Manual Copyright © Peak Scientific Instruments Ltd 2021 — Genius1022-1023-NM32LA User Manual Rev 12 PN UM-0001 RSID 1483 EN —15/11/2021...
-
Page 2: Table Of Contents
Safety Notices Symbols Safety Notice to Users EU Declaration of Conformity UK Declaration of Conformity WEEE Compliance Statement CSA Compliance Statement Technical Specification Genius 1022 Technical Specification Genius 1023 Technical Specification Genius NM32LA/NM32LA-A Technical Specification Genius NM32LA 110V Unpacking Fittings Kit Contents... -
Page 3: Change History
Users can refer to the contents page to find the relevant information. Please review each of the following sections carefully. Thank you for selecting Peak Scientific to meet your gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or the Peak Partner from which you purchased your generator. -
Page 4: Introduction
Introduction The Genius 1022, 1023 & NM32LA (All models) have been developed to cater for LC/MS systems which require a Nitrogen gas supply. These models provide a source of Nitrogen gas with other features including: • Small in size – fits under a standard lab bench •... -
Page 5: Warranties And Liabilities
Warranties and Liabilities 1. The Company warrants that it has title to the Goods. 2. Subject to the provisions of this clause the Company warrants that the Goods shall comply in all material respects with any specification referred to in the Order Confirmation (as the same may be amended) and shall, subject thereto, be free from defects in material and workmanship for the lesser of a period of twelve months from the date of delivery or thirteen months from the date of dispatch... -
Page 6: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 7: Eu Declaration Of Conformity
Equipment Type: Nitrogen Gas Generator Model Designator: Genius 1022, 1023, NM32LA, NM32LA 110V & NM32LA-A To which this declaration relates, is in conformity with the following applicable EU Directives, harmonized standards, and other normative requirements. • Low Voltage Directive 2014/35/EU... -
Page 8: Uk Declaration Of Conformity
Equipment Type: Nitrogen Gas Generator Model Designator: Genius 1022, 1023, NM32LA, NM32LA 110V & NM32LA-A To which this declaration relates, is in conformity with the following applicable UK Statutory Instruments, Standards and other normative requirements. • The Electrical Equipment (Safety) Regulations 2016 (SI 2016 / 1101) as amended. -
Page 9: Weee Compliance Statement
WEEE Compliance Statement The Waste Electrical and Electronic Equipment (WEEE) Regulations SI 2013 No 3113 and or the Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU apply to all electrical and electronic equipment placed on the market in the UK and EU covered by the scope of regulations which can be found in the Government Guidance Notes (PDF) produced by the Department for Business Innovation and skills for the UK and here for Europe. -
Page 10: Csa Compliance Statement
CSA Compliance Statement CSA Group (Canadian Standards Authority) is a Nationally Recognised Testing Laboratory (NRTL), headquartered in Toronto Canada. They are authorised to evaluate product to both their own and Underwriters Laboratory (UL) standards and certify the product to be in compliance to the relevant standards. Peak products are certified to the current in force revision of the following standards in order to cover both Canadian and United States requirements for “Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory use,... -
Page 11: Technical Specification
Technical Specification Genius 1022 Environment Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 30°C (86°F) Maximum Altitude 3000 m Maximum Relative Humidity 80% Non-Condensing Minimum Storage Temperature* -20°C (-4°F) Maximum Storage Temperature* 60°C (140°F) *NOTE – When taken out of storage the Generator should be allowed to acclimatize at room temperature for a minimum of 3 hours before operation. -
Page 12: Technical Specification
Technical Specification Genius 1023 Environment Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 30°C (86°F) Maximum Altitude 3000 m Maximum Relative Humidity 80% Non-Condensing Minimum Storage Temperature* -20°C (-4°F) Maximum Storage Temperature* 60°C (140°F) *NOTE – When taken out of storage the Generator should be allowed to acclimatize at room temperature for a minimum of 3 hours before operation. -
Page 13: Technical Specification
Technical Specification Genius NM32LA/NM32LA-A Environment Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 30°C (86°F) Maximum Altitude 3000 m Maximum Relative Humidity 80% Non-Condensing Minimum Storage Temperature* -20°C (-4°F) Maximum Storage Temperature* 60°C (140°F) *NOTE – When taken out of storage the Generator should be allowed to acclimatize at room temperature for a minimum of 3 hours before operation. -
Page 14: Technical Specification
Technical Specification Genius NM32LA 110V Environment Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 35°C (95°F) Maximum Altitude 2000 m Maximum Relative Humidity 80% Non-Condensing Minimum Storage Temperature* -20°C (-4°F) Maximum Storage Temperature* 60°C (140°F) *NOTE – When taken out of storage the Generator should be allowed to acclimatize at room temperature for a minimum of 3 hours before operation. -
Page 15: Unpacking
Check ‘SHOCKWATCH’ and ‘TIP-N-TELL’ labels for signs of rough handling prior to unpacking. Any damage should be reported immediately to the carrier and Peak Scientific or the Peak Partner from where the unit was purchased. Follow the unpacking instructions posted on the side of the crate. It will require two people to remove the unit from the shipping crate and to manoeuvre the generator to the desired location. -
Page 16: Fittings Kit Contents
10. US Mains Power Cable 110v ** 11. US Mains Power Cable 230v* All of the generators output ports are located on the output panel at the rear of the unit. Genius 1022, 1023 and NM32LA Only NM32LA 110V Only Page 16... -
Page 17: Installation
Installation Generator Environment The generator should be situated in a well ventilated environment, with at least a 75mm (3”) air gap all around it and should be positioned such that it can be easily disconnected from the mains supply if required. The generator is designed for indoor use only. -
Page 18: Generator Overview
Generator Overview General Dimensions 600 mm / 23.6” 750 mm / 29.5” The generator must always be placed on a flat, level surface. Failure to do so will affect the performance of the generator. WARNING Page 18... -
Page 19: Rear Connections
Rear Connections Mains Cable 1/4" Compression Fitting 6mm Push-Fit Fitting Unit Controls Pressure Gauge Service LED High Duty LED Power Switch Ensure all inlets and outlets are connected to correct sources and applications. All Connections should only be carried out by trained personnel. -
Page 20: Drain Connection
Drain Connection Fit the 6mm push fit fitting to the drain port located on the output panel. Tighten using a 16mm or 5/8” spanner. Use the 6mm tubing to connect this to a suitable drain connection or container. It should be noted that the Generator can expel a considerable amount of water from this (dependant on ambient humidity). -
Page 21: Electrical Connection
The voltmeter should be checked prior to the initial purge of the system. If the reading is 219V or less, then we would highly recommend fitting a Dual Tap Transformer 06-3200. This can be ordered directly from Peak Scientific. Page 21... -
Page 22: Start-Up Sequence
Start-Up Sequence Before the Generator is connected to the application, the Generator should be operated in isolation (i.e. not connected to the application) for thirty minutes. This is to ensure any impurities present are purged from the system. Failure to do this may harm the application. CAUTION Before re-connecting the Generator to the mains and switching it on for the isolation run, it is necessary to fit the silencer to the outlet port of the output panel. -
Page 23: Connecting To The Application
⁄ ” I/D). Tubing and fittings not supplied in the fittings kit. > 40 metres: Please contact Peak Scientific with the relevant distance and we will calculate the flow resistance and the tubing size required. A combination of ⁄ ”/ ⁄... -
Page 24: Normal Operation
Normal Operation The generator is designed specifically to minimize operator involvement. Given that the system is installed as described in earlier sections and is serviced in accordance with the specified maintenance recommendations (see Service Requirements), then it should simply be a matter of turning the generator on when it is required. The generator will automatically produce the factory set flow and pressure as detailed in the Technical Specifications. -
Page 25: Generator Cycling
Unusual Operation If at any time the generator begins to emit excessive noise or vibration, then it should be switched off and you should contact Peak Scientific or the Peak Partner from which the generator has been purchased. Page 25... -
Page 26: Service Requirements
Service Requirements Service Schedule Purchase Interval Component Qty. Visit NM32LA/1022/1023 Annual Maintenance Kit 12 Months NM32LA-A (10-6025)/ NM32LA 110V Annual Maintenance Kit Compressor Assembly www.peakscientific.com/ordering NM32LA/1022/1023 Compressor Compressor Assembly NM32LA-A Assembly * (10-6025) Compressor Assembly NM32LA 110V * If your compressors have been refitted 3 times they must now be replaced. Please note that when replacing the compressor assembly, the full Annual Maintenance Kit will not be required. -
Page 27: Service Indication
Service Indication The generator will notify the user of the service interval for the internal compressors. The generator has the following Service Indication Stages:- Stage 1 Once either compressor requires a service the LED indicator (yellow) on the front of the generator will illuminate. -
Page 28: Peak Protected
Peak Protected With Peak Scientific you invest in not only a product but peace of mind. With a network of certified Peak engineers stationed throughout the globe, Peak’s rapid response team are never far away and our commitment is to keep your generator running day in, day out, protecting your laboratory workflow. -
Page 29: Cleaning
Cleaning Clean the outside of the generator only using warm soapy water and a clean damp cloth. Ensure all excess fluid is thoroughly removed from the cloth prior to use. Cleaning should only be undertaken with the power switched off and the power cord removed from the rear of the generator. -
Page 30: High Duty Indication
If this is the case you should contact Peak Scientific or your service provider. It should be noted that the generator will continue to operate so long as it can maintain pressure during this indication. -
Page 31: Troubleshooting
Troubleshooting Problem Possible Solution • Ensure power cord is plugged into the generator and that the power socket is turned on. The generator will not switch on and the • Check the fuse in the power cord plug. power switch does not illuminate. •... - Page 32 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
- Page 33 Tel: +44 141 812 8100 Fax: +44 141 812 8200 For further information on any of our generator products please contact marketing@peakscientific.com Copyright © Peak Scientific Instruments Ltd 2021 — Genius1022-1023-NM32LA User Manual Rev 12 PN UM-0001 RSID 1483 EN —15/11/2021...
