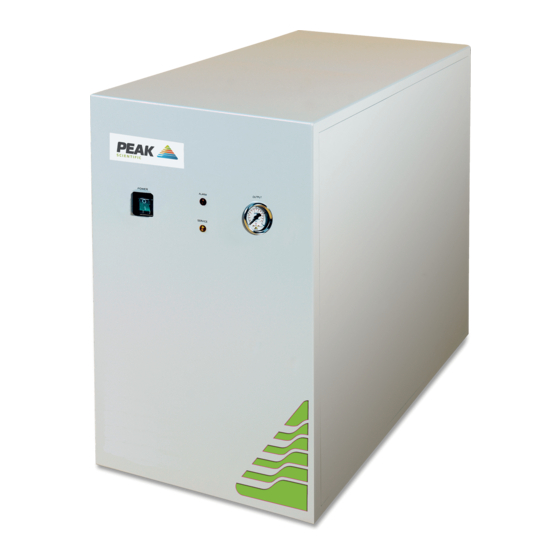

- Page 1 Genius N118LA & N418LA User Manual GeniusN118LA-N418LA User Manual Rev 2 PN UM-NX18LA 18/11/21...
-
Page 2: Table Of Contents
Warranty & Liability Coverage Safety Notices Symbols Safety Notice to Users EU Declaration of Conformity UK Declaration of Conformity WEEE Compliance Statement Technical Specification Genius N118LA & N418LA Unpacking Fittings Kit Contents Installation Generator Environment Generator Overview General Dimensions Rear Connections... -
Page 3: Change History
Users can refer to the contents page to find the relevant information. Please review each of the following sections carefully. Thank you for selecting Peak Scientific to meet your gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or the Peak Partner from which you purchased your generator. -
Page 4: Introduction
Introduction The Genius N118LA & N418LA nitrogen generators are designed specifically for use with LC/MS instruments. This model provides a source of nitrogen gas with other features including: • Confidence - Designed and built around extensive tried and tested processes. -
Page 5: Warranties And Liabilities
Warranties and Liabilities Warranty & Liability Coverage Peak warrants that, subject to the provisions in this statement, purchased Peak generators, whether purchased directly from Peak or indirectly via an approved, certified and trained distributor or partner (referred to hereafter as a “Peak Partner”) will comply in all material respects with any specifications referred to in your customer order confirmation and, subject to installation and operational guidelines being followed as described in applicable product manuals, shall be free from any defects in quality of materials or workmanship for a period of one year from the date of installation, provided this takes... - Page 6 consequential, direct, indirect or otherwise) or in any respect howsoever arising including, but not limited to, liability from accident or negligence (other than pursuant to clause 5) that may be suffered by you or any third party. 9. No person or entity is authorised to change the terms and conditions outlined in this warranty statement in any respect, or to create any additional obligations or liabilities for any party involved.
-
Page 7: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 8: Eu Declaration Of Conformity
EN 61326-1: 2013 Electrical Equipment for Measurement, Control and Laboratory Use – EMC Requirements. (Class A) • Restriction on the use of certain hazardous substances in electronic equipment (RoHS) Directive 2011/65/EU as amended by EU 2015/863. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn... -
Page 9: Uk Declaration Of Conformity
BS61326-1:2013 Electrical Equipment for Measurement , Control and Laboratory Use – EMC Requirements. • The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012 / 3032) as amended. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn... -
Page 10: Weee Compliance Statement
WEEE Compliance Statement The Waste Electrical and Electronic Equipment (WEEE) Regulations SI 2013 No 3113 and or the Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU apply to all electrical and electronic equipment placed on the market in the UK and EU covered by the scope of regulations which can be found in the Government Guidance Notes (PDF) produced by the Department for Business Innovation and skills for the UK and here for Europe. -
Page 11: Technical Specification
Technical Specification Genius N118LA & N418LA Environment Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 25°C (77°F) Maximum Altitude 2000 m Maximum Relative Humidity * NOTE. When taken out of storage the generator should be allowed to acclimatize at room temperature for a... -
Page 12: Unpacking
Check ‘SHOCKWATCH’ and ‘TIP-N-TELL’ labels for signs of rough handling prior to unpacking Any damage should be reported immediately to the carrier and Peak Scientific or the Peak Partner from where the unit was purchased. Follow the unpacking instructions posted on the side of the crate. It will require two people to remove the unit from the shipping crate and to manoeuvre the generator to the desired location. -
Page 13: Fittings Kit Contents
Fittings Kit Contents Supplied in the Fittings Kit are all the fittings required to connect the generator to the application. The contents of the Fittings Kit are as follows: 1. ¼” Teflon Tubing x 3m 2. 6mm PE Tubing x 3m 3. -
Page 14: Installation
Installation Generator Environment The generator is designed for indoor use only. It should be installed adjacent to the application(s) it is supplying. If this is not convenient then the unit can be sited elsewhere, however, consideration should be made of the lengths of pipe runs as pressure drops can result from extended runs of pipe. -
Page 15: Generator Overview
Generator Overview General Dimensions 400 mm / 15.7” 700 mm / 27.5” The generator must always be placed on a flat, level surface. Failure to do so will affect the performance of the generator. WARNING Page 15... -
Page 16: Rear Connections
Rear Connections 6mm Push-Fit Fitting Mains Cable ¼" Compression Fitting Page 16... -
Page 17: Electrical Connection
Electrical Connection Connect the generator to an appropriate 110 or 230 volt single-phase supply, refer to the generator serial plate for input specification and ensure your supply matches the requirements. If the appropriate power cord is not supplied; a new plug, rated to at least 12 amps, can be fitted by a qualified electrician. -
Page 18: Initial Purge Run
Initial Purge Run Before the Generator is connected to the application, the Generator should be operated in isolation (i.e. not connected to the application) for thirty minutes. This is to ensure any impurities present are purged from the system. failure to do this may harm the application. CAUTION Connect the Generator to the mains and switch on. -
Page 19: Tubing Lengths
> 40 metres: Please contact Peak Scientific with the relevant distance andwe will calculate the flow resistance and the tubing size required. A combination of 6/4 and 10/8 tubing may be used to ensure that there is no large diameter tubing within the lab (i.e. -
Page 20: Normal Operation
Unusual Operation If at any time the generator begins to emit excessive noise or vibration, then it should be switched off and you should contact Peak Scientific or the Peak Partner from which the generator has been purchased. Sleep Mode - N418LA Only The generator also includes an optional Sleep Mode function that will operate if the Instrument it is supplying goes into a standby or shutdown. -
Page 21: Service Requirements
Service Requirements Service Schedule Purchase Interval Component Visit 12 Months Genius N*18LA Annual Maintenance Kit www.peakscientific.com/ordering Service Indication The Generators service LED will illuminate when service is due. If the service becomes overdue the LED will begin to flash. High Duty Indication This indicator monitors the running condition of the internal compressor and illuminates when it has been operating continually for a period of 8 hours. -
Page 22: Peak Protected
Peak Protected With Peak Scientific you invest in not only a product but peace of mind. With a network of certified Peak engineers stationed throughout the globe, Peak’s rapid response team are never far away and our commitment is to keep your generator running day in, day out, protecting your laboratory workflow. -
Page 23: Cleaning
Cleaning Clean the outside of the generator only using warm soapy water and a clean damp cloth. Ensure all excess fluid is thoroughly removed from the cloth prior to use. Cleaning should only be undertaken with the power switched off and the power cord removed from the rear of the generator. -
Page 24: Troubleshooting
Troubleshooting Problem Possible Solution • Ensure power cord is plugged into the Generator and that the power socket is turned on. The Generator will not switch on and the • Check the fuse in the power cord plug. power switch does not illuminate. •... - Page 25 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
- Page 26 Peak Scientific has highly trained, fully certified Field Service Engineers located in over 20 countries across every continent around the world. This allows us to provide an industry-leading rapid response service to our customers. With [Peak Protected], your laboratory’s productivity becomes our top priority.
