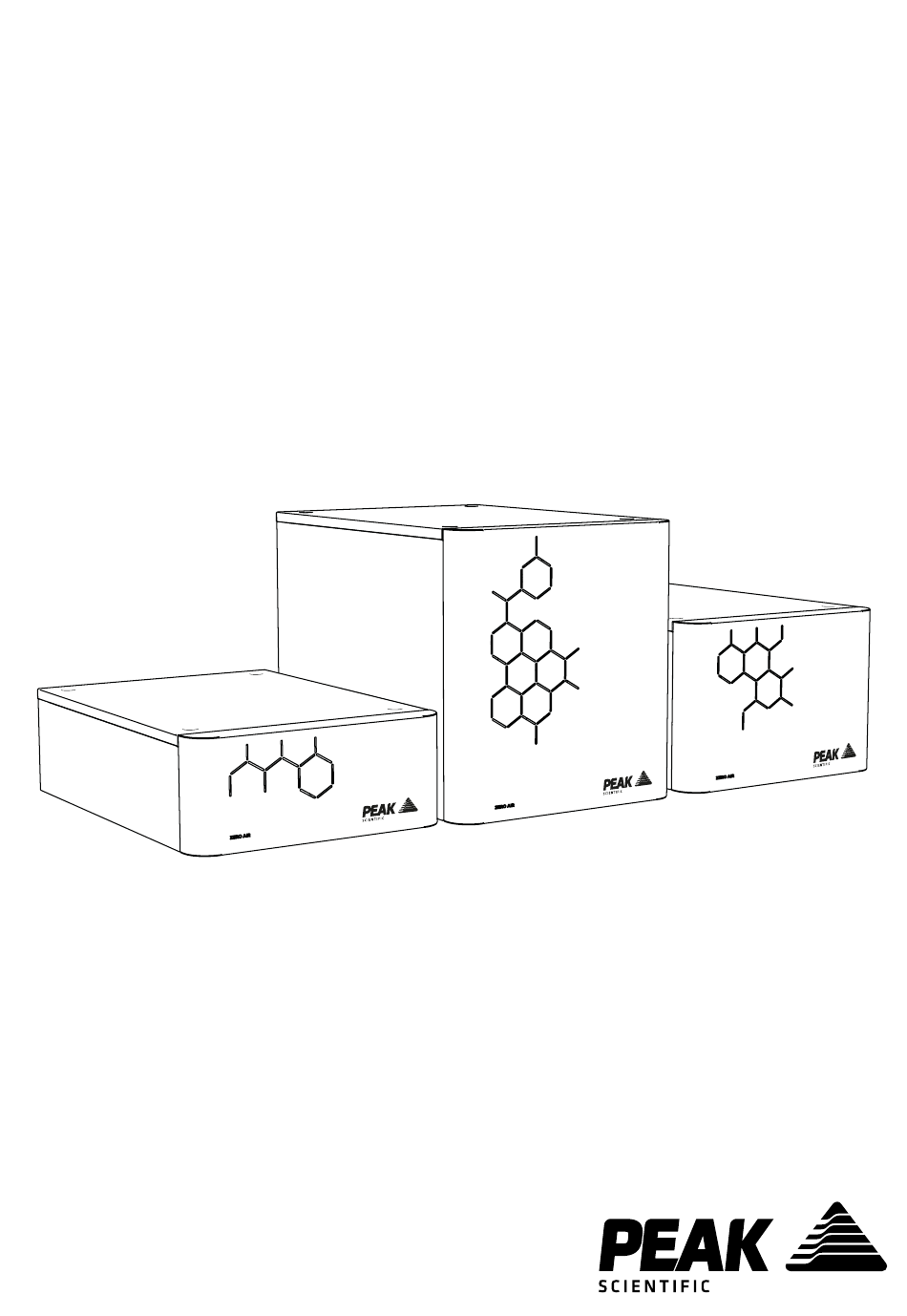

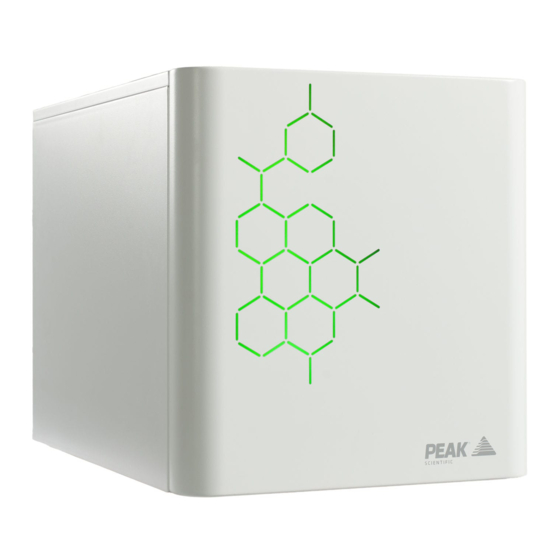

- Page 1 Precision Zero Air Series (All Models) Installation Guide Copyright © Peak Scientific Instruments Ltd 2018 — Precision Zero Air Installation Guide Rev 3 RSID 310 PN IG-PREC-ZA EN —28/02/2018...
-
Page 2: Change History
User Manual for your gas generator. Thank you for selecting Peak Scientific to meet your Gas Generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or Peak Partner from which you purchased your Generator. -
Page 3: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 4: Fittings Kit
Fittings Kit 1/4” Teflon Tubing 00-1266 US Mains Cable C13 6-15 04-1029 US Mains Cable C13 5-15 04-1039 1/4” x 1/4” Compression Fitting 02-4421 UK Mains Cable C13 04-1028 1/4” x 1/8” Compression Fitting 02-1000 EU Mains Cable C13 04-1038 Page 4... - Page 5 WARNING Unpack the generator from the shipping crate and position on a flat surface, in desired area. WARNING the weight of the unit constitutes a two man lift. Safe lifting practices are advised. 02-4421 02-1000 Select the ¼” x ¼” and ¼” x ⅛” Compression Fittings and attach to the AIR IN and ZERO AIR ports respectively.
- Page 6 00-1266 Copper / Stainless Steel tubing only Connect the supplied ¼” Teflon Tubing to the AIR IN port. Connect appropriate ⅛” tubing, greater than 1m in length, to the generators ZERO AIR port. Please note: Only Copper or Stainless Steel tubing should be connected to the ZERO AIR port. CAUTION 04-1028/04-1029/04-1038/04-1039 Select the appropriate mains cable from the fittings kit and plug the IEC 60320/C13...
- Page 7 CAUTION 110V 230V 110VAC 50/60Hz OR 230VAC 50/60Hz Plug the mains cable into the corresponding 110VAC 50/60Hz OR 230VAC 50/60Hz single phase power supply. CAUTION ensure the correct cable has been selected for your electrical supply Press the POWER switch located at the rear of the generator. Page 7...
- Page 8 YELLOW for 60 Minutes The LEDs on the front of the generator should now illuminate YELLOW as the unit starts up. GREEN / BLUE After approximately 60 minutes the LEDs will illuminate GREEN or BLUE (70-**** Part Numbers Only) to indicate that the generator is now ready to use. Page 8...
- Page 9 CONGRATULATIONS Your Peak Scientific gas generator is now fully installed. operational and ready to supply gas on demand to your instrument. Page 9...
-
Page 10: General Notes
General Notes Electrical requirements are 110 or 230VAC nominal +/- 10% depending on chosen model. However, running continuoulsy at voltages outwith this is not recommended. Extended periods at extremes can have a detrimental effect on the operation and life of the Generator. Chlorine-based bleaches/cleaning solutions should not be used on the generator, nor should they be contained within the vicinity of the generator or compressed air supply as these can facilitate internal and external corrosion of the generator. - Page 11 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
- Page 12 Tel: +44 141 812 8100 Fax: +44 141 812 8200 For further information on any of our generator products please contact marketing@peakscientific.com Copyright © Peak Scientific Instruments Ltd 2018 — Precision Zero Air Installation Guide Rev 3 RSID 310 PN IG-PREC-ZA EN —28/02/2018...
