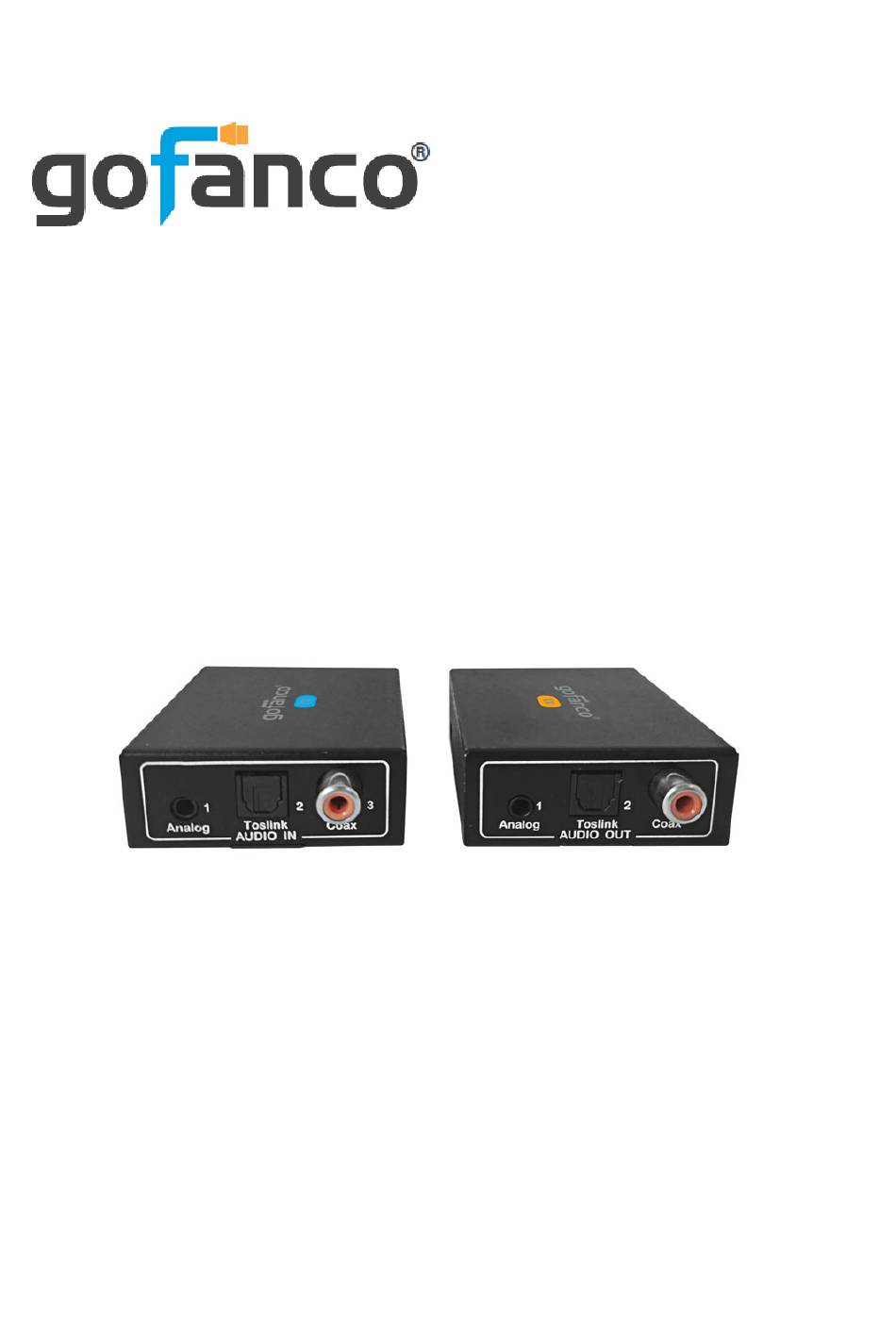

- Page 1 Audio CAT Extender - 500m User's Guide P/N: AudioCATExt500 G4-0113A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the Coaxial, Toslink, and CAT cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports •...
- Page 4 Introduction The Audio CAT Extender - 500m extends digital audio signals up to 500 meters using an economical CAT cable. Features • Extends Toslink/Coaxial up to 500m (1640ft) over a CATx cable, or Analog up to 450m (1476ft) • Audio inputs: Toslink, Coaxial, or Analog •...

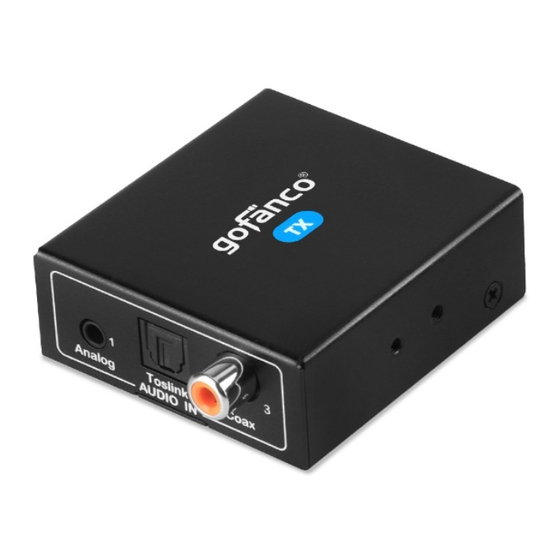

- Page 5 Package Contents • Audio CAT Extender -500m (1 TX & 1 RX) • Power adapter (1pc) • User's Guide Product Layout Figure 1: Transmitter (TX) 1 - Analog audio input 2 - Toslink input 3 - Coaxial input 4 - Power jack (12V/1A) 5 - CAT output...
- Page 6 Product Layout Continued Figure 2: Receiver (RX) 1 - Analog audio output 2 - Toslink output 3 - Coaxial output 4 - Power jack (12V/1A) 5 - CAT input Hardware Installation Power off all devices including your audio source and audio output device. Connect your audio source device to the Transmitter's Analog, Coaxial or Toslink input connector with a Coaxial or Toslink...
- Page 7 Connect a CAT cable between the Transmitter's CAT output and Receiver's CAT input (cable not included). Connect your audio output device (TV, AVR, speakers, etc.) to the Receiver's Analog, Coaxial and/or Toslink output connector (cables not included). Note: Analog audio input: All three audio outputs can be connected and produce sound simultaneously.
- Page 8 Application Analog Audio Source Device Analog audio formats: Stereo/PCM 2.0 Toslink/Coaxial Audio Source Device Toslink/Coaxial audio formats: PCM 2.0, Dolby/ DTS 5.1 Notes: • Only one input connector can be used at a time • Input detection priority: Analog > Coaxial >...
-
Page 9: Specifications
Specifications... - Page 10 Blank Page...
- Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
