Modbus Server – BACnet Client
TM
Intesis
•
Device INBACSAM---O000 (200)
•
Device INBACDAL---0000(246)
The BACnet objects
O01U00_Room_Temperature for Device INBACSAM---O000, and those selected for Device INBACDAL---0000(can
be seen when device is selected in the list at the left part of the window).
Next step is to transfer those objects to MAPS configuration. To do so, it must be first selected if those selected
objects are meant to replace the entire configuration (Replace Devices – default) or added to existing signals
configuration (Add Devices).

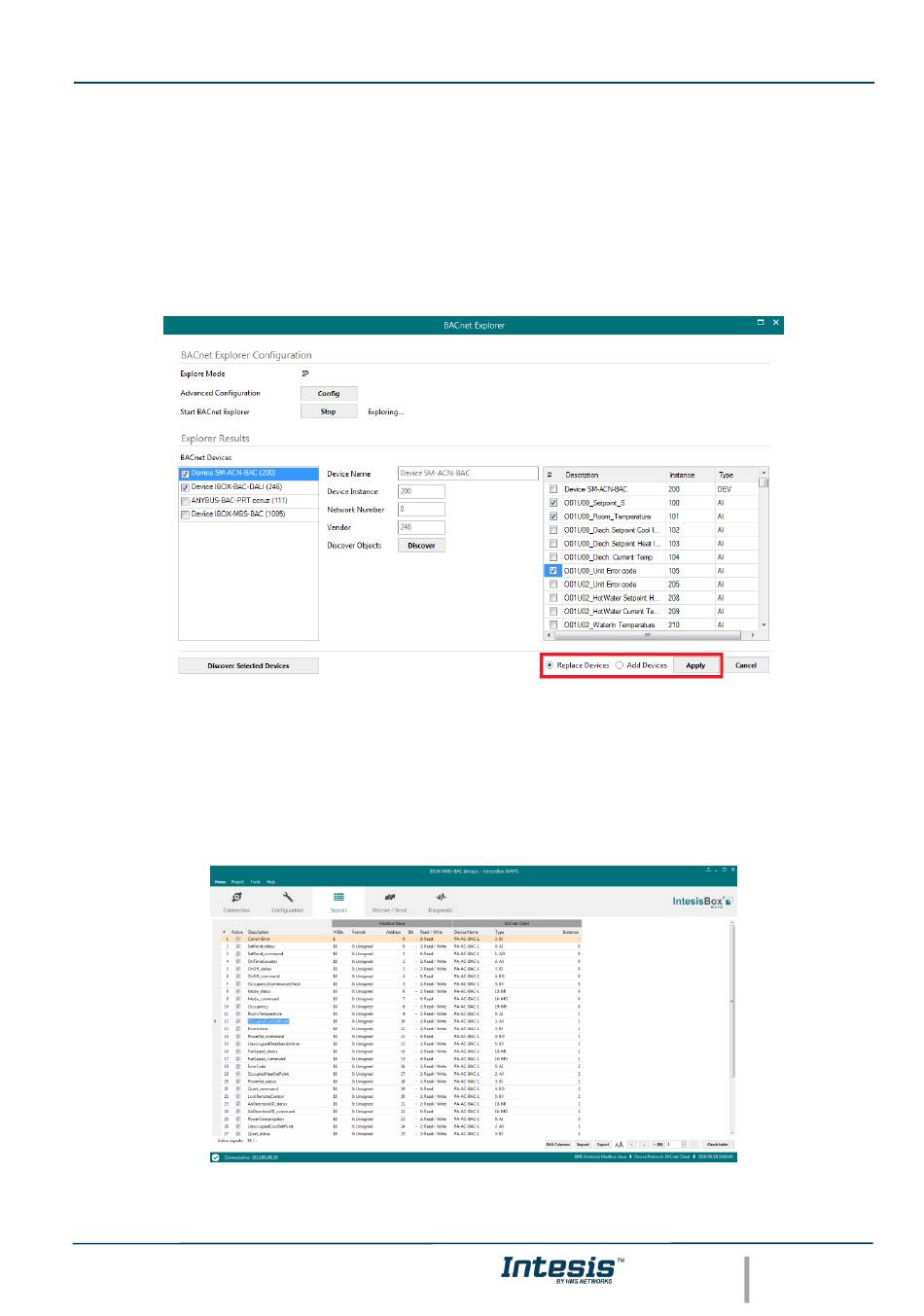

Figure 5.11 Apply button and selection on whether Replace or Add Devices
Apply button must be pressed then to transfer the results to the signals tab of the configuration.

5.2.4 Signals

All available objects, Object Instances, its corresponding Modbus register and other main parmaters are listed in the
signals tab. More information on each parameter and how to configure it can be found in the Intesis MAPS user
manual for Modbus.
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
that will be integrated
Figure 5.12 Intesis MAPS Signals tab
in configuration are
User Manual r1.3 EN
O01U00_Setpoint_S and
