Mounting Screws:
4x M4x16mm
Inox A4 PTFE coated
Torque: 60 cNM

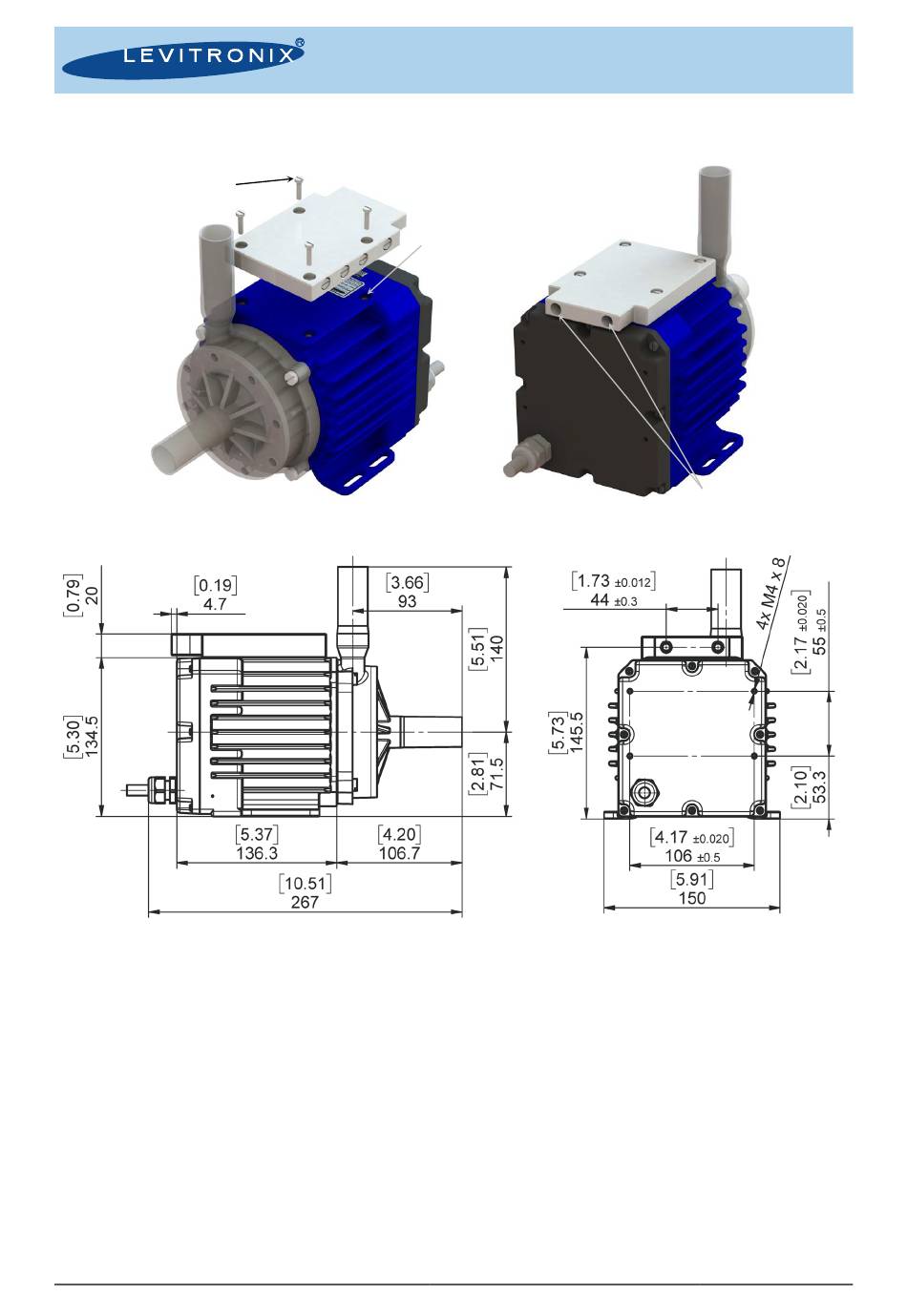

Figure 8: Basic dimensions (in [mm] and [inch]) of water cooling module WCM-i600.1
in context with of driver IPD-600.x
Note 1: Non-tolerated dimensions are for reference only. Note 2: For other configurations refer to according drawings.
PL-4089-00, Rev00, DCO# 21-271
Remove 4 motor screws
before mounting WCM-i600.
User Manual for BPS-i600
www.levitronix.com
NPT 1/8" x 6.9 mm
In-/outlet for water cooling
fittings.
