88 5002 642
Americana Dish Pantry
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

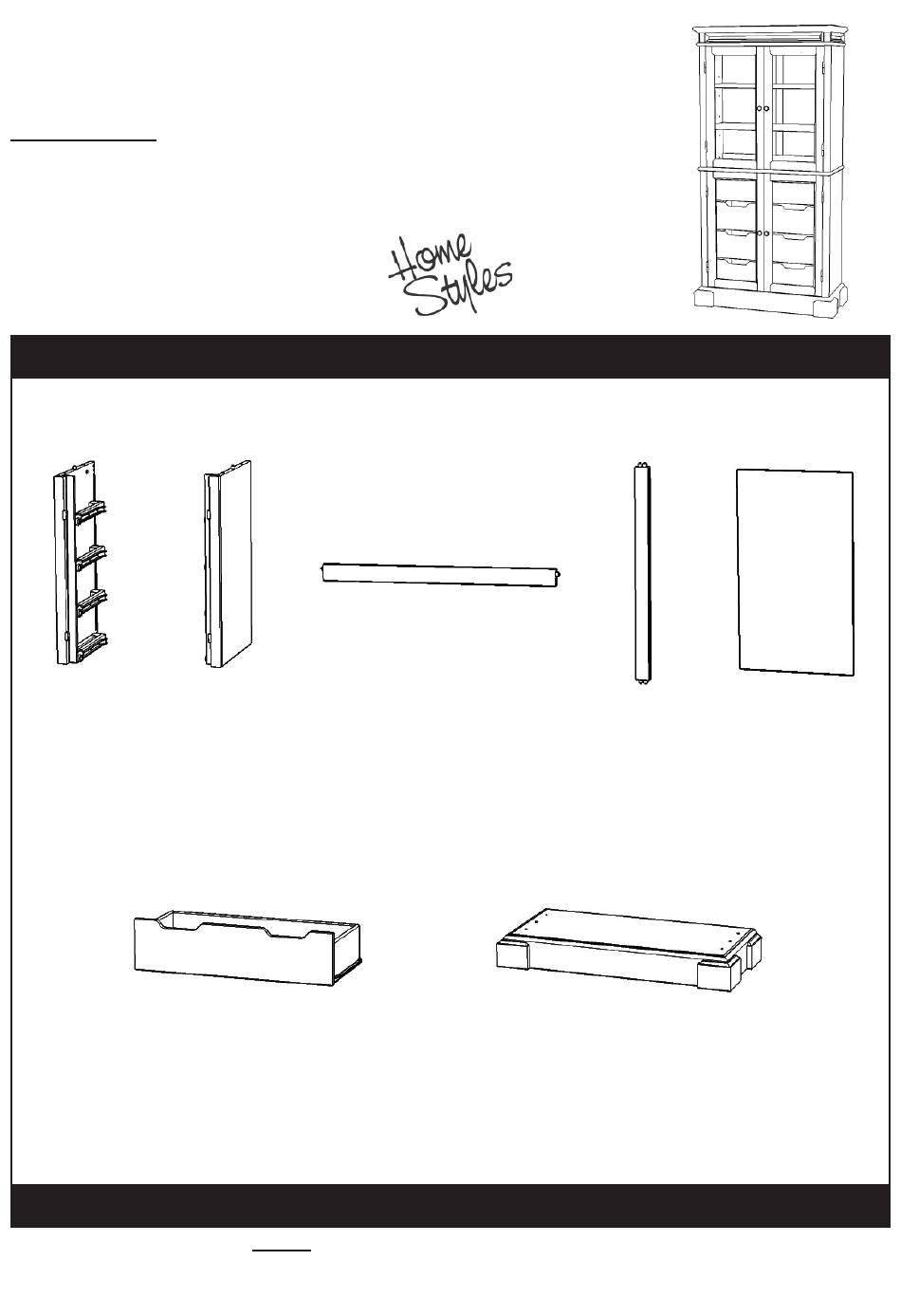

D.
Side Panel
1 Pc.
(Please refer to the last page of these
instructions for drawer assembly steps.)
Also need the following from carton 88 5002 641 :
Tools required for assembly : Phillips screwdriver
E.
Side Panel
1 Pc.
M.
Drawer
4 Pcs.
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
F.
Back Stretcher
2 Pcs.
G.
Back Upright
1 Pc.
N.
Base
1 Pc.
Tools recommended for assembly : Level
H.
Back Panel
2 Pcs.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 88 5002 642
Summary of Contents for Home Styles 88 5002 642
- Page 1 (Please refer to the last page of these instructions for drawer assembly steps.) Also need the following from carton 88 5002 641 : Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 3 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Do not tighten up all the bolts until each part is properly assembled. * Use a soft cloth between these parts and the fl...
- Page 3 Assembly Instructions 4 STEP 2 Attach Back Stretcher (F) to Side Panel (E) with Cam Lock. Attach Back Upright (G) to Back Stretcher (F). Slide Back Panels (H) into place. Attach Back Stretcher (F) to unit with Cam Lock. Attach Side Panel (D) to the unit with Cam Locks. (see Figure 2) Cam Lock Figure 2...
- Page 4 Assembly Instructions 5 STEP 5 Turn the unit from Step 2 to its’ upright position. Attach Middle Panel (I) to the unit from Step 2 with Cam Locks. Attach Knobs to Doors (J) and Doors (K) with Machine Screws. (see Figure 4) Attach Door (J) and Door (K) to the unit by sliding the door lift hinges into the side panel lift hinges.
- Page 5 Assembly Instructions 6 Drawer M STEP 1 Attach M1, M2 and M3 using a Phillips screwdriver and long wood screws (4X), tighten halfway. Attach M1, M2 and M4 using long wood screws Figure 1 (4X), tighten halfway. (see Figure 1) MAKE SURE ROLLER IS ON THE BACK STEP 2...
