88 5008 611
Monarch Buffet
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
For assembly see instructions in carton 88 5008 612
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319

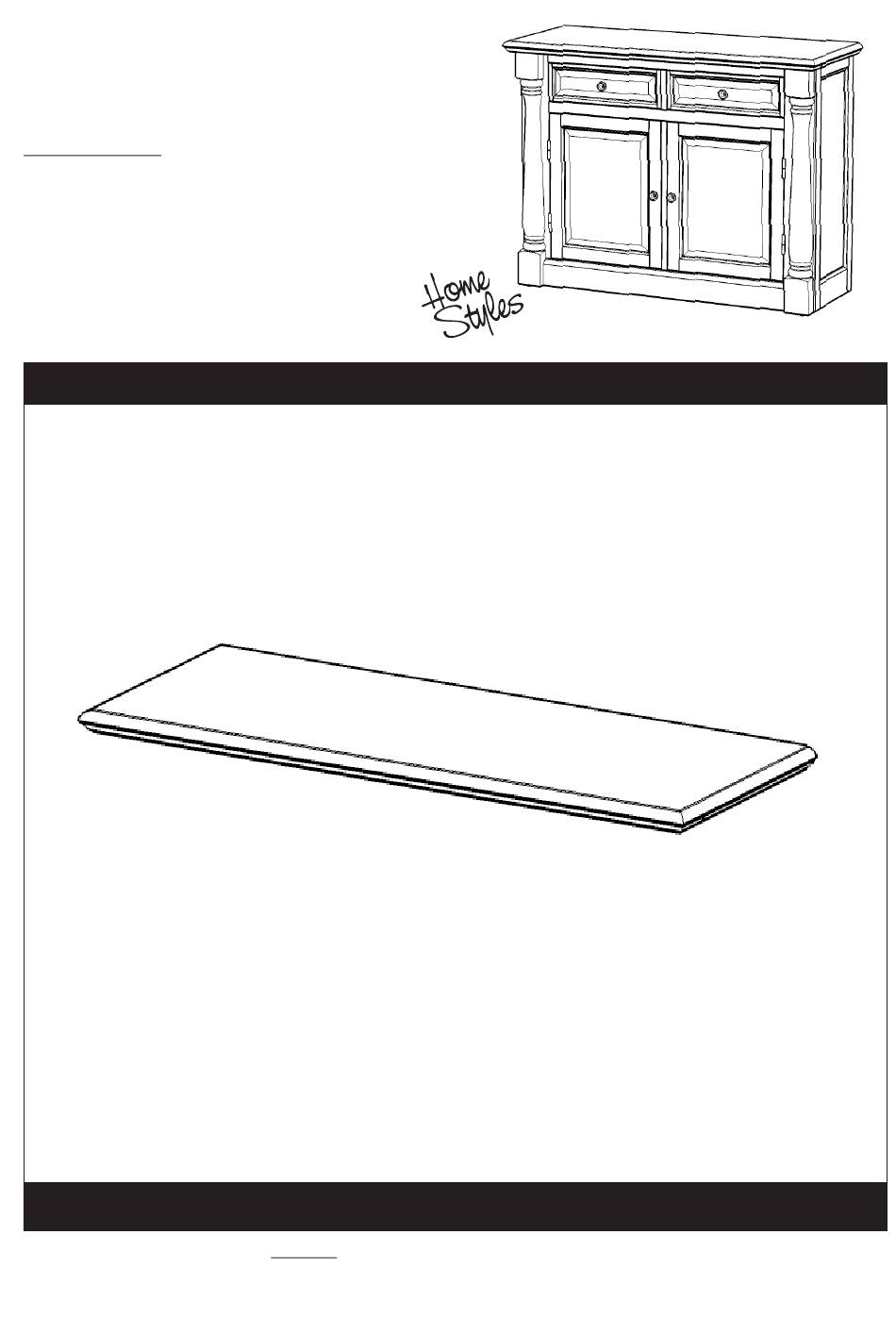

A.
Top
1 pc.
Tools recommended for assembly : Level

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Monarch Buffet 88 5008 611 and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Styles Monarch Buffet 88 5008 611

  • Page 1 Part List 1 pc. For assembly see instructions in carton 88 5008 612 Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 16 pcs. (+1 extra) 8 pcs. (+1 extra) 12 pcs. (+1 extra) 1 pc. Also need Part in carton 88 5008 611 Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 3 Assembly Instructions 2/6 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * After assembly, item must be level to work properly.
  • Page 4 Assembly Instructions 3/6 Cam Lock Flat Washer Wood Screw Head Cap Bolt (long) Figure 3 Figure 4 STEP 3 Attach Bottom (P) to Side Panel (D) with Head Cap Bolts (long). Attach Back Rail (M) to side panel unit using a Cam Lock (see Figure 3). Attach Back Posts (Q) to Back Rail (M) and slide Back Panels (R) into place.
  • Page 5 Assembly Instructions 4/6 Cam Lock STEP 4 Attach Front Posts (B), (C) to Front Rails (J), (K) using Cam Locks. Cam Lock STEP 5 Attach unit from step 4 to the unit using Cam Locks. Attach Front Rail (L) to unit using Cam Locks.
  • Page 6 Assembly Instructions 5/6 Head Cap Bolt STEP 6 (long) Turn the unit to its’ upright position. Place Top (A) onto unit and attach with Head Cap Bolts (long). Insert Adjustable Pins into side panels and middle panel. Place Shelves (I) into position.
  • Page 7 Assembly Instructions 6/6 Drawer (S) STEP 1 Figure 1 Attach S1 to S3 and S4, using Phillips screwdriver MAKE SURE ROLLER IS ON THE BACK long wood screws (4X) tighten halfway. Attach S2 to S3 and S4 using Figure 2 long wood screws (4X)
