Home Styles 88 5001 001 Assembly Instructions Manual

88 5001 001

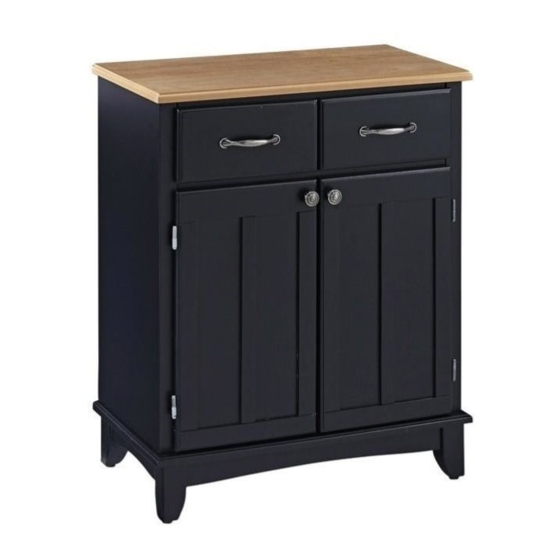

Buffet with Doors
and Drawers (Natural Finish)
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Buffet Unit Part List
A. B.
Side Panel
Side Panel
1 pc. 1 pc.
I.
Back Stretcher
1 pc.
M.
Shelf
1 pc.
Hardware List
Hex Wrench Head Cap Bolt (long)
1 pc. 4 pcs. (+1 extra)
Head Cap Bolt
4 pcs. (+1 extra)
Tools Required For Assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
C.
Front Piece
1 pc.
D.
Front Piece
1 pc.
J.
Back Panel
2 pcs.
N.
Door
1 pc.
Cam Lock
10 pcs.(+1 extra)
Cam Lock Screw
Cross Dowel
10 pcs.(+1 extra)
4 pcs.(+1 extra)
servicedesk@homestyles-furniture.com
Casual Attire For Today's Home
E.
Front Piece
1 pc.
F.
Back Stretcher
1 pc.
K.
Base
1 pc.
O.
Door
1 pc.
(Knock-Down Construction, please refer to the last page of
these instructions for steps to complete assembling drawers)
Wood Screw (short)
for Drawer Base Part
8 pcs. (+1 extra)
Wood Screw (long)
for Drawer Side Part
16 pcs. (+1 extra)
L.
Leg
2 pcs.
Wood Screw
Machine Screw
for Back Panel
6 pcs.
8 pcs. (1 extra)
Adjustable Pin
4 pcs. (+2 extra)
G.
Divider
1 pc.
H.
Back Piece
1 pc.
P.
Drawer
2 pcs.
Door
Pull Handle
2 pcs.
Drawer
Pull Handle
2 pcs.
