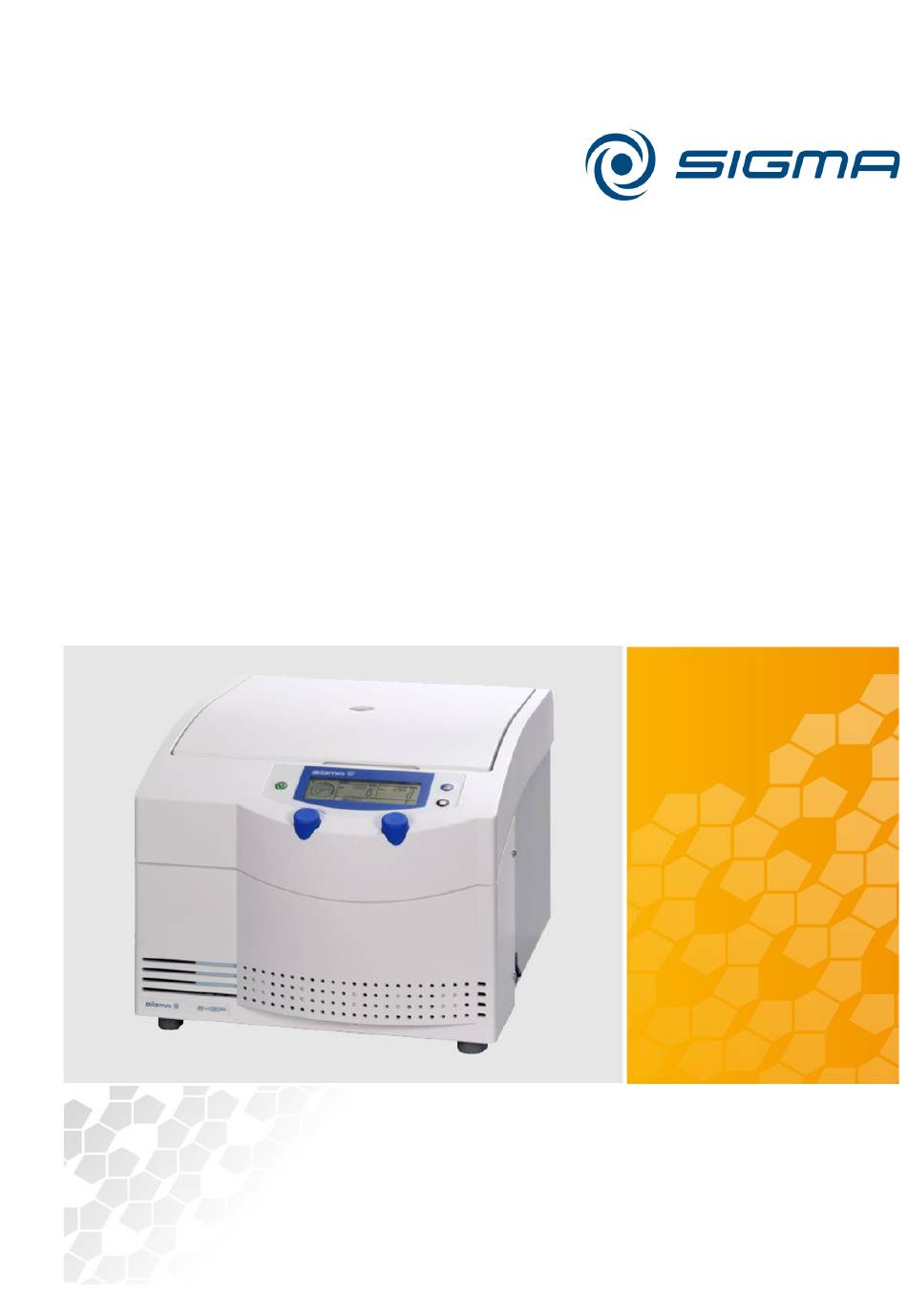

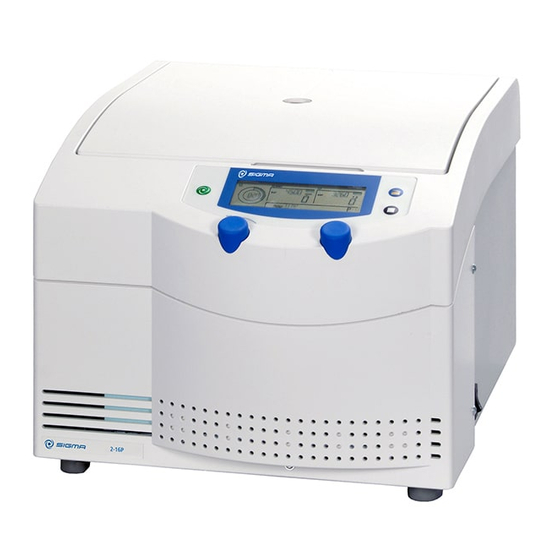

- Page 1 Translation from the original operating manual 04/2007 Rev. 2.23 of 28/04/2022 Sigma 2-16P; ; part no. 0700602 Sigma 2-16P from serial no. 120756 Laboratory Centrifuge Operating Manual Please retain for later use!
- Page 2 Laboratory Centrifuge Sigma 2-16P Version 04/2007, Rev. 2.23 of 28/04/2022 • sb 2 / 76 Translation from the original operating manual, part no. 0700602...
- Page 3 Laboratory Centrifuge Sigma 2-16P © Copyright by Sigma Laborzentrifugen GmbH An der Unteren Söse 50 37520 Osterode am Harz Germany Tel.: +49 (0) 5522 / 5007-0 Fax: +49 (0) 5522 / 5007-12 Web: www.sigma-zentrifugen.de E-mail: info@sigma-zentrifugen.de Version 04/2007, Rev. 2.23 of 28/04/2022 • sb 3 / 76 Translation from the original operating manual, part no.
- Page 4 Laboratory Centrifuge Sigma 2-16P Version 04/2007, Rev. 2.23 of 28/04/2022 • sb 4 / 76 Translation from the original operating manual, part no. 0700602...
-
Page 5: Table Of Contents
Laboratory Centrifuge Sigma 2-16P Table of contents General information ......................9 Importance of the operating manual .................. 9 Intended use ........................9 Warranty and liability......................9 Copyright ........................10 Standards and regulations ....................10 Scope of supply ......................10 Layout and mode of operation ..................11 Layout of the centrifuge .................... - Page 6 Laboratory Centrifuge Sigma 2-16P Table of contents Storage and transport ....................... 26 Dimensions and weight ....................26 Storage conditions ......................26 Notes on transport ......................26 Packaging ........................27 Transport safety device ....................27 Set-up and connection ...................... 28 Installation site ........................ 28 Power supply ........................
- Page 7 Laboratory Centrifuge Sigma 2-16P Table of contents Malfunctions and error correction ..................44 General malfunctions ...................... 44 7.1.1 Emergency lid release ....................45 Table of error codes ......................46 Service contact ....................... 47 Maintenance and service ....................48 Maintenance ........................48 8.1.1...
- Page 8 Laboratory Centrifuge Sigma 2-16P Table of contents Version 04/2007, Rev. 2.23 of 28/04/2022 • sb 8 / 76 Translation from the original operating manual, part no. 0700602...
-
Page 9: General Information
Leerzeil e @ 0 \mod_1202116244500_0.docx @ 114 @ @ 1 Pos : 4 /100 Sigma/100 BA Z entrifug en Sigma ( Standardm odule) /010 Allgem eine Inform ationen/010- 0020 Bestimm ungsgem äß e Verw endung Sigma ------------------------------------------- @ 26\m od_1405318951312_68.docx @ 191709 @ 2 @ 1 →... -
Page 10: Copyright
Laboratory Centrifuge Sigma 2-16P 1 General information Pos : 8 /100 Sigma/100 BA Z entrifug en Sigma ( Standardm odule) /010 Allgem eine Inform ationen/010- 0040 Urheberrec ht Sigma ----------------------------------------------------------------- @ 26\mod_1405318956858_68.doc x @ 191751 @ 2 @ 1 →... -
Page 11: Layout And Mode Of Operation
→ Layout of the centrifuge Pos : 17 /100 Sigma/110 BA Zentrifugen Sigma (Pr ojekte) /2- 16P/020 Aufbau und Wirk ungsw eise/020-0010-0010 Funkti ons- und Bedienelem ente 2- 16P @ 29\m od_1405321495781_68.docx @ 196889 @ 3 @ 1 2.1.1 Functional and operating elements User interface (see chapter 6.3.1 - "User... -
Page 12: Name Plate
Leerz eile @ 0\m od_1202116244500_0.doc x @ 114 @ @ 1 Pos : 19 /100 Sigma/110 BA Zentrifugen Sigma (Pr ojekte) /2- 16P/020 Aufbau und Wirk ungsw eise/020-0010-0020 Typensc hild 2-16P @ 29\m od_1405321496634_68.docx @ 196903 @ 3 @ 1 2.1.2... -
Page 13: Mode Of Operation
Pos : 21 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/020 Aufbau und Wirk ungsw eise/020-0020 Wirkungsweis e---------------------------------------------------------- @ 26\mod_1405318984194_68.docx @ 191807 @ 2 @ 1 → Mode of operation Pos : 22 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/020 Aufbau und Wirk ungsw eise/020-0020-0010 Prinzi p der Z entrifugati on @ 26\m od_1405318985448_68.docx @ 191821 @ 3 @ 1 → 2.2.1... -
Page 14: Speed, Radius, And Relative Centrifugal Force
2 Layout and mode of operation Pos : 26 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/ 020 Aufbau und Wirk ungsw eise/020-0020-0020- 0010 Dr ehzahl, R adius , R elativ e Zentrifugalbesc hl eunigung @ 26\mod_1405318988082_68.docx @ 191849 @ 4 @ 1 →... -
Page 15: Safety
Pos : 31 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/030 Sic her heit/030 Sic her hei t================================= ====== @ 26\m od_1405319007254_68.docx @ 191877 @ 1 @ 1 → Safety Pos : 32 /100 Sigma/110 BA Zentrifugen Sigma (Pr ojekte) /2- 16P/030 Sic her heit/030-0010 Besc hilderung des Geräts 2-16P @ 71\m od_1587720810091_68.docx @ 754086 @ 2 @ 1 → Marking of the unit... -
Page 16: Explanation Of The Symbols And Notes
Laboratory Centrifuge Sigma 2-16P 3 Safety Pos : 34 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/030 Sic her heit/030-0020 Symbol- und Hi nweis erklär ung en @ 26\mod_1405319013955_68.docx @ 191947 @ 2 @ 1 → Explanation of the symbols and notes... -
Page 17: Responsibility Of The Operator
Laboratory Centrifuge Sigma 2-16P 3 Safety Pos : 36 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/030 Sic her heit/030-0030 Ver antw ortung des Betrei bers @ 26\mod_1405319015364_68.docx @ 191961 @ 2 @ 1 → Responsibility of the operator The operator is responsible for authorising only qualified personnel to work on the centrifuge (see chapter 3.4 - "Requirements concerning the... -
Page 18: Requirements Concerning The Personnel
Laboratory Centrifuge Sigma 2-16P 3 Safety Pos : 38 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/ 030 Sic her heit/030-0040 Pers onalanforderungen @ 26\mod_1405319017634_68.doc x @ 191989 @ 2 @ 1 → Requirements concerning the personnel Risk of injury if the personnel are not sufficiently qualified... -
Page 19: Informal Safety Instructions
Laboratory Centrifuge Sigma 2-16P 3 Safety Pos : 40 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/030 Sic her heit/030-0050 Informelle Sic herheits hinw eise @ 26\m od_1405319019966_68.docx @ 192017 @ 2 @ 1 → Informal safety instructions • This operating manual is a part of the product. -
Page 20: Safety Instructions
Leerz eile @ 0\m od_1202116244500_0.doc x @ 114 @ @ 1 Pos : 45 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/030 Sic her heit/030-0060-0020 M ec hanisc he Sic her heit (auß er 1-16/1-16K/1-7) @ 26\mod_1405319024314_68.docx @ 192059 @ 3 @ 1 →... -
Page 21: Fire Prevention
Leerz eile @ 0\m od_1202116244500_0.doc x @ 114 @ @ 1 Pos : 49 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/030 Sic her heit/030-0060-0040 C hemische und bi ologisc he Sic her hei t @ 26\m od_1405319028141_68.docx @ 192101 @ 3 @ 1 →... -
Page 22: Safety Instructions For Centrifugation
Laboratory Centrifuge Sigma 2-16P 3 Safety Pos : 51 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/030 Sic her heit/030-0060-0050 Sicherheits hi nweis e z ur Z entrifug ation @ 26\mod_1405319029632_68.doc x @ 192115 @ 3 @ 1 → 3.6.5 Safety instructions for centrifugation For safe operation, observe the following before starting the centrifuge: •... -
Page 23: Service Life
Laboratory Centrifuge Sigma 2-16P 3 Safety Pos : 55 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/030 Sic her heit/030-0060-0063 Lebensdauer M asc hRL - Übersc hrift neutral @ 83\mod_1622527518082_68.docx @ 878477 @ 3 @ 1 3.6.7 Service life Pos : 56 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/030 Sic her heit/030-0060-0064 Lebensdauer M asc hRL - T ext @ 26\mod_1405319032612_68.doc x @ 192143 @ @ 1 The rotors and accessories have a limited service life. -
Page 24: Safety Devices
Leerz eile @ 0\m od_1202116244500_0. doc x @ 114 @ @ 1 Pos : 67 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/030 Sic her heit/030-0070-0051 U nw uchtüberwac hung Spi ncontr ol L+Easy+U nivers al @ 27\m od_1405319047031_68.docx @ 192283 @ 3 @ 1 →... -
Page 25: Measures In The Event Of Hazards And Accidents
Laboratory Centrifuge Sigma 2-16P 3 Safety Pos : 69 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/030 Sic her heit/030-0080 Ver halten bei Gefahren und Unfäll en @ 27\mod_1405319051188_68.docx @ 192325 @ 2 @ 1 → Measures in the event of hazards and accidents •... -
Page 26: Storage And Transport
→ Storage and transport Pos : 75 /100 Sigma/110 BA Zentrifugen Sigma (Pr ojekte) /2- 16P/040 Lagerung und Tr ans port/040-0010 Abm ess ungen und Gewic ht 2- 16P @ 29\m od_1405321505934_68.docx @ 196917 @ 2 @ 1 → Dimensions and weight... -
Page 27: Packaging
Leerz eile @ 0\m od_1202116244500_0.doc x @ 114 @ @ 1 Pos : 83 /100 Sigma/110 BA Zentrifugen Sigma (Pr ojekte) /2- 16P/040 Lagerung und Tr ans port/040-0050 Tr ansportsic her ung 2-16P - Ü bersc hrift @ 29\m od_1405321508222_68.docx @ 196959 @ 2 @ 1 Transport safety device Pos : 84 /100 Sigma/110 BA Zentrifugen Sigma (Pr ojekte) /2- 16P/040 Lagerung und Tr ans port/040-0051 Tr ansportsic her ung 2-16P - T ext @ 36\mod_1434605323998_68.docx @ 263872 @ @ 1... -
Page 28: Set-Up And Connection
Pos : 90 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/050 Aufstellung und Ans chl uss/050- 0020 Energiev ers orgung------------------------------------------------------ @ 27\mod_1405319175630_68.docx @ 192409 @ 2 @ 1 → Power supply Pos : 91 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/050 Aufstellung und Ans chl uss/050- 0020-0010 Ansc hl uss art (Kaltger ätesteck er) @ 32\m od_1417599670621_68.docx @ 222346 @ 3 @ 1 5.2.1 Type of connection... -
Page 29: Customer-Provided Fuses
Laboratory Centrifuge Sigma 2-16P 5 Set-up and connection Pos : 93 /100 Sigma/100 BA Zentrifugen Sigma (Standar dmodule)/050 Aufstellung und Ans chl uss/050- 0020-0020 Sic herungen baus eits ( außer 3-30KS, 8KS, 8KBS) @ 7\m od_1306312302397_68.docx @ 43513 @ 3 @ 1 →... -
Page 30: Using The Centrifuge
Pos : 101 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/062 Betrieb_Spi nc ontr ol Eas y+Univ ersal/062- 0020-0010 Öffnen und Sc hließ en des Dec kels - 2 Sc hlösser @ 27\mod_1405320419421_68.docx @ 194061 @ 3 @ 1... -
Page 31: Installation Of Rotors And Accessories
Pos : 103 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/062 Betrieb_Spi nc ontr ol Eas y+Univ ersal/062- 0020-0020 Eins etz en v on Rotor en und Z ubehör -------------------------------- @ 27\mod_1405320420206_68.doc x @ 194075 @ 3 @ 1... -
Page 32: Installation Of An Angle Rotor With A Hermetic Lid
6 Using the centrifuge Pos : 106 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/060 Betrieb_Spi nc ontr ol L+S/060- 0020-0020-0021 Eins etzen eines Wi nk elrotors mit H ermetikdeck el 3 Nm @ 29 \mod_1405321531516_68.docx @ 197015 @ 4 @ 1 →... -
Page 33: Installation Of A Microhaematocrit Rotor
Laboratory Centrifuge Sigma 2-16P 6 Using the centrifuge Pos : 108 /100 Sigma/110 BA Z entrifugen Sigma (Proj ekte)/2-16P/062 Betri eb/062-0020-0020- 0021 Ei nsetzen ei nes Mikrohäm atokrittellers 2- 16P @ 29\m od_1405321532319_68.docx @ 197029 @ 4 @ 1 6.2.2.3 Installation of a microhaematocrit rotor •... -
Page 34: Installation Of Accessories
Pos : 110 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/060 Betrieb_Spi nc ontr ol L+S/060- 0020-0020-0030 Eins etzen v on Z ubehör 4plätzig 2-16P, 2-16KL, 3- 16L, 3- 16KL, 3-18KS @ 63\mod_1554803016350_68.doc... -
Page 35: Adapters
Leerz eile @ 0\mod_1202116244500_0.docx @ 114 @ @ 1 Pos : 114 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/062 Betrieb_Spi nc ontr ol Eas y+Univ ersal/062- 0020-0020-0050 Gefäß e ( nur 2- 16P) @ 28\m od_1405320422786_68.docx @ 194117 @ 4 @ 1 →... -
Page 36: Control System "Spincontrol Universal
6 Using the centrifuge Pos : 116 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/062 Betrieb_Spi nc ontr ol Eas y+Univ ersal/Spinc ontrol Univ ersal /062- 0030 Spincontr ol Univ ers al Steuerung---------------------------------------------- @ 28\mod_1405320525161_68.doc x @ 194411 @ 2 @ 1 →... -
Page 37: Manual Mode
Pos : 124 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/062 Betrieb_Spi nc ontr ol Eas y+Univ ersal/Spinc ontrol Univ ersal /062- 0030-0020-0030 U nterbr ec hen eines Brems vorgangs @ 28\m od_1405320529412_68.docx @ 194481 @ 4 @ 1... - Page 38 Laboratory Centrifuge Sigma 2-16P 6 Using the centrifuge Continuous run During the continuous run, the runtime of the centrifuge is unlimited and must be stopped manually. The centrifuge accelerates during the continuous run until the set speed is reached. •...
-
Page 39: Speed
Pos : 130 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/062 Betrieb_Spi nc ontr ol Eas y+ Univ ersal/Spinc ontrol Univ ersal /062- 0030-0020-0060 Dr ehzahl - ohne T emp @ 28\m od_1405320532488_68.docx @ 194523 @ 4 @ 1... -
Page 40: Rotor Selection
Pos : 134 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/062 Betrieb_Spi nc ontr ol Eas y+Univ ersal/Spinc ontrol Univ ersal /062- 0030-0020-0080 R otorausw ahl - ohne Tem p @ 28\mod_1405320534301_68. docx @ 194551 @ 4 @ 1... -
Page 41: Automatic Lid Opening Function ("Auto-Lid-Open")
Pos : 140 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/062 Betrieb_Spi nc ontr ol Eas y+Univ ersal/Spinc ontrol Univ ersal /062- 0030-0020-0110 Ak ustisc hes Signal - ohne Tem p @ 28\mod_1405320536975_68.docx @ 194593 @ 4 @ 1... -
Page 42: Programs
Pos : 146 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/062 Betrieb_Spi nc ontr ol Eas y+Univ ersal/Spinc ontrol Univ ersal /062- 0030-0030-0010 Aktuelle Einstell ung en speic her n @ 28\m od_1405320539762_68.docx @ 194635 @ 4 @ 1... -
Page 43: Switching The Centrifuge Off
Laboratory Centrifuge Sigma 2-16P 6 Using the centrifuge Pos : 150 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/062 Betrieb_Spi nc ontr ol Eas y+Univ ersal/062- 0040 Aussc halten @ 28\mod_1405320423571_68.doc x @ 194131 @ 2 @ 1 →... -
Page 44: Malfunctions And Error Correction
Malfunctions and error correction Pos : 154 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/070 Störungen und F ehl ersuche/070-0016 Allgemei ne Stör ung en_Spi ncontr ol Eas y+Univ ersal @ 28\mod_1405320582167_68.docx @ 194747 @ 2 @ 1 →... -
Page 45: Emergency Lid Release
Laboratory Centrifuge Sigma 2-16P 7 Malfunctions and error correction Pos : 156 /100 Sigma/110 BA Z entrifugen Sigma (Proj ekte)/2-16P/070 Stör ungen und F ehl ersuche/070-0010- 0010 N otentriegel ung 2-16P @ 29\m od_1405321542103_68.docx @ 197043 @ 3 @ 1 7.1.1... -
Page 46: Table Of Error Codes
Laboratory Centrifuge Sigma 2-16P 7 Malfunctions and error correction Pos : 158 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/070 Störungen und F ehl ersuche/070-0020 T abell e der F ehlerm eldung en @ 28\mod_1405320582996_68.docx @ 194761 @ 2 @ 1 →... -
Page 47: Service Contact
Laboratory Centrifuge Sigma 2-16P 7 Malfunctions and error correction Pos : 160 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/070 Störungen und F ehl ersuche/070-0030 Kontak t im Servic efall @ 28\m od_1405320584361_68.docx @ 194775 @ 2 @ 1 →... -
Page 48: Maintenance And Service
Laboratory Centrifuge Sigma 2-16P 8 Maintenance and service Pos : 163 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/080 War tung und Instandhaltung/080 Wartung und Instandhaltung ========================= @ 28\m od_1405320612731_68.docx @ 194789 @ 1 @ 1 → Maintenance and service The centrifuge, rotor, and accessories are subject to high mechanical stress. -
Page 49: Accessories
Laboratory Centrifuge Sigma 2-16P 8 Maintenance and service Pos : 168 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/080 War tung und Instandhaltung/080-0010- 0020 Zubehör (auß er 8K) @ 28\m od_1405320618247_68.docx @ 194845 @ 3 @ 1 → 8.1.2... -
Page 50: Rotors, Buckets And Carriers
8 Maintenance and service Pos : 172 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/080 War tung und Instandhaltung/080-0010- 0030 Rotor, Bec her und Vi elfac htr äger ( auß er Basic) @ 28\mod_1405320621063_68.docx @ 194873 @ 3 @ 1 →... -
Page 51: Load-Bearing Bolts
8 Maintenance and service Pos : 176 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/080 War tung und Instandhaltung/080-0010- 0040 Tragbolz en (nur 2- 6, 2-6E, 2- 7, 2-16P, 2-16KL) @ 44\m od_1467889556212_68.docx @ 436524 @ 3 @ 1 →... -
Page 52: Glass Breakage
Leerz eile @ 0\mod_1202116244500_0.docx @ 114 @ @ 1 Pos : 180 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/080 War tung und Instandhaltung/080-0020 Sterilisati on und Desinfek tion v on Rotork ammer und Zubehör @ 28\m od_1405320626090_68.docx @ 194929 @ 2 @ 1 →... -
Page 53: 8.2.1 Autoclaving
Laboratory Centrifuge Sigma 2-16P 8 Maintenance and service Pos : 182 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/080 War tung und Instandhaltung/080-0020- 0010 Autoklavi eren @ 28\mod_1405320627440_68.doc x @ 194943 @ 3 @ 1 → 8.2.1 Autoclaving The service life of the accessories essentially depends on the frequency of autoclaving and use. -
Page 54: Service
Laboratory Centrifuge Sigma 2-16P 8 Maintenance and service Pos : 184 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/080 War tung und Instandhaltung/080-0030 Ins tandhaltungs arbeiten @ 28\mod_1405320628810_68.docx @ 194957 @ 2 @ 1 → Service In the event of service work that requires the removal of the panels, there is a risk of electric shock or mechanical injury. -
Page 55: Return Of Defective Centrifuges Or Parts
Laboratory Centrifuge Sigma 2-16P 8 Maintenance and service Pos : 186 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/080 War tung und Instandhaltung/080-0040 R ücks endung defekter T eile @ 28\mod_1405320630226_68.doc x @ 194971 @ 2 @ 1 →... - Page 56 NOTE The forms can be downloaded online from www.sigma-zentrifugen.de → [Service] → [Overhaul and repair]. Pos : 187 /010 Univ ers almodul e/ Abs chnittswec hs el @ 0 \mod_1202124514062_0.docx @ 418 @ @ 1 Pos : 188 /010 Univ ers almodul e/ Seitenwechs el @ 0\mod_1202116244312_0.docx @ 105 @ @ 1...
-
Page 57: Disposal
Pos : 189 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/090 Entsorgung/090 Ents orgung================================ ===== @ 28\m od_1405320658842_68.docx @ 194985 @ 1 @ 1 → Disposal Pos : 190 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/090 Entsorgung/090-0010 Entsorgung der Z entrifuge---------------------------------------------- @ 28\m od_1405320660029_68.docx @ 194999 @ 2 @ 1 → Disposal of the centrifuge In accordance with the directive 2012/19/EU, SIGMA centrifuges are marked with the symbol shown to the left. -
Page 58: 10 Technical Data
10 Technical data Pos : 195 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/100 T ec hnisc he D aten/100 T ec hni sche D aten - Ü bersc hrift ============================= @ 7\mod_1306745782782_68.doc x @ 43932 @ 1 @ 1 →... -
Page 59: Technical Documentation
Laboratory Centrifuge Sigma 2-16P 10 Technical data Pos : 201 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/100 T ec hnisc he D aten/100- 0020 Technisc he Dok um entation @ 28\m od_1405320681369_68.docx @ 195055 @ 2 @ 1 →... -
Page 60: 11 Appendix
Leerz eile @ 0\mod_1202116244500_0.docx @ 114 @ @ 1 Pos : 208 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/110 Anhang/110-0010- 0023 R adi en der R otoren (WR+AR+Mikrohämatokritteller) @ 28\mod_1405320703631_68.doc x @ 195125 @ 3 @ 1 11.1.1 Rotor radii The information in the accessories table concerning the radius refers to the values of the respective rotor as shown below. - Page 61 Laboratory Centrifuge Sigma 2-16P 11 Appendix Fig. 25: Microhaematocrit rotor Pos : 209 /010 Univ ers almodul e/ Seitenwechs el @ 0\mod_1202116244312_0.docx @ 105 @ @ 1 Version 04/2007, Rev. 2.23 of 28/04/2022 • sb 61 / 76 Translation from the original operating manual, part no. 0700602...
-
Page 62: Speed-Gravitational-Field-Diagram
Laboratory Centrifuge Sigma 2-16P 11 Appendix Pos : 210 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/110 Anhang/110-0020 Dr ehz ahl-Sc hwer efeld-Diagr amm @ 28\m od_1405320705642_68.docx @ 195153 @ 2 @ 1 → 11.2 Speed-gravitational-field-diagram Fig. 26: Speed-gravitational-field-diagram Pos : 211 /010 Univ ers almodul e/ Seitenwechs el @ 0\mod_1202116244312_0.docx @ 105 @ @ 1... -
Page 63: Table Of The Service Life Of Rotors And Accessories
Laboratory Centrifuge Sigma 2-16P 11 Appendix Pos : 212 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/110 Anhang/110-0040 T abell e: Lebensdauer v on R otoren und Z ubehör @ 28\mod_1405320709911_68.docx @ 195195 @ 2 @ 1 → 11.3 Table of the service life of rotors and accessories •... - Page 64 Laboratory Centrifuge Sigma 2-16P 11 Appendix Pos : 214 /100 Sigma/100 BA Z entrifugen Sigma (Standardm odul e)/110 Anhang/110-0050 Beständigkeits tabelle @ 28\mod_1405320711439_68.doc x @ 195209 @ 2 @ 1 → Version 04/2007, Rev. 2.23 of 28/04/2022 • sb 64 / 76...
-
Page 65: Resistance Data
Laboratory Centrifuge Sigma 2-16P 11 Appendix 11.4 Resistance data The data refer to resistance at 20°C. NOTE - no data 1 resistant 2 practically resistant 3 partially resistant 4 not resistant Medium Formula Acetaldehyde Acetamide saturated Acetone Acrylonitrile Allyl alcohol... - Page 66 Laboratory Centrifuge Sigma 2-16P 11 Appendix - no data 1 resistant 2 practically resistant 3 partially resistant 4 not resistant Medium Formula Chromic acid Chromic potassium KCr(SO saturated sulphate Citric acid Citric acid Copper sulphate CuSO x 5H Cyclohexanol Decane Diaminoethane —...
- Page 67 Laboratory Centrifuge Sigma 2-16P 11 Appendix - no data 1 resistant 2 practically resistant 3 partially resistant 4 not resistant Medium Formula Isopropyl alcohol Lactic acid Magnesium chloride MgCl Mercuric chloride HgCl Mercury Methyl acetate Methyl alcohol Methyl benzene Methyl ethyl ketone...
- Page 68 Laboratory Centrifuge Sigma 2-16P 11 Appendix - no data 1 resistant 2 practically resistant 3 partially resistant 4 not resistant Medium Formula Sodium bisulphite NaHSO Sodium carbonate Sodium chloride NaCl Sodium hydroxide NaOH Sodium hydroxide NaOH Sodium sulfate Spirits Styrene...
-
Page 69: Ec Declaration Of Conformity
Laboratory Centrifuge Sigma 2-16P 11 Appendix Pos : 216 /100 Sigma/110 BA Z entrifugen Sigma (Proj ekte)/2-16P/110 Anhang/110-0060 Konformitäts erklär ung 2-16P @ 29\m od_1405321566376_68.docx @ 197113 @ 2 @ 1 11.5 EC declaration of conformity Version 04/2007, Rev. 2.23 of 28/04/2022 • sb 69 / 76 Translation from the original operating manual, part no. - Page 70 Laboratory Centrifuge Sigma 2-16P 11 Appendix Version 04/2007, Rev. 2.23 of 28/04/2022 • sb 70 / 76 Translation from the original operating manual, part no. 0700602...
-
Page 71: Declaration Of Conformity - China Rohs 2
Laboratory Centrifuge Sigma 2-16P 11 Appendix Declaration of conformity – China RoHS 2 11.6 Version 04/2007, Rev. 2.23 of 28/04/2022 • sb 71 / 76 Translation from the original operating manual, part no. 0700602... - Page 72 Laboratory Centrifuge Sigma 2-16P 11 Appendix === Ende der Liste für T extm arke Inhalt === Version 04/2007, Rev. 2.23 of 28/04/2022 • sb 72 / 76 Translation from the original operating manual, part no. 0700602...
-
Page 73: 12 Index
Laboratory Centrifuge Sigma 2-16P Index 12 Index Centrifuges - definition ..........9 Acceleration time CE-Zeichen gemäß Richtlinie 2006/42/EG . 15 - see also the softstart and softstop function Changes in colour ........53 ............40 Changes in structure ........53 Accessories, cleaning and care .... - Page 74 Laboratory Centrifuge Sigma 2-16P Index Density ..........12, 22 Imbalance error .......... 46 Different service life of rotors and accessories Imbalance monitoring system ....24 ............23, 63 Importance of the operating manual ..... 9 Dimensions ..........26 Important information ......... 16 Direct hazard to the life and health .....
- Page 75 Laboratory Centrifuge Sigma 2-16P Index Measures in the event of hazards and accidents ..........25 Radioactive substances ....... 21, 48 Mechanical safety ........20 Radius ............14 Microhaematocrit rotor, cleaning and care . 50 RCF ............39 Mode of operation ........13 Relative centrifugal force (RCF) ...
- Page 76 Laboratory Centrifuge Sigma 2-16P Index Short run ............ 38 Table of rotors and accessories with a different service life ......23, 63 Softstart and softstop function ....40 Technical data ........... 58 Solvents ......... 22, 48, 49 Technical documentation ......59 Sound signal (buzzer) ........
