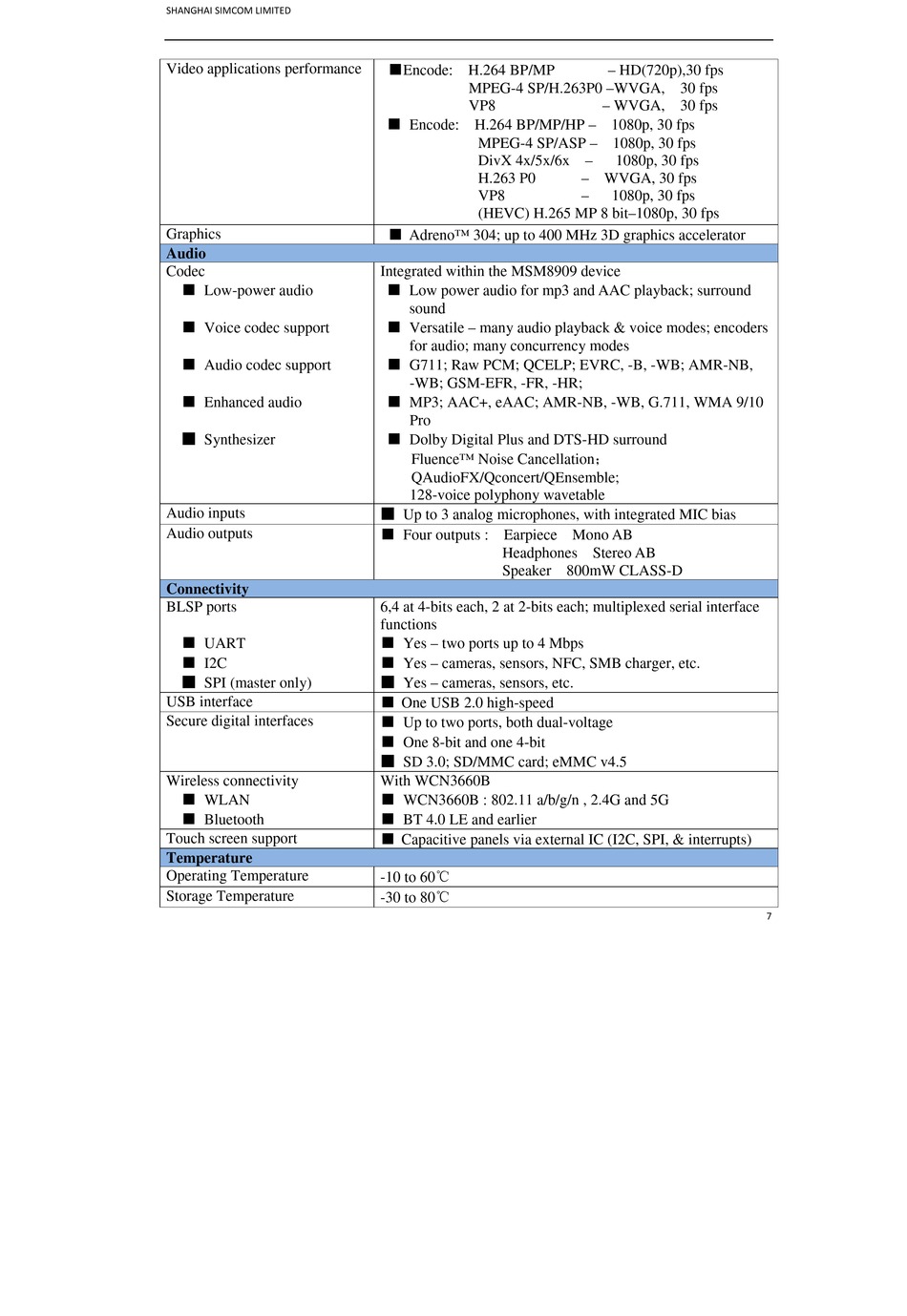

SimCom SIMT 1502 Manual page 7

SHANGHAI SIMCOM LIMITED
Video applications performance
Graphics
Audio
Codec
■ Low-power audio
■ Voice codec support

■ Audio codec support
■ Enhanced audio
■ Synthesizer
Audio inputs
Audio outputs
Connectivity
BLSP ports
■ UART
■ I2C
■ SPI (master only)
USB interface
Secure digital interfaces
Wireless connectivity
■ WLAN
■ Bluetooth
Touch screen support
Temperature
Operating Temperature
Storage Temperature
■Encode: H.264 BP/MP
MPEG-4 SP/H.263P0 –WVGA, 30 fps
VP8
■ Encode: H.264 BP/MP/HP – 1080p, 30 fps
MPEG-4 SP/ASP – 1080p, 30 fps
DivX 4x/5x/6x –
H.263 P0
VP8
(HEVC) H.265 MP 8 bit–1080p, 30 fps
■ Adreno™ 304; up to 400 MHz 3D graphics accelerator
Integrated within the MSM8909 device
■ Low power audio for mp3 and AAC playback; surround
sound
■ Versatile – many audio playback & voice modes; encoders
for audio; many concurrency modes
■ G711; Raw PCM; QCELP; EVRC, -B, -WB; AMR-NB,
-WB; GSM-EFR, -FR, -HR;
■ MP3; AAC+, eAAC; AMR-NB, -WB, G.711, WMA 9/10
Pro
■ Dolby Digital Plus and DTS-HD surround
Fluence™ Noise Cancellation；
QAudioFX/Qconcert/QEnsemble;
128-voice polyphony wavetable
■ Up to 3 analog microphones, with integrated MIC bias
■ Four outputs : Earpiece Mono AB
Headphones Stereo AB
Speaker 800mW CLASS-D
6,4 at 4-bits each, 2 at 2-bits each; multiplexed serial interface
functions
■ Yes – two ports up to 4 Mbps
■ Yes – cameras, sensors, NFC, SMB charger, etc.
■ Yes – cameras, sensors, etc.
■ One USB 2.0 high-speed
■ Up to two ports, both dual-voltage
■ One 8-bit and one 4-bit
■ SD 3.0; SD/MMC card; eMMC v4.5
With WCN3660B
■ WCN3660B : 802.11 a/b/g/n , 2.4G and 5G
■ BT 4.0 LE and earlier
■ Capacitive panels via external IC (I2C, SPI, & interrupts)
-10 to 60℃
-30 to 80℃
– HD(720p),30 fps
– WVGA, 30 fps
1080p, 30 fps
– WVGA, 30 fps
– 1080p, 30 fps
7
