5.3 System BTB connector specifications
The SIMT1502 have a BTB connector In order to more GPIO interface
5.3.1 BTB connector
The BTB connector is 30-pin card edge type connector. Detailed dimensions should be obtained
from the connector manufacturer. Figure5-4 shows the BTB connector. We use AXE530127 as
socket and AXE630127 as header.

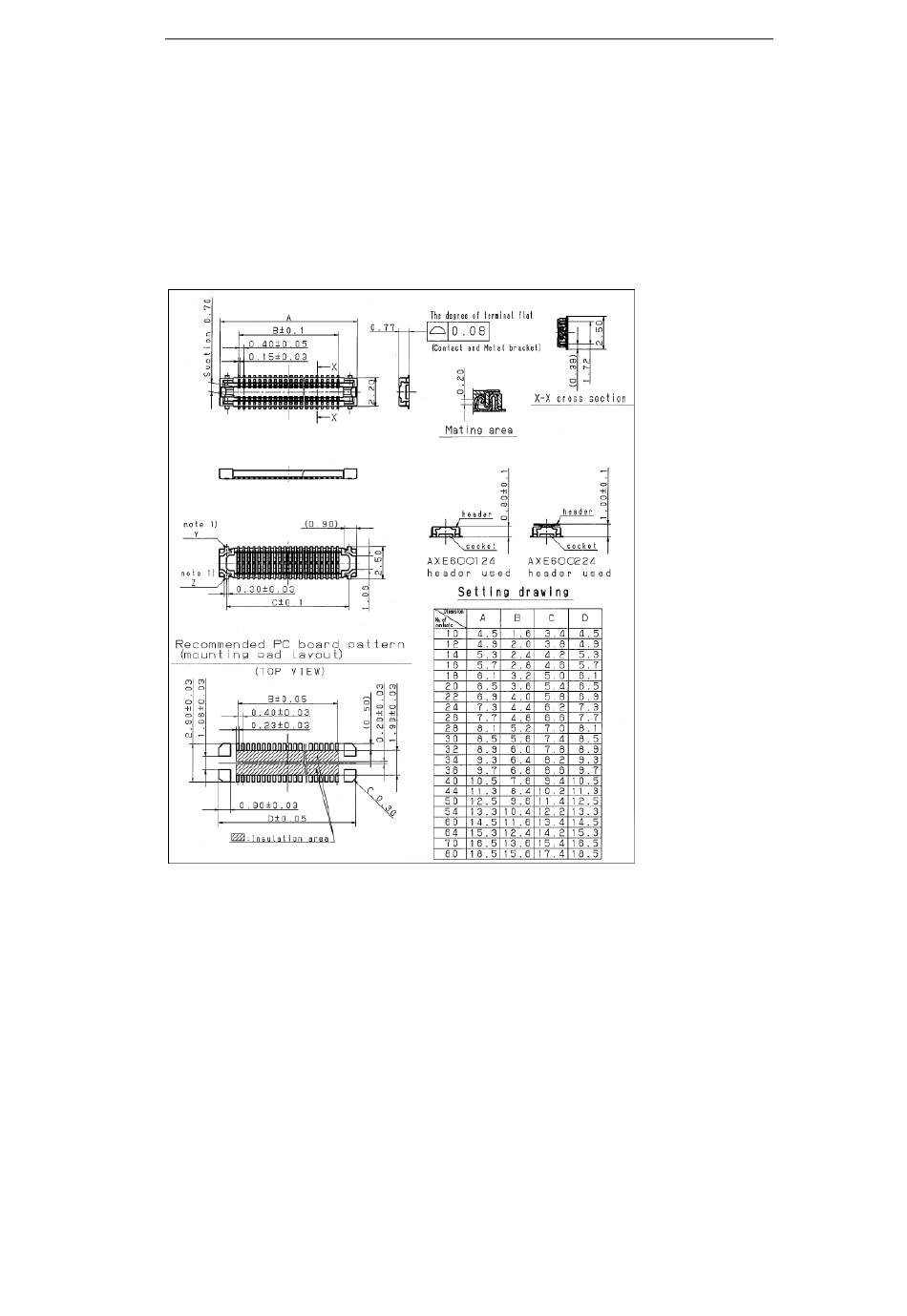

Figure5-4 BTB connector
33
