SimCom SIMT 1502 Manual page 23

SHANGHAI SIMCOM LIMITED
MIPI_CSI1_CLK_P
MIPI_CSI1_CLK_N
CAM_PWDN
CAM_I2C_SDA
CAM_I2C_SCL
CAM1_RST_N
CAM1_STANDBY_N
MIPI_CSI0_LN1_N
MIPI_CSI0_LN1_P
MIPI_CSI0_LN2_P
MIPI_CSI0_LN2_N
MIPI_CSI0_CLK_N
MIPI_CSI0_CLK_P
CAM_MCLK0

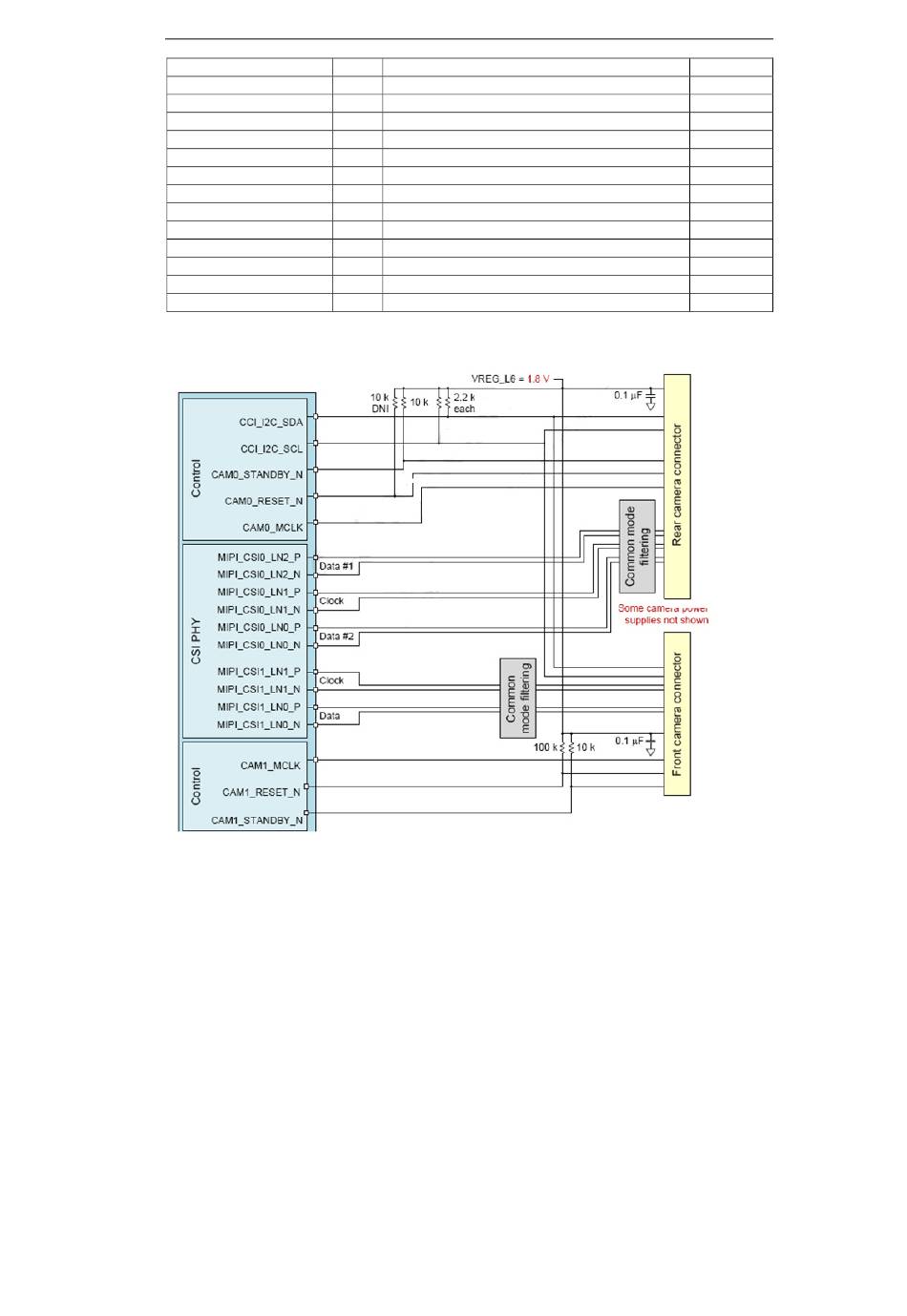

Figure4-3 CSI application diagram
Normally, camera need 2.85V and 1.8V voltage, we can use external LDO to replace
VREG_L6_1P8 and VERG_L17_2P85.At the same time, if the rear camera have AF
function, another external LDO is necessary.
7 MIPI camera serial interface 1 clock – positive
8 MIPI camera serial interface 1 clock – negative
121 Camera0 PWDN
63 Camera I2C,SDA
64 Camera I2C,SCL
112 Camera 1 (rear camera) reset
113 Camera 1 (rear camera) standby
115 MIPI camera serial interface 0 clock – negative
116 MIPI camera serial interface 0 clock – positive
117 MIPI camera serial interface 0 lane 2 – positive
118 MIPI camera serial interface 0 lane 2 – negative
119 MIPI camera serial interface 0 clock – negative
120 MIPI camera serial interface 0 clock – positive
122 Camera1 master clock 0
AI
AI
DO
B
DO
DO
DO
AI,AO
AI,AO
AI,AO
AI,AO
AI
AI
DO
23
