SHANGHAI SIMCOM LIMITED
5.2.2 SIMT1502 PCB details

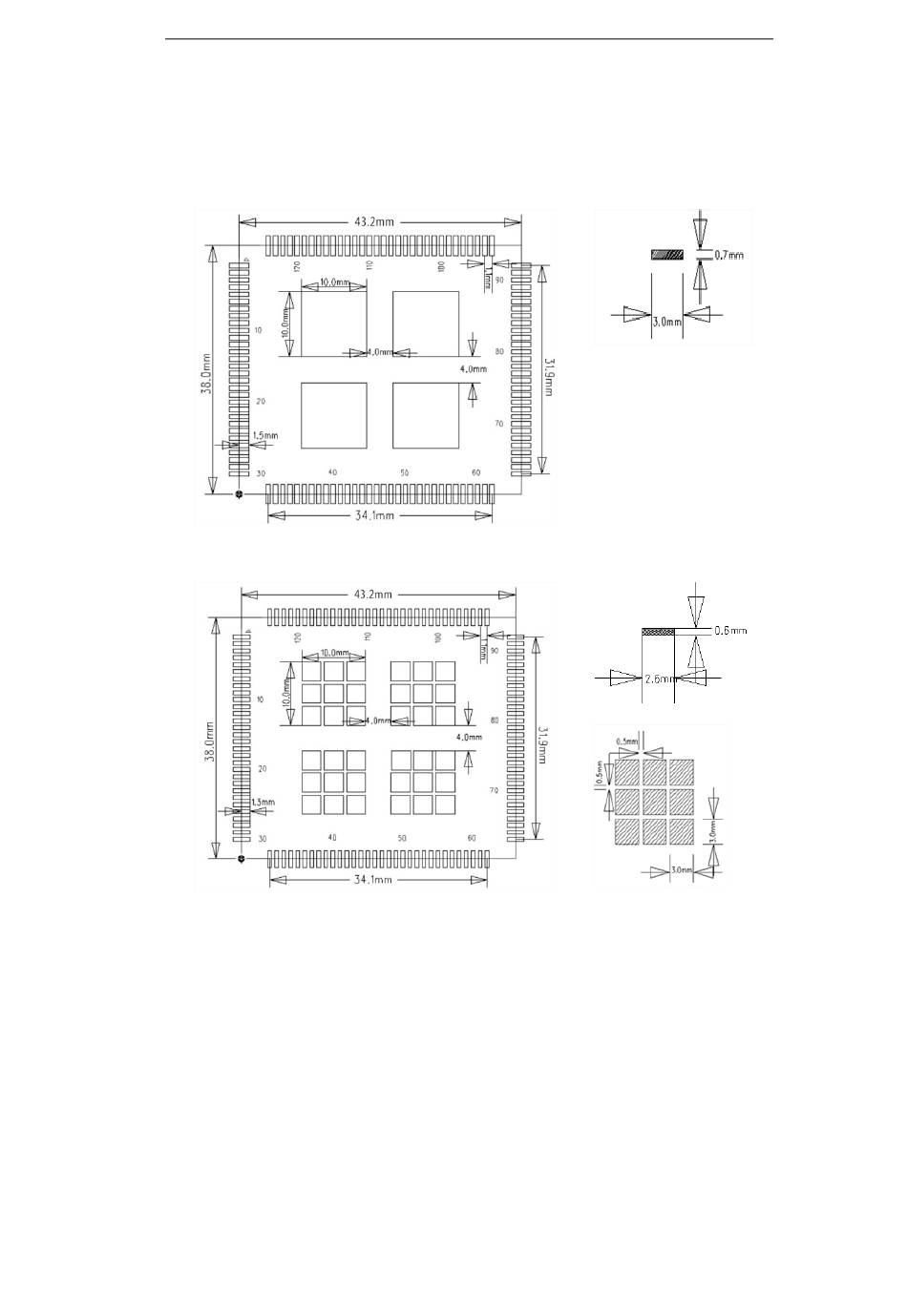

The following figures (Figure5-2) provide the printed circuit board (PCB) details required to
fabricate the PCB. The PCB for this application is expected to be 1.2 mm thick. The steel net
thickness is 0.12mm (Figure5-3).
Figure5-2 SIMT1502 Pads
The dimension tolerance is ± 0.005 mm (±0.2mil).
Figure5-3 SIMT1502 Steel net
The dimension tolerance is ± 0.005 mm (±0.2mil).
32
